KeyWest Technology MXB-AV Manual page 16

MediaXtreme MediaZone

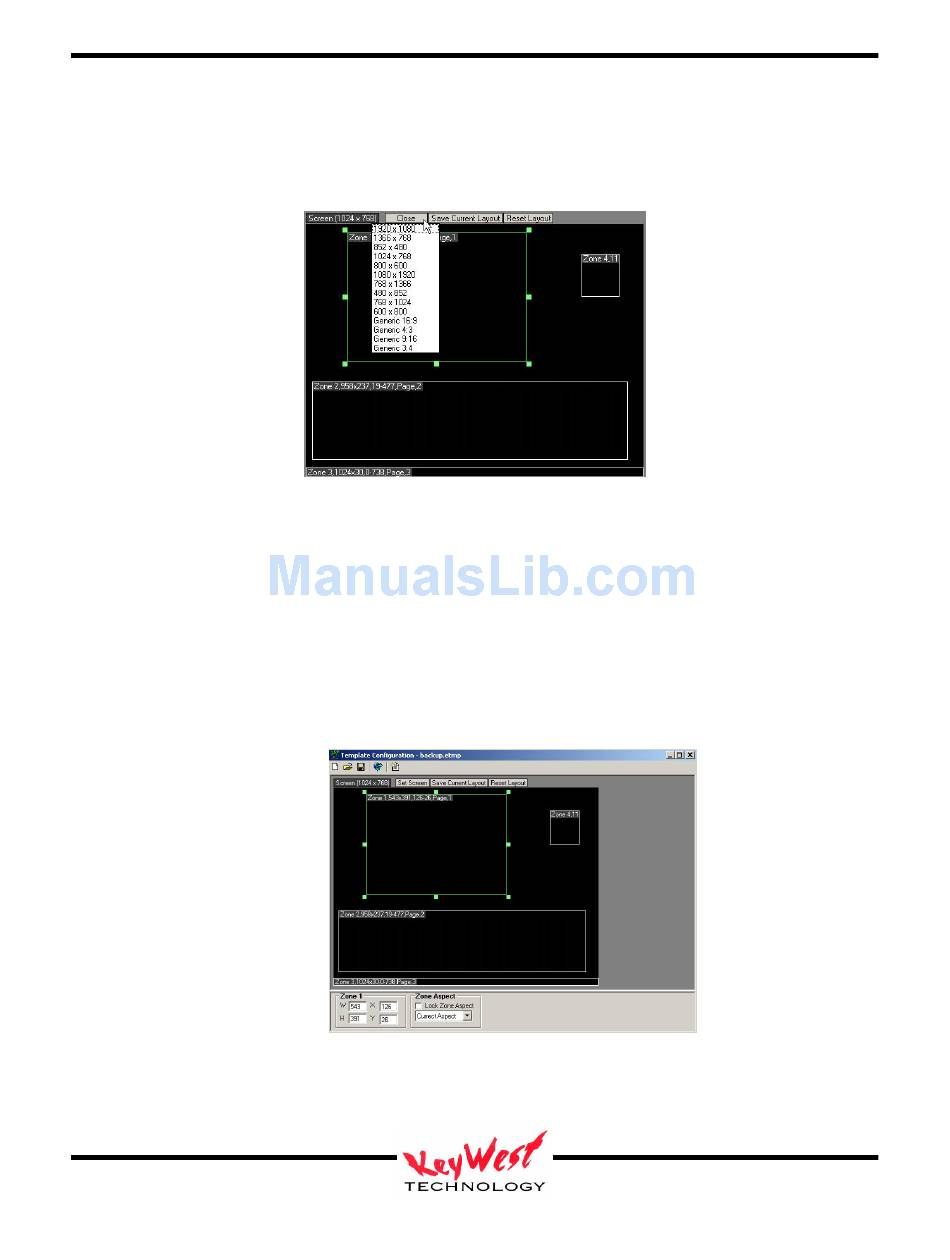

The first step is to select the target screen aspect ration or resolution. The most common sizes
are available in the Screen Size drip down box. If in doubt of true resolution, simply select a
generic aspect ratio.
Any content dragged into any zone will automatically be resized to fill the zone. This eliminates
the need to manually adjust media to fit the screen. Individual zones should then be setup with
the optimum and desired screen look in mind and content should be developed to maintain
appear when used within a particular zone dimension.
The user may adjust each zone by using cursor handles. The handles allow for movement as
well as resizing. Zone size and position data is reflected in the upper left data tab in each zone.
Zone parameters may be manually entered into a dialogue box accessed by clicking on the zone
information tab.
