MediaXtreme
Set the COM PORT to the actual MX port connected to the Switcher.
Next, set the input desired; set the start and end dates, valid days of the week, and the time for
the triggered event.
Once set, click OK to program.
ADD MX INTERNAL SWITCHER EVENT
The MX system has an optional four input one output internal audio and video switcher. If your
player is so equipped, you can program switcher events through the Scheduler

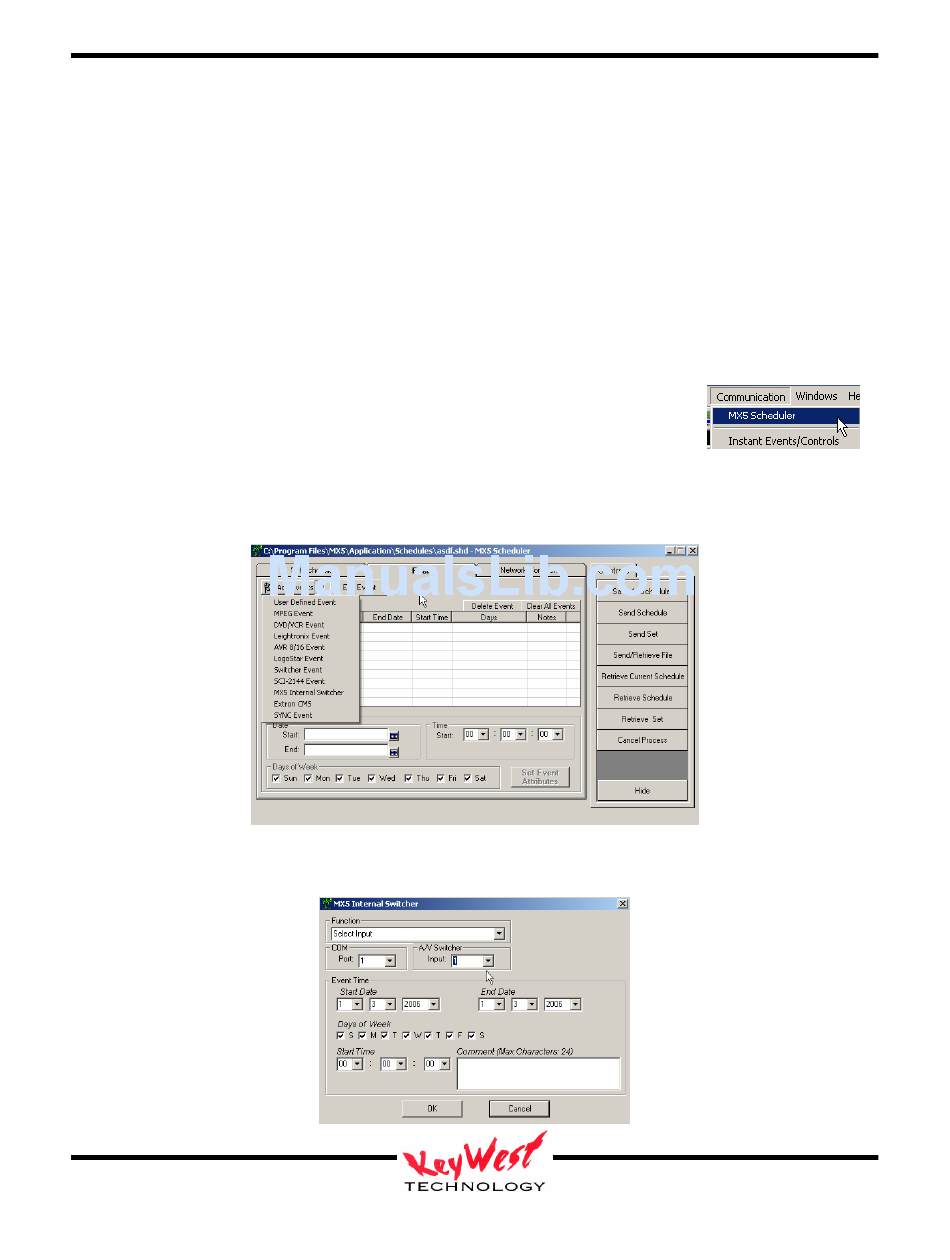

To add an INTERNAL SWITCHER EVENT to your schedule, click
Communications and then MX Scheduler.
Click the EVENT tab and the ADD EVENT drop-down.
Select MX INTERNAL SWITCHER.
