Remember, the system functions as independent layers and zones. The BACKGROUND is
always the base layer (the bottom layer). The remaining four columns can have their layer
assignments changed at will.

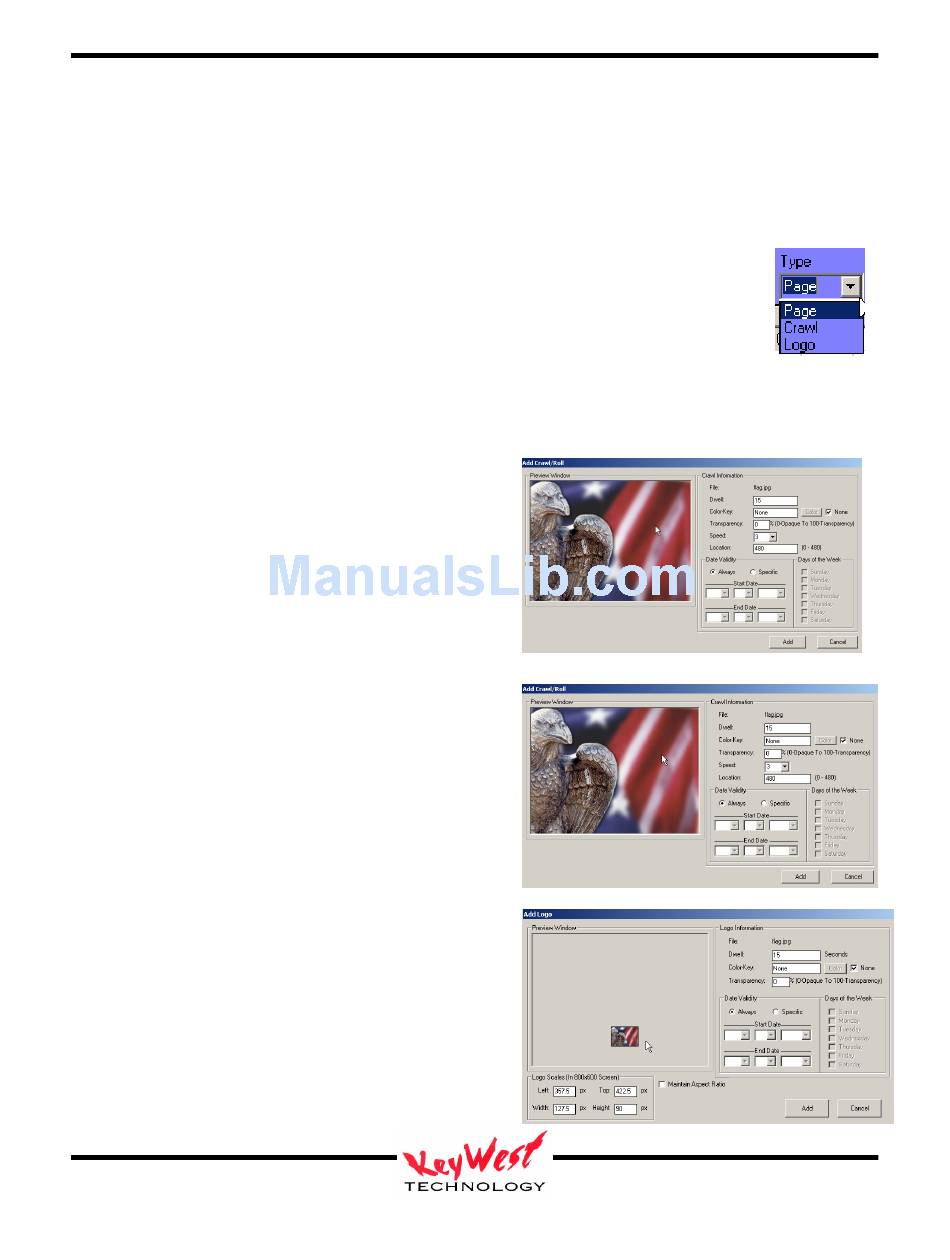

Zone Type (Page, Crawl, Roll, or Logo)
The last thing to set for each column is the type of graphic element. Each of the
three choices has a different reaction when played.
Page
A Page type is adds the graphic to the zone within that column as a full-zone-size image.
Crawl
Selecting Crawl will change what attributes one can
set. Since it is a crawl—it's going to move, and
there are settings to be made for each aspect of that
movement (speed, direction, etc...)
Crawl will be covered more in-depth later in this
manual.
Roll
Selecting Roll will change what attributes one can
set for your graphic. Since it is a roll—it's going to
move vertically--and there are settings to be made
for each aspect of that movement (speed, direction,
etc...)
Rolls will be covered more in-depth later in the
tutorial.
Logo
As with crawls, attributes and settings change.
Since a logo is usually a branding mark over all
other graphics and video, they have special
attributes such as size and position.
Logo will be covered more in-depth later in this
manual.
