KeyWest Technology MXB-AV Manual page 65

MediaXtreme MediaZone
Devices controlled by these units include tape decks and laser discs. Later Leightronix devices
are not supported because of a decision by Leightronix to no longer provide control protocol.
Keywest Technology has replaced the Leightronix device with the AVR-8 switcher and device
controller. This section of the manual is purely for customers who already own the original
Leightronix devices and wish to continue using them.

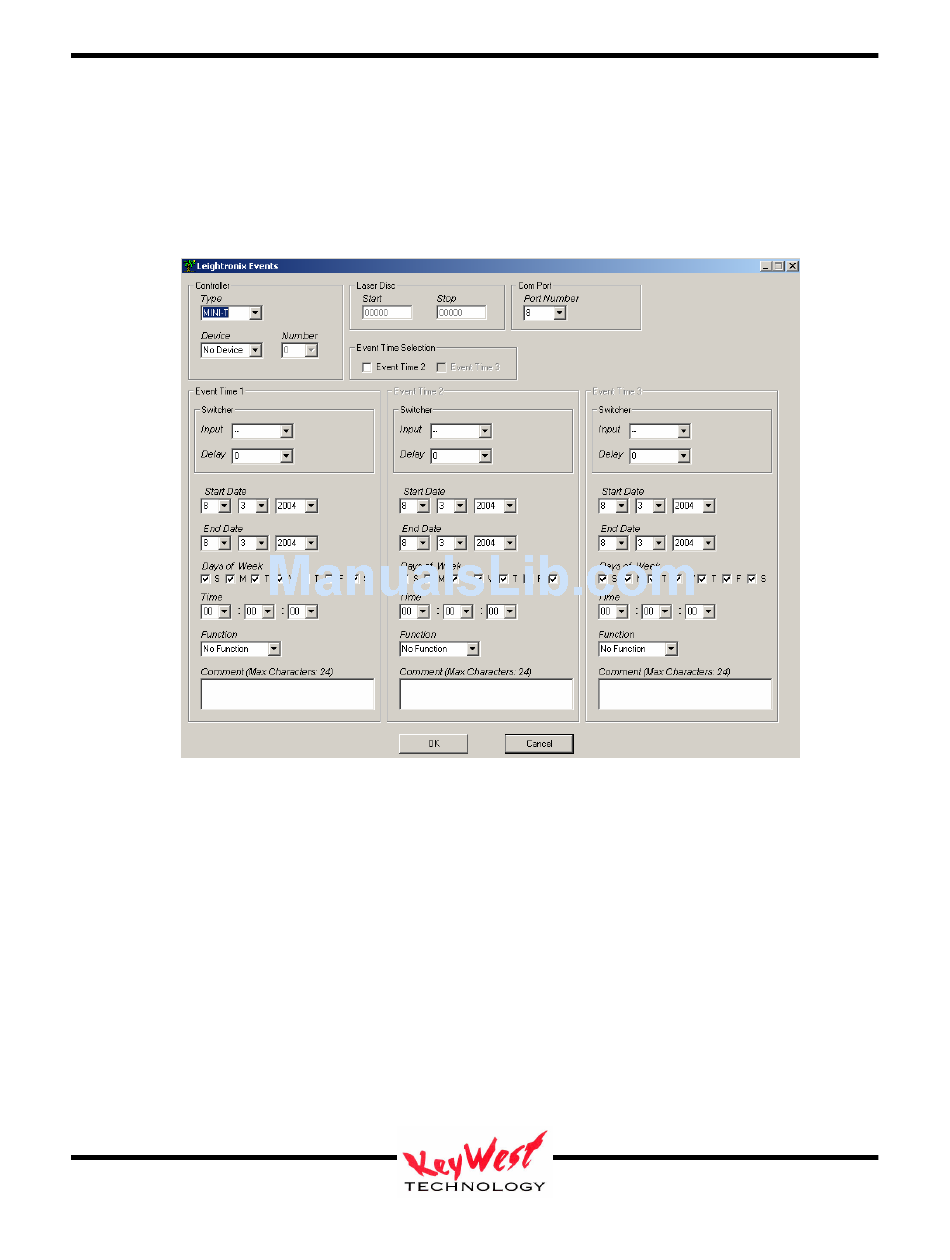

You can program 3 Leightronix events simultaneously with this window. This allows you to
program a Play, Stop and Rewind sequence on one screen. Select the controller type being used
from the Type drop down menu in the Controller area.
Select the device that will be controlled from the Device drop down menu in the Controller area.
If a switcher event is being programmed, select No Device and go on to the discussion about
switcher events (Error! Reference source not found.).
Choices for the MINI-T include:
No Device (selected when switcher events will be programmed)
Tape Deck (which deck will be specified next)
All Decks (indicating all decks controlled by the system)
Laser Disc (which disc will be specified next)
Keywest Technology
65
th
14563 W. 96 Terrace
Lenexa, Kansas 66215
23 Mar 2009
800.331.2019
Change 06
www.keywesttechnology.com
