MediaXtreme MediaZone

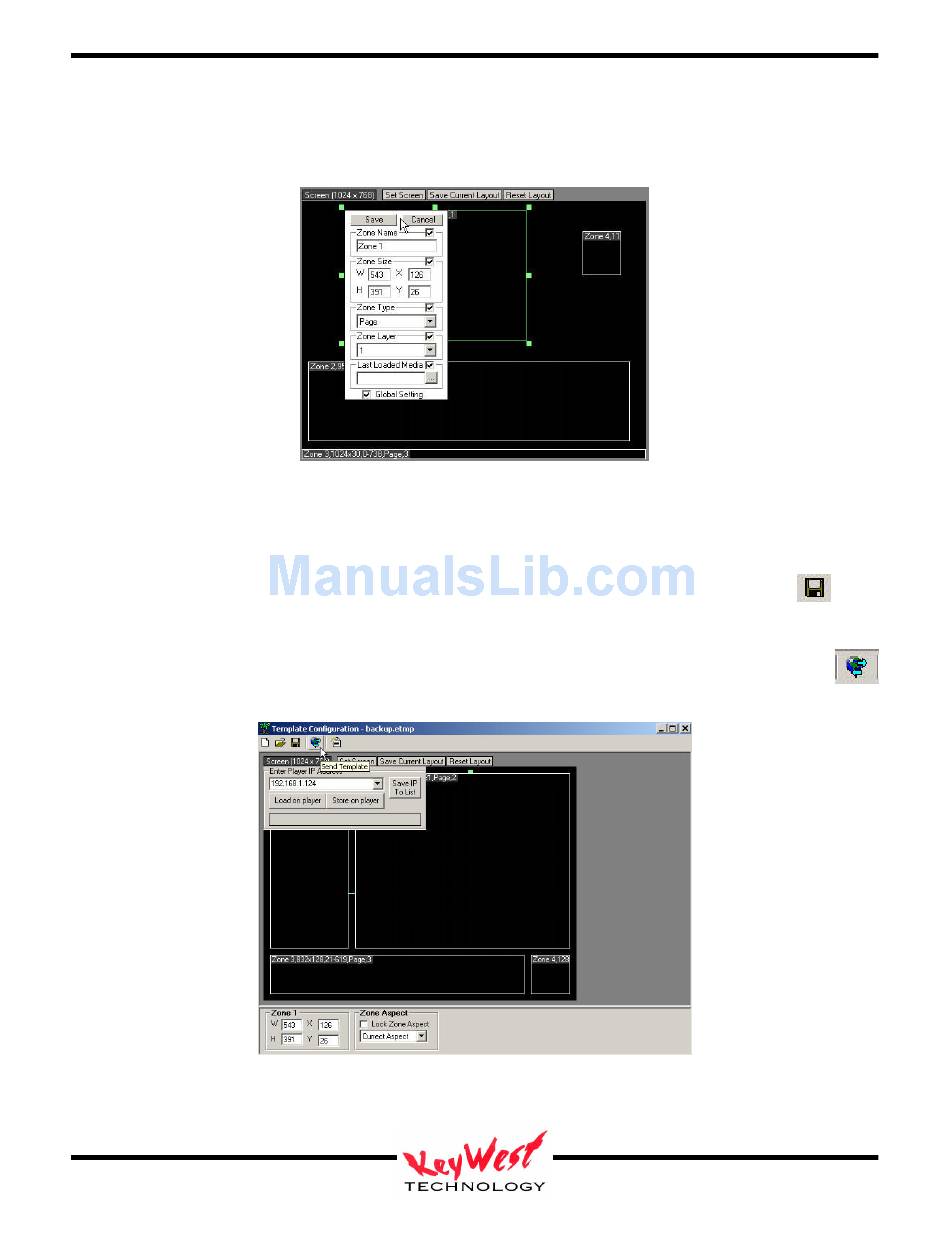

Zone parameters may be manually entered into a dialogue box accessed by clicking on the zone
information tab.
Adjustments are implemented when SAVE is clicked, making for very simple resolution and
layout configuration. Using the proper settings ensures the proper alignment once the data
reaches the player (and should match the settings in the player).
Once the zones are configured, saving the template layout using the save button is
required.
The final step is to transmit this zone template information to the player in question. To
transmit the template, select the Transmit button, enter the destination IP and send.
Be sure to click SAVE CURRENT LAYOUT to set the local preview window to the current
template for ease of editing.
