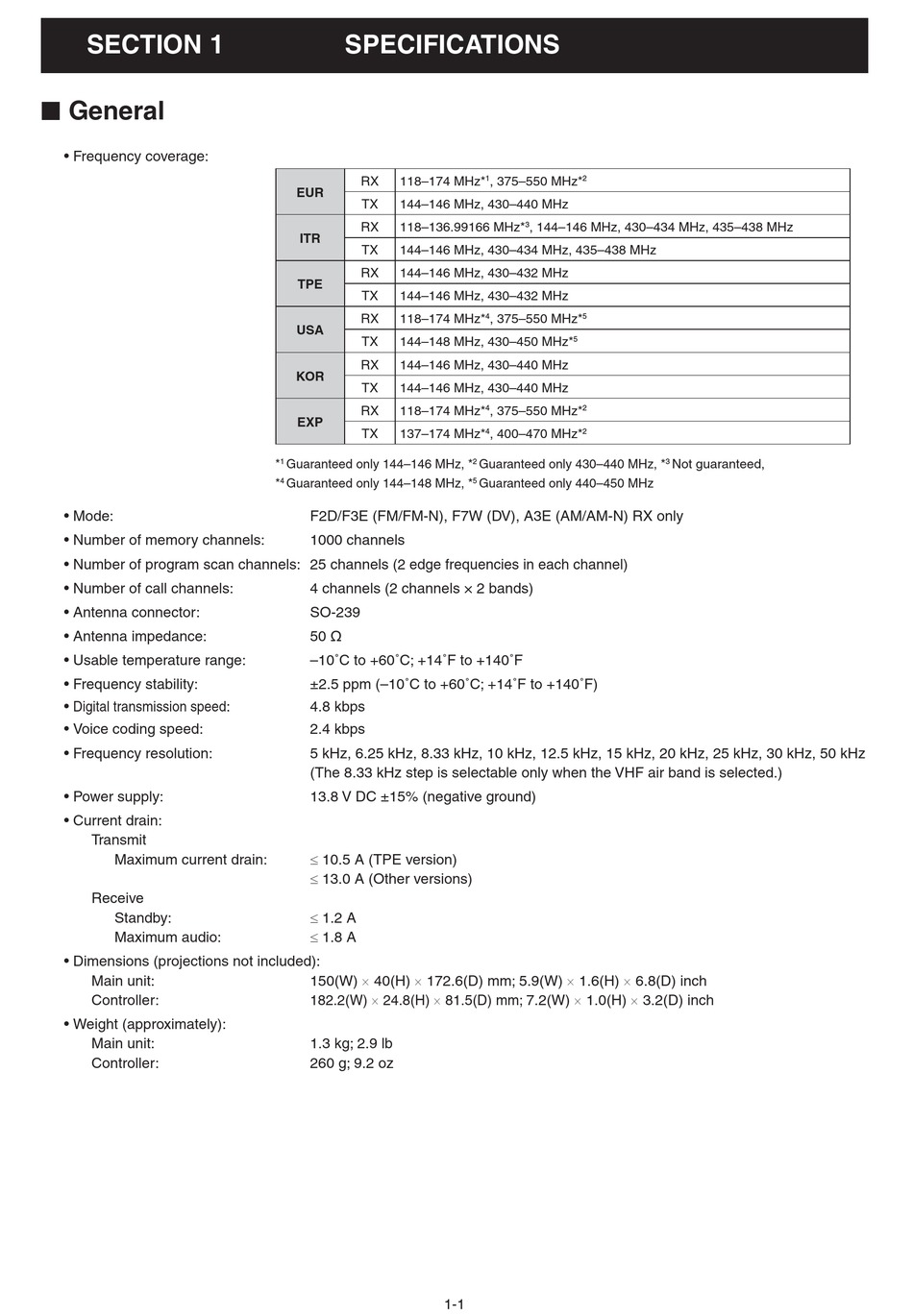

Specifications; General - Icom ID-5100E Service Manual

SECTION 1.
■

General

• Frequency coverage:
• Mode:
• Number of memory channels:
• Number of program scan channels: 25 channels (2 edge frequencies in each channel)
• Number of call channels:
• Antenna connector:
• Antenna impedance:
• Usable temperature range:
• Frequency stability:
• Digital transmission speed:
• Voice coding speed:
• Frequency resolution:
• Power supply:
• Current drain:
Transmit
Maximum current drain:
Receive
Standby:
Maximum audio:
• Dimensions (projections not included):
Main unit:
Controller:
• Weight (approximately):
Main unit:
Controller:

SPECIFICATIONS

RX 118–174 MHz*
EUR
TX 144–146 MHz, 430–440 MHz
RX 118–136.99166 MHz*
ITR
TX 144–146 MHz, 430–434 MHz, 435–438 MHz
RX 144–146 MHz, 430–432 MHz
TPE
TX 144–146 MHz, 430–432 MHz
RX 118–174 MHz*
USA
TX 144–148 MHz, 430–450 MHz*
RX 144–146 MHz, 430–440 MHz
KOR
TX 144–146 MHz, 430–440 MHz
RX 118–174 MHz*
EXP
TX 137–174 MHz*
* 1 Guaranteed only 144–146 MHz, *
4
* Guaranteed only 144–148 MHz, *
F2D/F3E (FM/FM-N), F7W (DV), A3E (AM/AM-N) RX only
1000 channels
4 channels (2 channels × 2 bands)
SO-239
50 ø
–10˚C to +60˚C; +14˚F to +140˚F
±2.5 ppm (–10˚C to +60˚C; +14˚F to +140˚F)
4.8 kbps
2.4 kbps
5 kHz, 6.25 kHz, 8.33 kHz, 10 kHz, 12.5 kHz, 15 kHz, 20 kHz, 25 kHz, 30 kHz, 50 kHz
(The 8.33 kHz step is selectable only when the VHF air band is selected.)
13.8 V DC ±15% (negative ground)
 10.5 A (TPE version)
 13.0 A (Other versions)
 1.2 A
 1.8 A
150(W)  40(H)  172.6(D) mm; 5.9(W)  1.6(H)  6.8(D) inch
182.2(W)  24.8(H)  81.5(D) mm; 7.2(W)  1.0(H)  3.2(D) inch
1.3 kg; 2.9 lb
260 g; 9.2 oz
1-1
1 2
, 375–550 MHz*
3
, 144–146 MHz, 430–434 MHz, 435–438 MHz
4 , 375–550 MHz* 5
5
4 , 375–550 MHz* 2
4 , 400–470 MHz* 2
2 Guaranteed only 430–440 MHz, *
5
Guaranteed only 440–450 MHz
3 Not guaranteed,
