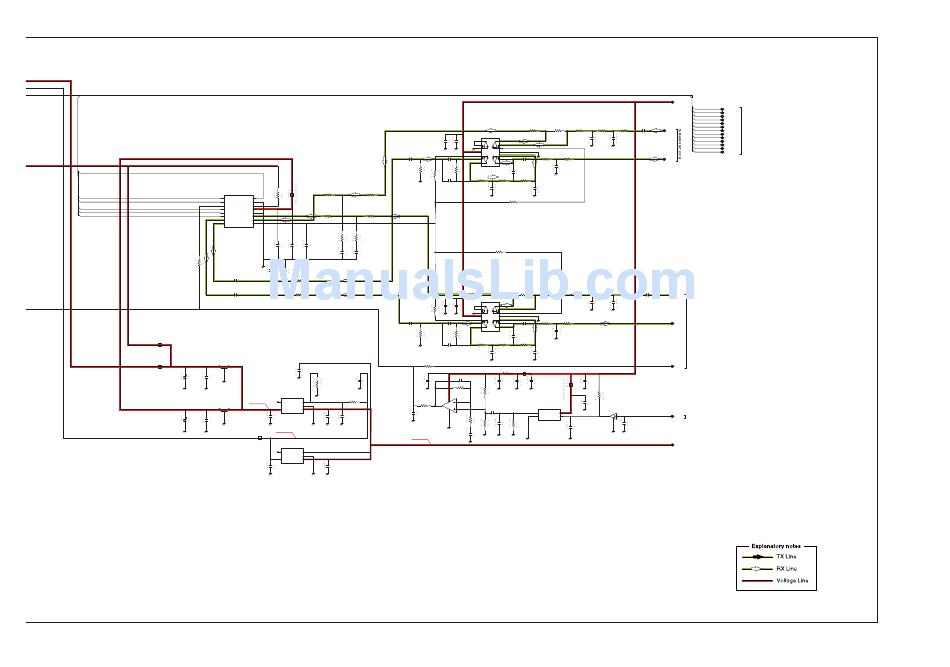

• MAIN UNIT (10/10)
BDR1
BDX1
BFSX1
BCLKX1
PWADN
PWDAN
EP403
MMZ1005Y102CT
NFM18PC104R1C3
EP404
MMZ1005S601CT
NFM18PC104R1C3
R1167 R1173
PCM3008T
DIN DOUT 1k 4.7k
9 8
LRCK DEM1
10 7
SYSCK DEM0
11 6
BCK VCC
12 5
PDAD GND
R1169 R1174
13 4
PDDA VINL
14 3
VOUTL VINR
1k 4.7k
15 2
VOUTR VCOM
16 1
IC402
C1429 R1163
2.2 180
C1428 R1164
2.2 180
C1426
XC6221A332MR
R1171
3.30V NC CE
4 3
C1427 VSS 0
2
VOUT VIN
5 1
IC403
1.41V
EP405
MMZ1005Y102CT
XC6221A142MR
NC CE
4 3
VSS
2
VOUT VIN
5 1
IC404
10-11
R1196 R1207 R1211
0 330k 47k
IC406
1 14
2 13
3 12
4 11
5 10
C1451
C1446 R1203 R1209
6 9 C1472
7 8
0.015 0.015 1k
1 0
LMV324IPW
C1452 R1187 R1192 R1201
0.01
10k 10k 10k
R1197
10k
R1191
10k
R1198 R1208 R1212
0 330k 47k
IC407
1 14
2 13
3 12
4 11
5 10 C1473
R1210
C1447 R1204
C1454 6 9
7 8
0.015 0.015 1k
1 0
LMV324IPW
R1188 R1193 R1202
C1455
0.01 10k 10k 10k
R1180
100
R1199 EP407 MMZ1005S601CT
C1458 47
5P
R1185
IC405 3.3k
5
4
R1177
1
3 X400
0 C1462
3 4
2 OUT VCC
OPA356AIDBVR 2 1
0.1 GND VCONT
CR-914
4.98V
3VS
3VS
DSP_DEMP
DSP_DEMP
DSP_RESET
DSP_RESET
DSP_SO
DSP_SO
DSP_PD
DSP_PD
DSP_CK
DSP_CK
DSP_REMP
R1194 R1205 C1484 DSP_REMP
DSP_SI
R_DDET R_DDET DSP_SI To MAIN UNIT (8/10)
DSP_STB
10k 10k 1 DSP_STB
DSP_REQ
DSP_REQ
SC_SDO
SC_SDO
SC_SDI
SC_SDI
SC_LR
SC_LR
SC_CLK
SC_CLK
R_DAF
R_DAF
R1195 R1206 C1485
L_DDET
L_DDET
10k 10k 1
L_DAF
L_DAF
To MAIN UNIT (3/10)
MCLK
MCLK
Q402
LDTC144EE
DCSFT To MAIN UNIT (8/10)
5VS
*: Refer to the PARTS LIST for the value and name of component.
