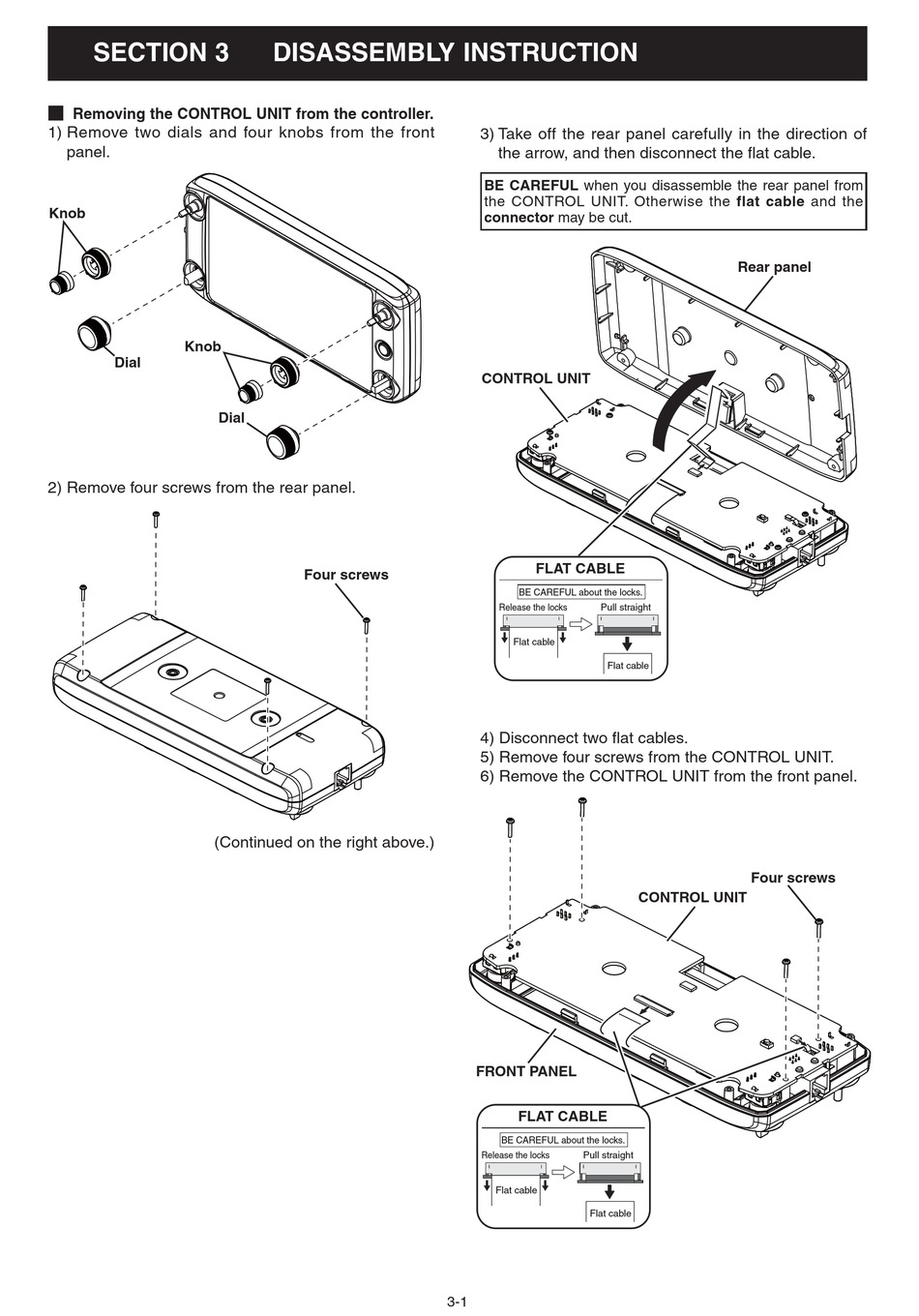

SECTION 3.
M Removing the CONTROL UNIT from the controller.
1) Remove two dials and four knobs from the front
panel.
Knob
Knob
Dial
Dial
2) Remove four screws from the rear panel.
(Continued on the right above.)
DISASSEMBLY INSTRUCTION
Four screws
3) Take off the rear panel carefully in the direction of
the arrow, and then disconnect the fl at cable.
BE CAREFUL when you disassemble the rear panel from
the CONTROL UNIT. Otherwise the flat cable and the
connector may be cut.
CONTROL UNIT
FLAT CABLE
BE CAREFUL about the locks.
Release the locks
Pull straight
Flat cable
flat cable
Flat cable
4) Disconnect two fl at cables.
5) Remove four screws from the CONTROL UNIT.
6) Remove the CONTROL UNIT from the front panel.
FRONT PANEL
FLAT CABLE
BE CAREFUL about the locks.
Release the locks
Pull straight
Flat cable
flat cable
Flat cable
3-1
Rear panel
Four screws
CONTROL UNIT
Flat cable
