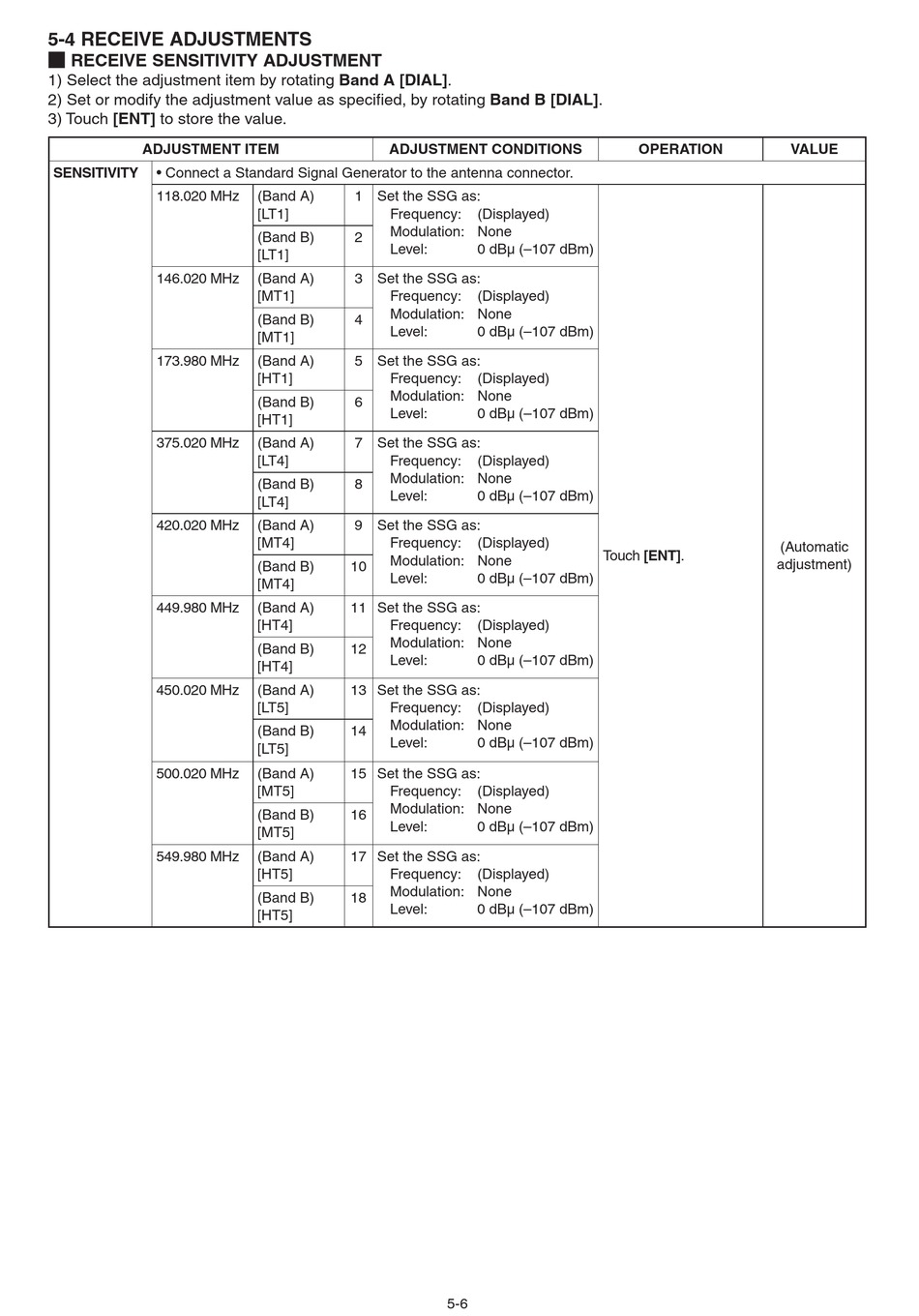

5-4 RECEIVE ADJUSTMENTS

M RECEIVE SENSITIVITY ADJUSTMENT
1) Select the adjustment item by rotating Band A [DIAL].
2) Set or modify the adjustment value as specifi ed, by rotating Band B [DIAL].
3) Touch [ENT] to store the value.
ADJUSTMENT ITEM
SENSITIVITY • Connect a Standard Signal Generator to the antenna connector.
118.020 MHz
146.020 MHz
173.980 MHz
375.020 MHz
420.020 MHz
449.980 MHz
450.020 MHz
500.020 MHz
549.980 MHz
ADJUSTMENT CONDITIONS
(Band A) 1 Set the SSG as:
[LT1] Frequency:
Modulation: None
(Band B) 2
Level:
[LT1]
(Band A) 3 Set the SSG as:
[MT1] Frequency:
Modulation: None
(Band B) 4
Level:
[MT1]
(Band A) 5 Set the SSG as:
[HT1] Frequency:
Modulation: None
(Band B) 6
Level:
[HT1]
(Band A) 7 Set the SSG as:
[LT4] Frequency:
Modulation: None
(Band B) 8
Level:
[LT4]
(Band A) 9 Set the SSG as:
[MT4] Frequency:
Modulation: None
(Band B) 10
Level:
[MT4]
(Band A) 11 Set the SSG as:
[HT4] Frequency:
Modulation: None
(Band B) 12
Level:
[HT4]
(Band A) 13 Set the SSG as:
[LT5] Frequency:
Modulation: None
(Band B) 14
Level:
[LT5]
(Band A) 15 Set the SSG as:
[MT5] Frequency:
Modulation: None
(Band B) 16
Level:
[MT5]
(Band A) 17 Set the SSG as:
[HT5] Frequency:
Modulation: None
(Band B) 18
Level:
[HT5]
(Displayed)
0 dBµ (–107 dBm)
(Displayed)
0 dBµ (–107 dBm)
(Displayed)
0 dBµ (–107 dBm)
(Displayed)
0 dBµ (–107 dBm)
(Displayed)
Touch [ENT].
0 dBµ (–107 dBm)
(Displayed)
0 dBµ (–107 dBm)
(Displayed)
0 dBµ (–107 dBm)
(Displayed)
0 dBµ (–107 dBm)
(Displayed)
0 dBµ (–107 dBm)
5-6
OPERATION VALUE
(Automatic
adjustment)
