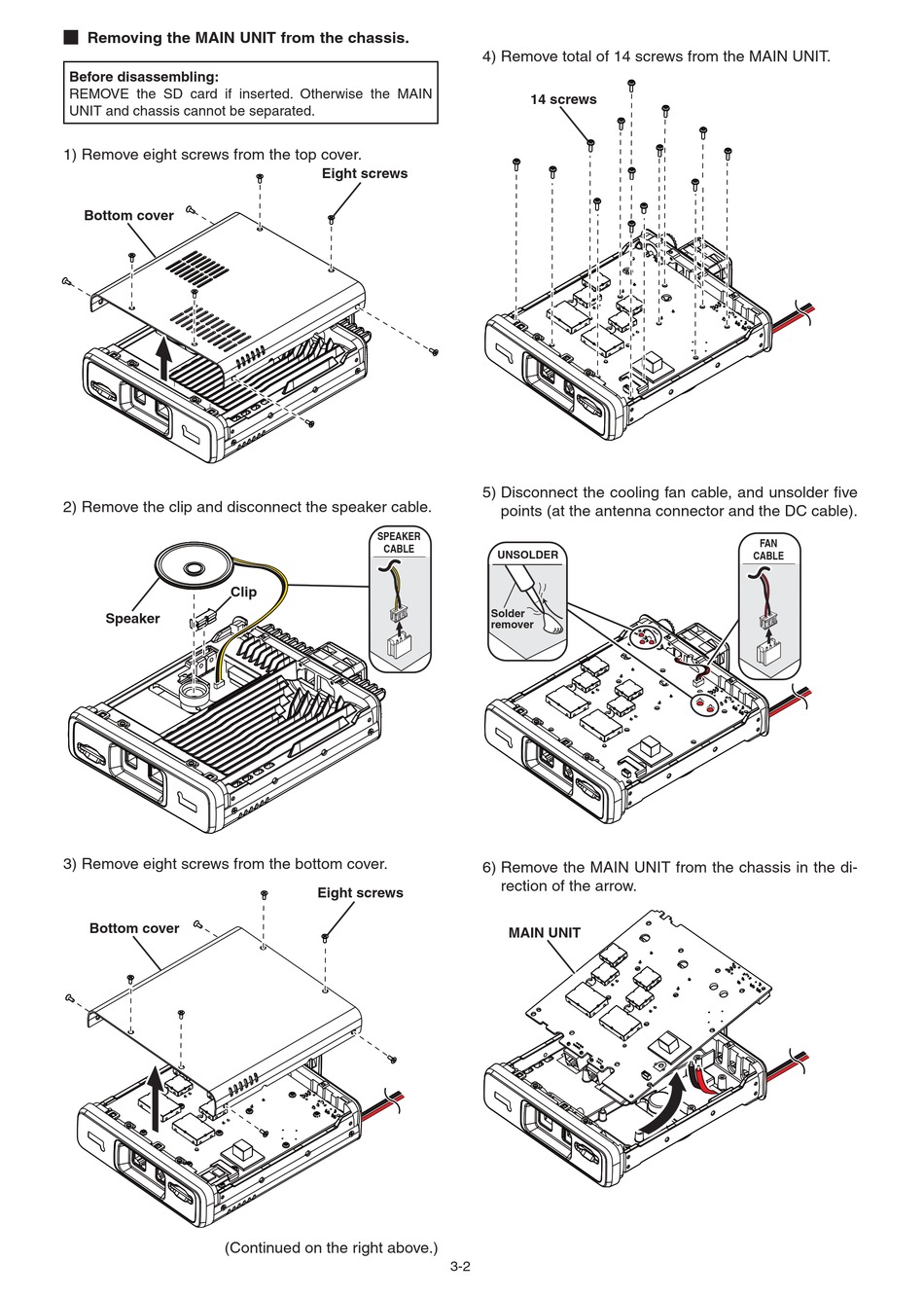

M Removing the MAIN UNIT from the chassis.
Before disassembling:
REMOVE the SD card if inserted. Otherwise the MAIN
UNIT and chassis cannot be separated.
1) Remove eight screws from the top cover.
Bottom cover
2) Remove the clip and disconnect the speaker cable.
Clip
Speaker
3) Remove eight screws from the bottom cover.
Bottom cover
(Continued on the right above.)
4) Remove total of 14 screws from the MAIN UNIT.
Eight screws
5) Disconnect the cooling fan cable, and unsolder fi ve
SPEAKER
CABLE
6) Remove the MAIN UNIT from the chassis in the di-
Eight screws
3-2
14 screws
points (at the antenna connector and the DC cable).
UNSOLDER
Solder
remover
rection of the arrow.
MAIN UNIT
FAN
CABLE
