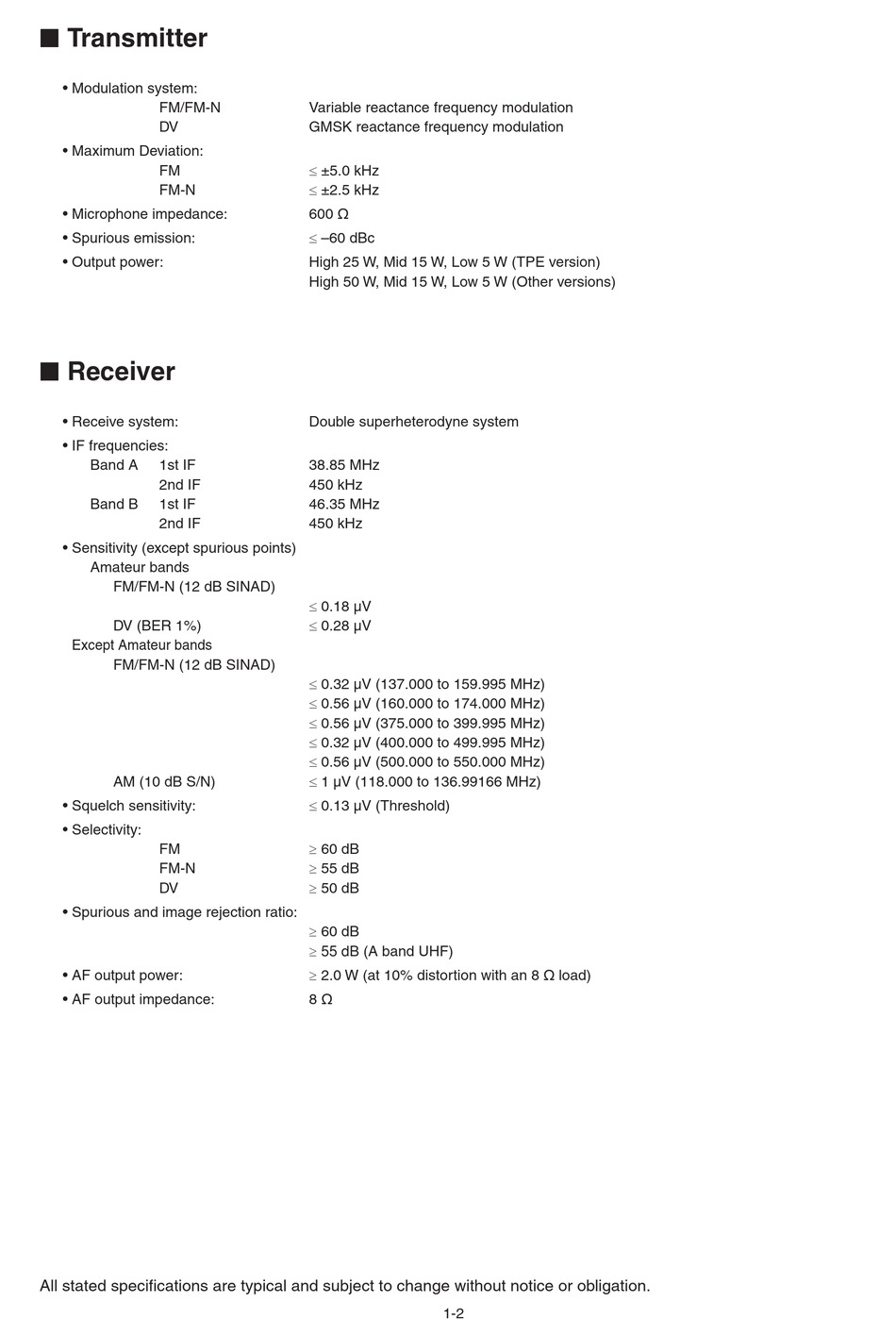

Transmitter; Receiver - Icom ID-5100E Service Manual

■

Transmitter

• Modulation system:
FM/FM-N
DV
• Maximum Deviation:
FM
FM-N
• Microphone impedance:
• Spurious emission:
• Output power:
■

Receiver

• Receive system:
• IF frequencies:
Band A 1st IF
2nd IF
Band B 1st IF
2nd IF
• Sensitivity (except spurious points)
Amateur bands
FM/FM-N (12 dB SINAD)
DV (BER 1%)
Except Amateur bands
FM/FM-N (12 dB SINAD)
AM (10 dB S/N)
• Squelch sensitivity:
• Selectivity:
FM
FM-N
DV
• Spurious and image rejection ratio:
• AF output power:
• AF output impedance:
All stated specifi cations are typical and subject to change without notice or obligation.
Variable reactance frequency modulation
GMSK reactance frequency modulation
 ±5.0 kHz
 ±2.5 kHz
600 ø
 –60 dBc
High 25 W, Mid 15 W, Low 5 W (TPE version)
High 50 W, Mid 15 W, Low 5 W (Other versions)
Double superheterodyne system
38.85 MHz
450 kHz
46.35 MHz
450 kHz
 0.18 µV
 0.28 µV
 0.32 µV (137.000 to 159.995 MHz)
 0.56 µV (160.000 to 174.000 MHz)
 0.56 µV (375.000 to 399.995 MHz)
 0.32 µV (400.000 to 499.995 MHz)
 0.56 µV (500.000 to 550.000 MHz)
 1 µV (118.000 to 136.99166 MHz)
 0.13 µV (Threshold)
 60 dB
 55 dB
 50 dB
 60 dB
 55 dB (A band UHF)
 2.0 W (at 10% distortion with an 8 ø load)
8 ø
1-2
