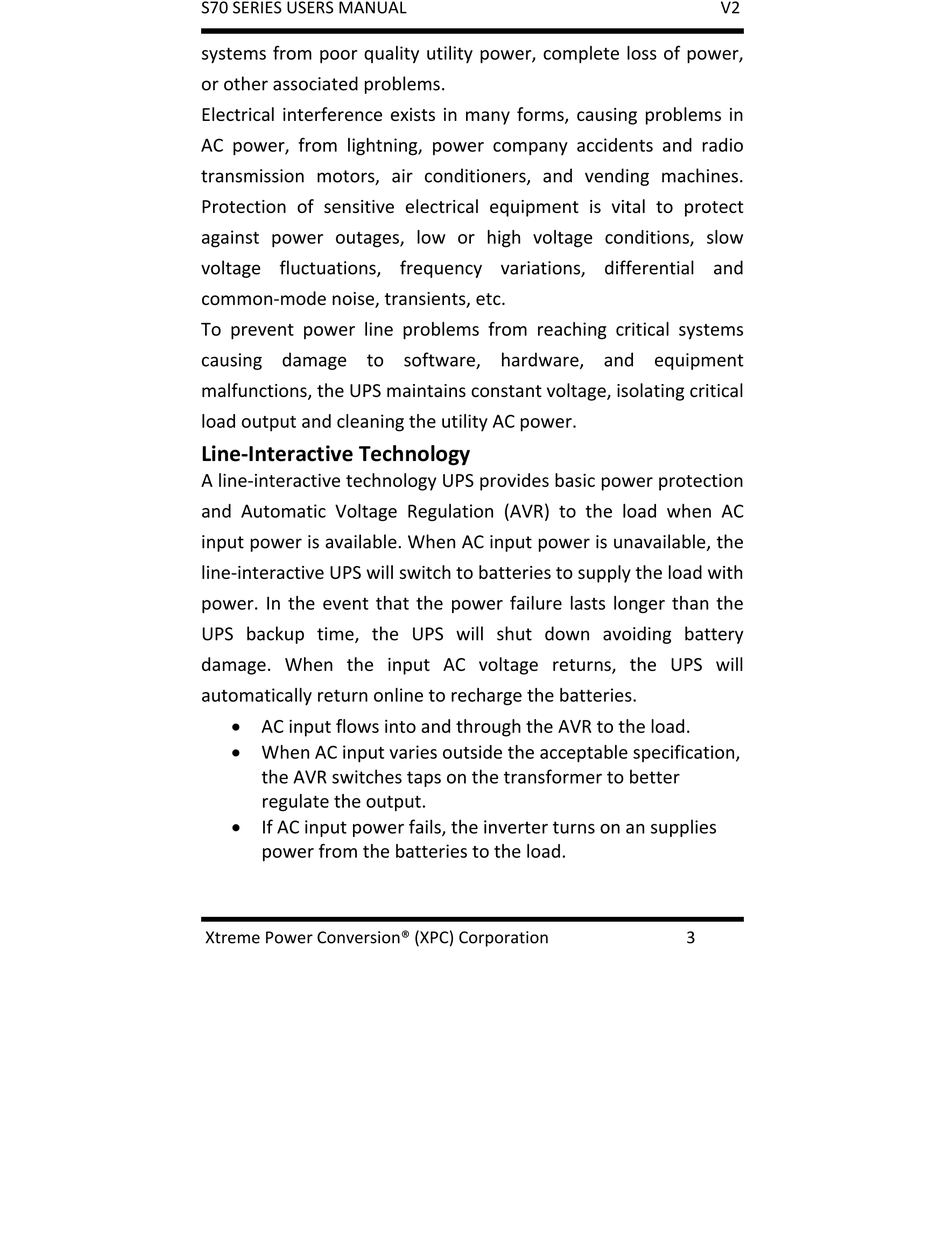

S70 SERIES USERS MANUAL
systems from poor quality utility power, complete loss of power,
or other associated problems.
Electrical  interference  exists  in  many  forms,  causing  problems  in
AC  power,  from  lightning,  power  company  accidents  and  radio
transmission  motors,  air  conditioners,  and  vending  machines.
Protection  of  sensitive  electrical  equipment  is  vital  to  protect
against  power  outages,  low  or  high  voltage  conditions,  slow
voltage  fluctuations,  frequency  variations,  differential  and
common‐mode noise, transients, etc.
To  prevent  power  line  problems  from  reaching  critical  systems
causing  damage  to  software,  hardware,  and  equipment
malfunctions, the UPS maintains constant voltage, isolating critical
load output and cleaning the utility AC power.
Line‐Interactive Technology
A line‐interactive technology UPS provides basic power protection
and  Automatic  Voltage  Regulation  (AVR)  to  the  load  when  AC
input power is available. When AC input power is unavailable, the
line‐interactive UPS will switch to batteries to supply the load with
power.  In  the  event  that  the  power  failure  lasts  longer  than  the
UPS  backup  time,  the  UPS  will  shut  down  avoiding  battery
damage.  When  the  input  AC  voltage  returns,  the  UPS  will
automatically return online to recharge the batteries.
 AC input flows into and through the AVR to the load.
 When AC input varies outside the acceptable specification,
the AVR switches taps on the transformer to better
regulate the output.
 If AC input power fails, the inverter turns on an supplies
power from the batteries to the load.
