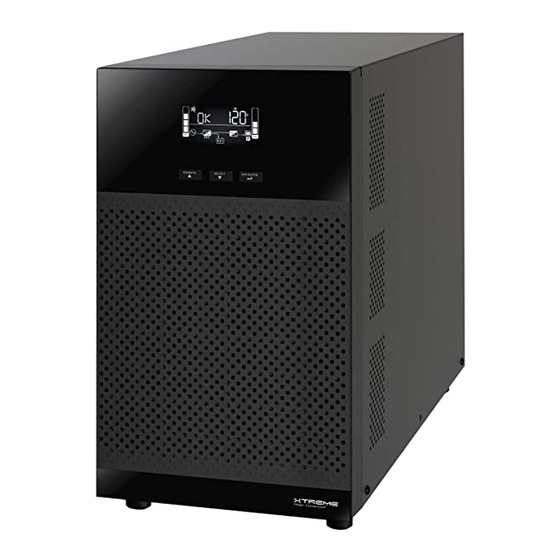

Xtreme Power Conversion 1000VA User & Installation Manual
T91 unity
Hide thumbs
Also See for 1000VA:
- User & installation manual (37 pages) ,
- User manual (20 pages) ,
- User & installation manual (17 pages)
Related Manuals for Xtreme Power Conversion 1000VA
Summary of Contents for Xtreme Power Conversion 1000VA
- Page 1 T91 Unity Online UPS 700VA, 1000VA, 1500VA, 2000VA, 3000VA Models User & Installation Manual www.xpcc.com | © 2017 Xtreme Power Conversion Corporation. All rights reserved. (Rev 3/14/17)
-
Page 2: Table Of Contents
LCD Display Wording Index......................17 UPS Setting............................18 Operating Mode Description......................25 Faults Reference Code........................26 Warning Indicator..........................26 Troubleshooting..................27 Storage and Maintenance................29 Specifications....................30 Shipping List....................30 Obtaining Service..................31 Xtreme Power Conversion Limited Warranty..........32 Xtreme Power Conversion Load Protection Policy........33 Xtreme Power Conversion Corporation Page 2... -
Page 3: Important Safety Warning
These UPS units are extremely heavy. Caution should be taken in moving and positioning equipment. The instructions contained within this safety manual are deemed important and should be closely followed at all times during installation and follow-up maintenance of the UPS and batteries. Xtreme Power Conversion Corporation Page 3... - Page 4 SAFE GROUNDING TERMINAL - Indicates primary safe ground Please do not discard the UPS or the UPS batteries as the UPS may have valve-regulated lead-acid batter- ies. Please recycle batteries appropriately. Xtreme Power Conversion Corporation Page 4...
-
Page 5: Product Description
Uninterruptible Power Supply Introduction The information provided in this manual covers single phase 700VA, 1000VA, 1500VA, 2000VA, and 3000VA un- interruptible power systems, their basic functions, operating procedures, options available and emergency situa- tions. It also includes information on how to ship, store, handle, and install the equipment. Only detailed require- ments of the UPS units are described herein, and installation must be carried out in accordance with this manual. -
Page 6: Transportation
Do not install the UPS system near water or in moist environments. • Do not install the UPS system where it would be exposed to direct sunlight or near heater. • Do not block ventilation holes in the UPS housing. • Xtreme Power Conversion Corporation Page 6... -
Page 7: Installation
In order to fully disconnect the UPS system, first press the OFF/Enter button to disconnect the • mains. Prevent no fluids or other foreign objects from inside of the UPS system. • Xtreme Power Conversion Corporation Page 7... -
Page 8: Maintenance, Service And Faults
12 V dc, 7.2 Ah Toplite (Guangzhou) Technology Battery Co Ltd UXW360-12 12 V dc, 7.2 Ah (MH29104) NPW45-12 FR 12 V dc, 7.0 Ah UXW460-12/FR 12 V dc, 7.0 Ah NPW36-12 FR 12 V dc, 7.0 Ah Xtreme Power Conversion Corporation Page 8... - Page 9 • WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Xtreme Power Conversion Corporation Page 9...
-
Page 10: Installation And Setup
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. Rear panel view Tower Models IEC Type 1K/1.5K NEMA Type 1K/1.5K Xtreme Power Conversion Corporation Page 10... - Page 11 It’s equipped with fan for cooling. Therefore, place the UPS in a well ventilated area. It’s required to maintain minimum clearance of 100mm in the front of the UPS and 300mm in the back and two sides of the UPS for heat dissipation and easy maintenance. 5. Connect to External Battery Pack Xtreme Power Conversion Corporation Page 11...
- Page 12 There are two kinds of outputs: programmable outlets and general outlets. Please connect non-critical devices to the programmable outlets and critical devices to the general outlets. During power failure, you may extend the devices. backup time to critical devices by setting shorter backup time for non-critical Xtreme Power Conversion Corporation Page 12...
-
Page 13: Communication Port
Press the ON/Mute button on the front panel for two seconds to power on the UPS. Note: The battery charges fully during the first five hours of normal operation. Do not expect full battery run capability during this initial charge period. Xtreme Power Conversion Corporation Page 13... -
Page 14: Setup The Ups
Button ON/Mute and Select buttons simultaneously for 0.2 seconds to return to the upper menu. If it’s already in top menu, press these two buttons at the same time to exit the setting mode. Xtreme Power Conversion Corporation Page 14... -
Page 15: Lcd Panel
Programmable outlets information Indicates that programmable management outlets are working. Mode operation information Indicates the UPS connects to the mains. Indicates the battery is working. Indicates charging status Indicates the bypass circuit is working. Xtreme Power Conversion Corporation Page 15... -
Page 16: Audible Alarm
Indicates the battery level by 0-24%, 25-49%, 50-74%, and 75-100%. Indicates low battery. Audible Alarm Battery Mode Sounding every 5 seconds Low Battery Sounding every 2 seconds Overload Sounding every second Fault Continuously sounding Bypass Mode Sounding every 10 seconds Xtreme Power Conversion Corporation Page 16... -
Page 17: Lcd Display Wording Index
Estimated autonomy time Running autonomy time Shutdown Battery Low Over Load Over input current Battery No Connect Over Charge Site wiring fault Temperature Charger Battery Fault Bypass Out Range Bypass frequency unstable Battery Replace EEPROM error Xtreme Power Conversion Corporation Page 17... -
Page 18: Ups Setting
127: presents output voltage is 127Vac 02: Frequency Converter enable/disable Interface Settings Parameter 2: Enable or disable converter mode. You may choose the following two options: CF ENA: converter mode enable CF DIS: converter mode disable (Default) Xtreme Power Conversion Corporation Page 18... - Page 19 For 200/208/220/230/240 VAC models, the setting range in parameter 3 is from -7V to -24V of the nominal voltage. (Default: -12V) For 100/110/115/120/127 VAC models, the setting voltage in parameter 3 is from -3V to -12V of the nominal voltage. (Default: -6V) Xtreme Power Conversion Corporation Page 19...
- Page 20 170-220: setting the low voltage point in parameter 3 from 170Vac to 220Vac. (Default: 170Vac) For 100/110/115/120/127 VAC models: 85-115: setting the low voltage point in parameter 3 from 85Vac to 115Vac. (Default: 85Vac) Xtreme Power Conversion Corporation Page 20...
- Page 21 Parameter 2: Set up backup time limits for programmable outlets. 0-999: setting the backup time limits in minutes from 0-999 for program- mable outlets which connect to non-critical devices on battery mode. (Default: 999) Xtreme Power Conversion Corporation Page 21...
- Page 22 Note: Please set the appropriate charger current based on battery ca- pacity used. The recommended charging current is 0.1C~0.3C of battery capacity as following table for reference. Battery capacity(AH) Total charging current (A) 7~20 20~40 40~60 60~80 80~100 100~150 Xtreme Power Conversion Corporation Page 22...
- Page 23 Parameter 2: Set up the display setting for autonomy time EAT: If EAT is selected, it will display the remaining autonomy time. (De- fault) RAT: If RAT is selected, it will show accumulated autonomy time so far. Xtreme Power Conversion Corporation Page 23...
- Page 24 110/120/130/140/150/160: setting the low voltage point in parameter 2. (Default: 110Vac) For 100/110/115/120/127 VAC models: 55/60/65/70/75/80: setting the low voltage point in parameter 2. (Default: 55Vac) 00: Exit setting Interface Settings Exit the setting mode. Xtreme Power Conversion Corporation Page 24...
-
Page 25: Operating Mode Description
Alarm is sounding every 10 seconds. Standby mode UPS is powered off and no output supply power, but still can charge batteries. Fault mode When a fault has occurred, the ERROR icon and the fault code will be displayed. Xtreme Power Conversion Corporation Page 25... -
Page 26: Faults Reference Code
Bypass frequency unstable Sounding every 2 seconds Battery replacement Sounding every 2 seconds EEPROM error Sounding every 2 seconds NOTE: “Site Wiring Fault” function can be enabled/disabled via software. Please check software manual for the details. Xtreme Power Conversion Corporation Page 26... -
Page 27: Troubleshooting
Fault code is shown as 43 and the icon The UPS shut down automati- Remove excess loads from cally because of UPS output and restart it. is lighting on LCD display. Alarm is overload at the UPS continuously sounding. output. Xtreme Power Conversion Corporation Page 27... - Page 28 Fault code is shown as 45 on LCD The charger does not have output Contact your dealer. display. At the same time, alarm is continuously and battery voltage is less than sounding. 10V/PC. Xtreme Power Conversion Corporation Page 28...
-
Page 29: Storage And Maintenance
The life of batteries used in these UPS products is estimated at 3-6 years depending on level of usage and environ- ment. Once the battery is no longer useful and must be replaced, please contact service personnel for assistance. Xtreme Power Conversion Corporation Page 29... -
Page 30: Specifications
Specifications T91-700 T91-1000 T91-1500 T91-2000 T91-3000 T91i-2000 MODEL NUMBER CAPACITY Power rating 700VA (700W) 1000VA (1000W) 1500VA (1450W) 2000VA (1930W) 3000VA (2880W) 2000VA (2000W) INPUT Voltage 55-150VAC* 110–300VAC* Frequency 50/60Hz auto sensing Power factor >0.99 at full load 200/208/220/ Voltage... -
Page 31: Obtaining Service
RMA number marked on the outside of the boxes. 4. Return the UPS by insured, prepaid carrier to the address provided by the Technician. 5. Refer to the Warranty statements in this manual for additional details on what is covered. Xtreme Power Conversion Corporation Page 31... -
Page 32: Xtreme Power Conversion Limited Warranty
Purchaser’s sole and exclusive remedy for breach of any warranty, expressed or implied, concerning Xtreme Power Conversion equipment, and the only obligation of XPC Corporation under this warranty, shall be the repair or replacement of defective equipment, components, or parts;... -
Page 33: Xtreme Power Conversion Load Protection Policy
T91 User’s Manual Uninterruptible Power Supply Xtreme Power Conversion Load Protection Policy THIS POLICY IS NOT A WARRANTY. REFER TO THE XPC CORPORATION, INC. LIMITED WARRANTY FOR INFORMATION CONCERNING THE WARRANTY FOR YOUR XPC PRODUCT. THE LIMITATIONS AND CONDITIONS CONTAINED IN THIS POLICY DO NOT AFFECT THE TERMS OF THE XPC LIMITED WARRANTY. - Page 34 DAMAGES ARISING OUT OF THE USE OF THE PRODUCT OR DAMAGE TO THE CONNECTED EQUIPMENT, REGARD- LESS OF THE LEGAL THEORY ON WHICH SUCH CLAIM IS BASED, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH Xtreme Power Conversion Corporation Page 34...
- Page 35 No employee of XPC or any other party is authorized to make any representations beyond those made in this agreement con- cerning the Load Protection Policy. XPC Corporation 230 Yuma Street Denver, CO 80223 1.800.582.4524 Xtreme Power Conversion Corporation Page 35...
