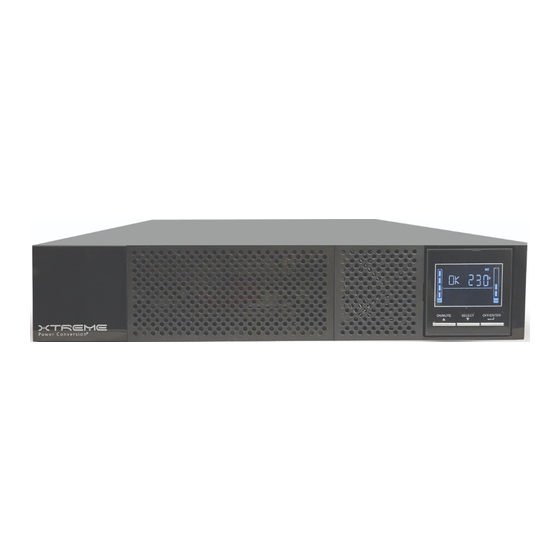

- Page 1 P91 / P91g Lead Acid Online UPS 1000VA, 2000VA, 3000VA Models User & Installation Manual www.xpcc.com | © 2021 Xtreme Power Conversion Corporation. All rights reserved. (Rev 10/21/21)
-
Page 2: Table Of Contents
4. Troubleshooting ........................24 5. Storage and Maintenance ......................25 6. Specifications ........................... 26 7. Obtaining Service ........................28 8. Xtreme Power Conversion Limited Warranty ................29 9. Xtreme Power Conversion Load Protection Policy ..............31 Xtreme Power Conversion Corporation... -
Page 3: Important Safety Warning
Batteries with minimum case flame rating V-2 are intended for use in a computer room as defined in the Standard for the Protection of Information Technology Equipment, ANSI/NFAP 75. Batteries with case flame rating HB are not intended for use in a computer room. (US installations only.) Xtreme Power Conversion Corporation Page 1... -
Page 4: Operation
Determine if battery is inadvertently grounded. If inadvertently grounded,remove source from ground. Contact with any part of a grounded battery can result in electrical shock. The likelihood of such shock can be reduced if such grounds are removed during installation and maintenance. Xtreme Power Conversion Corporation Page 2... - Page 5 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Xtreme Power Conversion Corporation Page 3...
-
Page 6: Installation And Setup
1500 Model 2000 Model 3000 Model P91 models: 1000/1500 Model 2000 Model 3000 Model 1. Programmable outlets: connect to non-critical loads. 2. Output receptacles: connect to mission-critical loads. 3. AC input 4. Network/Fax/Modem surge protection Xtreme Power Conversion Corporation Page 4... - Page 7 P91 Lead Acid 2U User’s Manual Uninterruptible Power Supply 5. USB communication port 6. RS-232 communication port 7. SNMP intelligent slot 8. Emergency power off function connector (EPO) 9. External battery connection 10. Output circuit breaker Xtreme Power Conversion Corporation Page 5...
-
Page 8: Operating Principle
This UPS can be either displayed on the desk or mounted in the 19” rack chassis. Please choose proper installation to position this UPS. Rack-mount Installation Step 1 Step 2 UPS To wer Installation Step 1 Step 2 Step 3 Xtreme Power Conversion Corporation Page 6... -
Page 9: Setup The Ups
Before connecting to external batteries, it’s required to have the internal battery wire disconnected. Follow the below steps to make external battery connection. 1. Turn off UPS and remove power plug from the mains. 2. Remove front panel and disconnect internal battery wire. Xtreme Power Conversion Corporation Page 7... - Page 10 #2 5. Stabilize the connector to the UPS and the battery pack(s) by fixing screws as shown below diagram. 6. Connect internal battery connector and put the front panel back to the unit. Xtreme Power Conversion Corporation Page 8...
- Page 11 The UPS is equipped with intelligent slot perfect for either SNMP or AS400 card. When installing either SNMP or AS400 card in the UPS, it will provide advanced communication and monitoring options. Step 5: Network connection Network/Fax/Phone surge port Xtreme Power Conversion Corporation Page 9...
- Page 12 Note: The EPO function logic can be set up via LCD setting. Please refer to program 16 in UPS setting for the details. It’s in closed status for UPS To activate EPO normal operation as default. function, remove these two screws. Xtreme Power Conversion Corporation Page 10...
-
Page 13: Battery Replacement
CAUTION!! Consider all warnings, cautions, and notes before replacing batteries. Step 1 Step 2 Step 3 Remove front panel. Disconnect battery wires. Pull out the battery box by removing two screws on the front panel. Xtreme Power Conversion Corporation Page 11... -
Page 14: Battery Kit Assembly
Step 2: Connect all battery terminals by following below chart. Tapes Step 3: Put assembled battery packs on one Step 4: Cover the other side of plastic shell as side of plastic shells. below chart. Then, battery kit is assembly well. Xtreme Power Conversion Corporation Page 12... - Page 15 Tapes Tapes Step 3: Put assembled battery packs on one Step 4: Cover the other side of plastic shell as side of plastic shells. below chart. Then, battery kit is assembly well. Xtreme Power Conversion Corporation Page 13...
- Page 16 Tapes Tapes Step 3: Put assembled battery packs on one Step 4: Cover the other side of plastic shell as side of plastic shells. below chart. Then, battery kit is assembly well. Xtreme Power Conversion Corporation Page 14...
-
Page 17: Operations
ON/Mute and Select buttons simultaneously for 0.2 seconds to return to the upper menu. If it’s already in top menu, press these two buttons at the same time to exit the setting mode. 3-2. LCD Panel Function Display Backup time information Xtreme Power Conversion Corporation Page 15... -
Page 18: Audible Alarm
Indicates the UPS is working in converter mode. Indicates the output is working. Battery information Indicates the battery level by 0-24%, 25-49%, 50-74%, and 75-100%. Indicates low battery. 3-3. Audible Alarm Battery Mode Sounding every 5 seconds Xtreme Power Conversion Corporation Page 16... -
Page 19: Lcd Display Wordings Index
Estimated autonomy time Running autonomy time Shutdown Battery Low Over Load Over input current Battery No Connect Over Charge Site wiring fault Temperature Charger Battery Fault Bypass Out Range Bypass frequency unstable Battery Replace EEPROM error Xtreme Power Conversion Corporation Page 17... -
Page 20: Ups Setting
BAT 50: presents output frequency is 50Hz BAT 60: presents output frequency is 60Hz If converter mode is enabled, you may choose the following output frequency: CF 50: presents output frequency is 50Hz CF 60: presents output frequency is 60Hz Xtreme Power Conversion Corporation Page 18... - Page 21 (Default: 132Vac) LLS: Bypass low voltage point For P91g models 170-220: setting the low voltage point from 170Vac to 220Vac. (Default: 170Vac) For P91 models: 85-115: setting the low voltage point from 85Vac to 115Vac. Xtreme Power Conversion Corporation Page 19...
- Page 22 DIS: Disable the autonomy limitation and the backup time will depend on battery capacity. (Default) Note: When setting as “0”, the backup time will be only 10 seconds. • 12: Battery total AH setting Interface Setting Xtreme Power Conversion Corporation Page 20...
- Page 23 EPO function with Pin 1 and Pin 2 in open status. AC: Active Close. When AC is selected as EPO logic, it will activate EPO function with Pin 1 and Pin 2 in close status. Xtreme Power Conversion Corporation Page 21...
-
Page 24: Operating Mode Description
5 seconds. Bypass mode When input voltage is within acceptable range but UPS is overload, UPS will enter bypass mode or bypass mode can be set by front panel. Alarm is sounding every 10 seconds. Xtreme Power Conversion Corporation Page 22... -
Page 25: Faults Reference Code
Bypass frequency unstable Sounding every 2 seconds Battery replacement Sounding every 2 seconds EEPROM error Sounding every 2 seconds NOTE: “Site Wiring Fault” function can be enabled/disabled via software. Please check software manual for the details. Xtreme Power Conversion Corporation Page 23... -
Page 26: Troubleshooting
Fault code is shown as 43 and the The UPS shut down Remove excess loads from automatically because of UPS output and restart it. icon is lighting on LCD display. Alarm is continuously sounding. overload at the UPS output. Xtreme Power Conversion Corporation Page 24... -
Page 27: Storage And Maintenance
Before storing, charge the UPS 5 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months 1-2 hours 40°C - 45°C Every 2 months 1-2 hours Xtreme Power Conversion Corporation Page 25... -
Page 28: Specifications
ViewPower software, horizontal bracket ) s, tower pedestals, user manual INCLUDED IN BOX Bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall AVAILABLE OPTIONS mount bracket *Depending on load level Xtreme Power Conversion Corporation Page 26... - Page 29 5.31 5.42 5.31 5.53 60.00% 6.93 6.93 7.06 7.33 50.00% 9.44 9.46 9.56 9.79 40.00% 12.92 12.89 13.20 13.51 30.00% 18.52 18.43 19.12 19.90 20.00% 29.90 29.44 31.06 32.61 10.00% 63.67 61.16 68.38 72.53 Xtreme Power Conversion Corporation Page 27...
- Page 30 17.2 x 23.6 x 3.5 in 17.2 x 18.9 x 3.5 in 17.2 x 23.6 x 3.5 in (WxDxH) Net Weight 58.1 lbs 104.4 lbs 74.6 lbs 104.4 lbs NOTE: Battery pack should be used with corresponding UPS. Xtreme Power Conversion Corporation Page 28...
-
Page 31: Obtaining Service
Call your dealer for assistance. If you cannot reach your dealer, or if they cannot resolve the problem, call Xtreme Power Conversion Corp Technical Support at 800.582.4524. Technical support inquiries can also be made at support@xpcc.com. Please have the following information available BEFORE calling the Technical Support Department: •... - Page 32 Corporation or a XPC Corporation authorized representative before or after delivery with regard to the use or application of Xtreme Power Conversion equipment is furnished on the basis that it represents XPC Corporations best judgment under the situation and circumstances, but it is used at the recipient’s sole risk.
-
Page 33: Xtreme Power Conversion Load Protection Policy
P91 Lead Acid 2U User’s Manual Uninterruptible Power Supply 9. Xtreme Power Conversion Load Protection Policy THIS POLICY IS NOT A WARRANTY. REFER TO THE XPC CORPORATION, INC. LIMITED WARRANTY FOR INFORMATION CONCERNING THE WARRANTY FOR YOUR XPC PRODUCT. THE LIMITATIONS AND CONDITIONS CONTAINED IN THIS POLICY DO NOT AFFECT THE TERMS OF THE XPC LIMITED WARRANTY. - Page 34 This policy is null and void if, XPC determines, in its sole discretion, that the Product has been tampered with or altered in any way. What is Not Covered Under the Load Protection Policy: Xtreme Power Conversion Corporation Page 32...
- Page 35 • Mark the RMA number clearly on the outside of the box. • Ship the Product (one-way shipping charges paid by the Purchaser) to: XPC Corporation 230 Yuma Street Denver, CO 80223 Attn: LPP RMA# Xtreme Power Conversion Corporation Page 33...
- Page 36 No employee of XPC or any other party is authorized to make any representations beyond those made in this agreement concerning the Load Protection Policy. XPC Corporation 230 Yuma Street Denver, CO 80223 1.800.582.4524 Xtreme Power Conversion Corporation Page 34...
