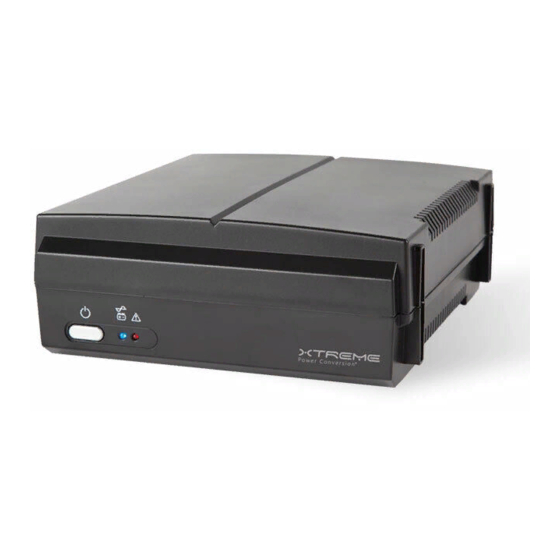

Xtreme Power Conversion 600VA User Manual
Xtreme value rack tower (xvrt) line-interactive rack-mount network ups
Hide thumbs
Also See for 600VA:
- User & installation manual (18 pages) ,
- User & installation manual (8 pages)
Related Manuals for Xtreme Power Conversion 600VA
Summary of Contents for Xtreme Power Conversion 600VA
- Page 1 U P S Uninterruptible Power System Xtreme Value Rack Tower (XVRT) Line-Interactive Rack-Mount Network UPS 600VA/ 1000VA/ 1200VA 1500VA/ 2200VA/ 3000VA...
- Page 2 ■ USER‘S MANUAL■...
-
Page 3: Table Of Contents
Table of contents Table of contents................. 3 Introduction..................3 1. Important Safety Instructions ............4 2. Presentation..................5 3. Installation ..................8 4. Operation ..................11 5. Software and Computer Interface ..........12 6. Battery Cabinet ................13 Appendix a Troubleshooting............. 13 Appendix b Specifications .............. -
Page 4: Important Safety Instructions
Furthermore, in order to save the battery energy, the UPSs can automatically turn it off under backup mode if none of the connected loads is operating. Advanced battery management The visual and audible indications of the UPS present the battery’s status. The self-test function allows the UPS to detect a weak battery before it is put into service. -
Page 5: Presentation
2. Presentation Front Panel (600VA/ 1000VA), 1U size Front Panel (1200VA/ 1500VA), 2U size Front Panel (2200VA/ 3000VA), 3U size Back Panel (600VA/ 1000VA), 1U size Back Panel (1200VA/ 1500VA), 2U SIZE... - Page 6 (1500VA/110V NO BYPASS OUTPUT) Back Panel (2200VA), 3U SIZE...
- Page 7 Back Panel (3000VA), 3U SIZE 2.1 “Power On” Indicator Power On indicator illuminates when utility power’s condition is normal. 2.2 “BACKUP” indicator The indicator illuminates when the power is supplied from the batteries. 2.3 “Battery Fault” Indicator This illuminates indicating weak battery. Recharge the battery for at least four hours.
-
Page 8: Installation
problems traveling through your system via unprotected peripherals. 2.7 Circuit Breaker Protection Serves as an overload and fault protection. This is a critical component of the advanced UPS 2.8 “Phone Jack” Communications Ports Telecom transfer ports provide users to extend the applications. ●... - Page 9 any equipment while UPS conducts self-test; await it until the Power indicator lights up. Besides this, switch on your equipment after the UPS is switched on.. 3.6 Battery auto-charging Once the power cord is connected, the battery of the UPS will be automatically charged by the UPS..
- Page 10 Installation with bottom plate. Installation with bottom Installation with rear Part bracket. bracket RMB-08 (1U), Part Part RMB-09 (2U), RMB-12 (1U~4U) RMB-13, RMB-10 (3U), 2 PCS. RMB-14 (2U-4U) RMB-11 (4U) 4 PCS. 2 PCS. Step 1 Step 1 Step 1...
-
Page 11: Operation
Step 2 Step 2 Step 2 Step 3 Step 3 Step 3 Step 4 Step 4 Step 4 4. Operation 4.1 Simple test It is recommended that the user perform a simulation test when using UPS for the first time or when adding an additional piece of equipment. Conduct a simulation-test: first, switch on UPS and wait for the power indicator to light up, then simply unplug UPS to simulate the event of utility failure. -
Page 12: Software And Computer Interface
4.2.2. Also make sure the equipment you plugged into the Battery Power-Supplied outlets does not require total power exceeding the capacity of the UPS. Otherwise, overload may occur and cause the circuit breaker to trip. If the power requirement of your equipment differs from VA, convert the requirement power into VA by doing the calculations below: 4.2.3. -
Page 13: Battery Cabinet
include some or all of the following: To broadcast a warning when power fails. To close any open file before the battery is exhausted. To turn-off the UPS. Some computers are equipped with a special connector to link with the communication port. -
Page 14: Appendix B Specifications
UPS on. flipping. The battery is worn-out. Replace the battery by following the instructions in this manual. Mechanical problem. Contact your sales representative. Appendix b Specifications MODEL 600VA 1000VA 1200VA Input Capacity (On Battery) 600VA/360W 1000VA/600W 1200VA/720W (Surge... - Page 15 Voltage Regulation AVR automatically increase output voltage 15% above input voltage (AVR) if –9% to –25% of nominal. AVR decrease output voltage 13% below input voltage if +9% to +25% of nominal Transfer Time 2/4 milliseconds, including detection time Spike Protection 320 Joules, 2ms EMI/RFI filter 10Db at 0.15MHz,50dB at 30MHz...
-
Page 16: Obtaining Service
Transfer Time 2/4 milliseconds, including detection time Spike Protection 320 Joules, 2ms EMI/RFI filter 10Db at 0.15MHz,50dB at 30MHz Overload Protection UPS automatic shutdown if overload exceeds 110% of nominal at 60 Protection seconds and 130% at 3 seconds Filtering Unit Input For overload &... - Page 17 P l e a s e h a v e t h e f o l l o wi n g i n f o r m a t i o n a v a i l a b l e B E F O R E c a l l i n g t h e T e c h n i c a l S u p p o r t D e p a r t m e n t : A .
-
Page 18: Warranty
Limited Three Year Warranty X V R T S e r i e s U P S p r o d u c t s a r e war r a n t e d f r e e f r o m d e f e c t s i n m a t e r i a l a n d wo r k m a n s h i p f o r t h r e e y e a r s f r o m d a t e o f p u r c h a s e . - Page 19 c o n s e q u e n t i a l d a m a g e s . A n y c h a n g e s t o t h i s m u s t b e a p p r o v e d b y a n X t r e m e P o we r c o r p o r a t e o f f i c e r .
- Page 20 n e w r e p l a c e m e n t p r o d u c t o r r e p a i r t h e r e t u r n e d p r o d u c t . T h e c u s t o m e r m u s t r e t u r n t h e d e f e c t i v e u n i t t o X t r e m e P o we r w i t h i n 3 0 d a ys o f i s s u a n c e o f t h e R M A o r wi l l b e c h a r g e d f u l l p r i c e f o r t h e r e p l a c e m e n t u n i t .
