PCAN-Router Pro – User Manual
3.3
Setting the Router ID for the
Configuration
The board of the PCAN-Router Pro has a rotary switch with 16
positions to determine the Router ID (0 - F hex = 0 - 15).
When the PCAN-Router Pro is started the configuration with the
number from the internal memory is loaded which matches the
specified Router ID. In addition, the Router ID gives the PCAN-
Router Pro a unique identification during the PPCAN communica-
tion (configuration transfer). For the transmission of CAN messages
during normal operation this Router ID is not relevant.
Note: The rotary switch position F is reserved for the firmware
update (start of the bootloader) on the PCAN-Router Pro with
serial number 100 and above.
This is how you change the Router ID of a PCAN-Router Pro:
1.
Change the position of the rotary switch with a small slot
screwdriver.

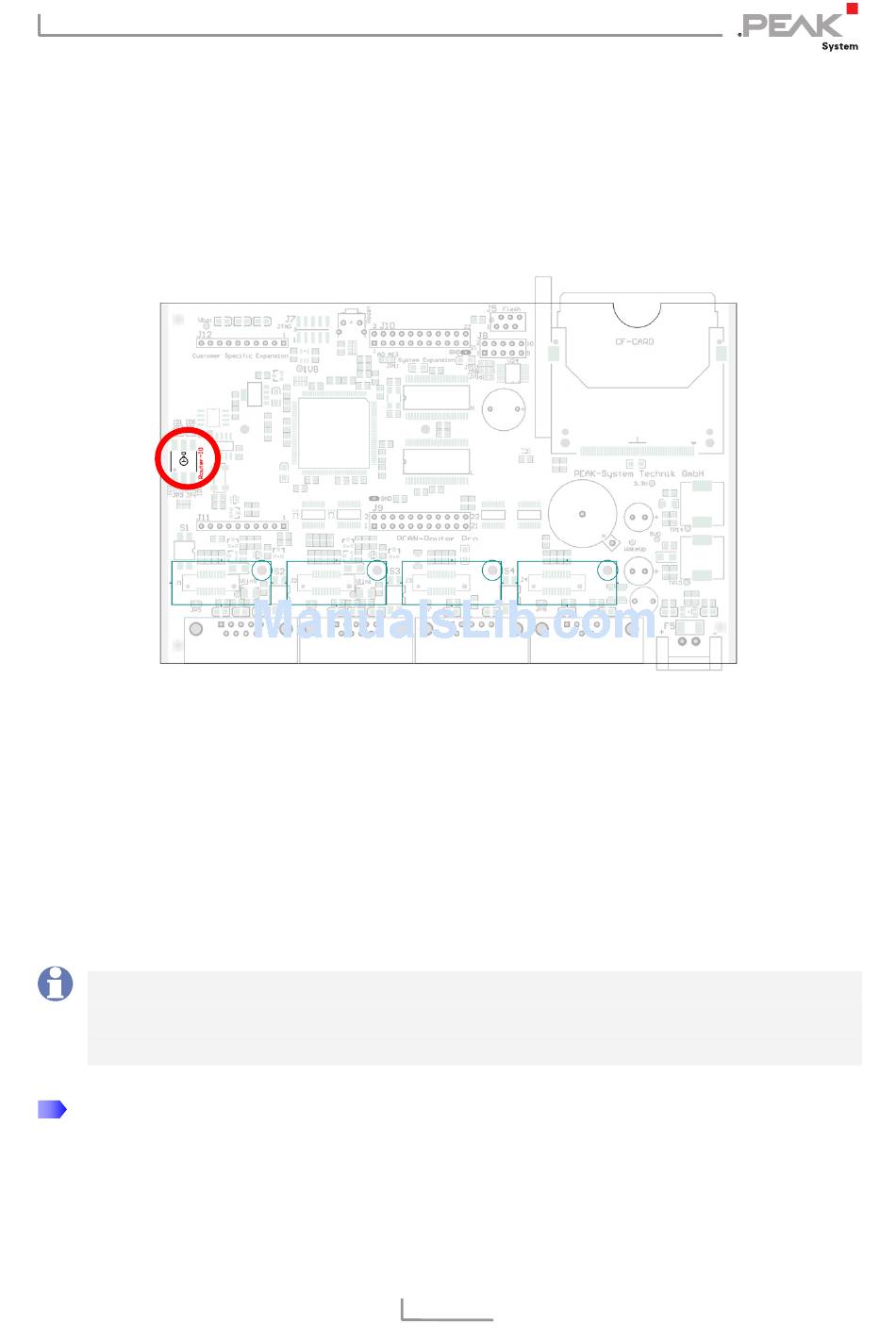

Position of the rotary switch for the Router ID
13
