PCAN-Router Pro – User Manual

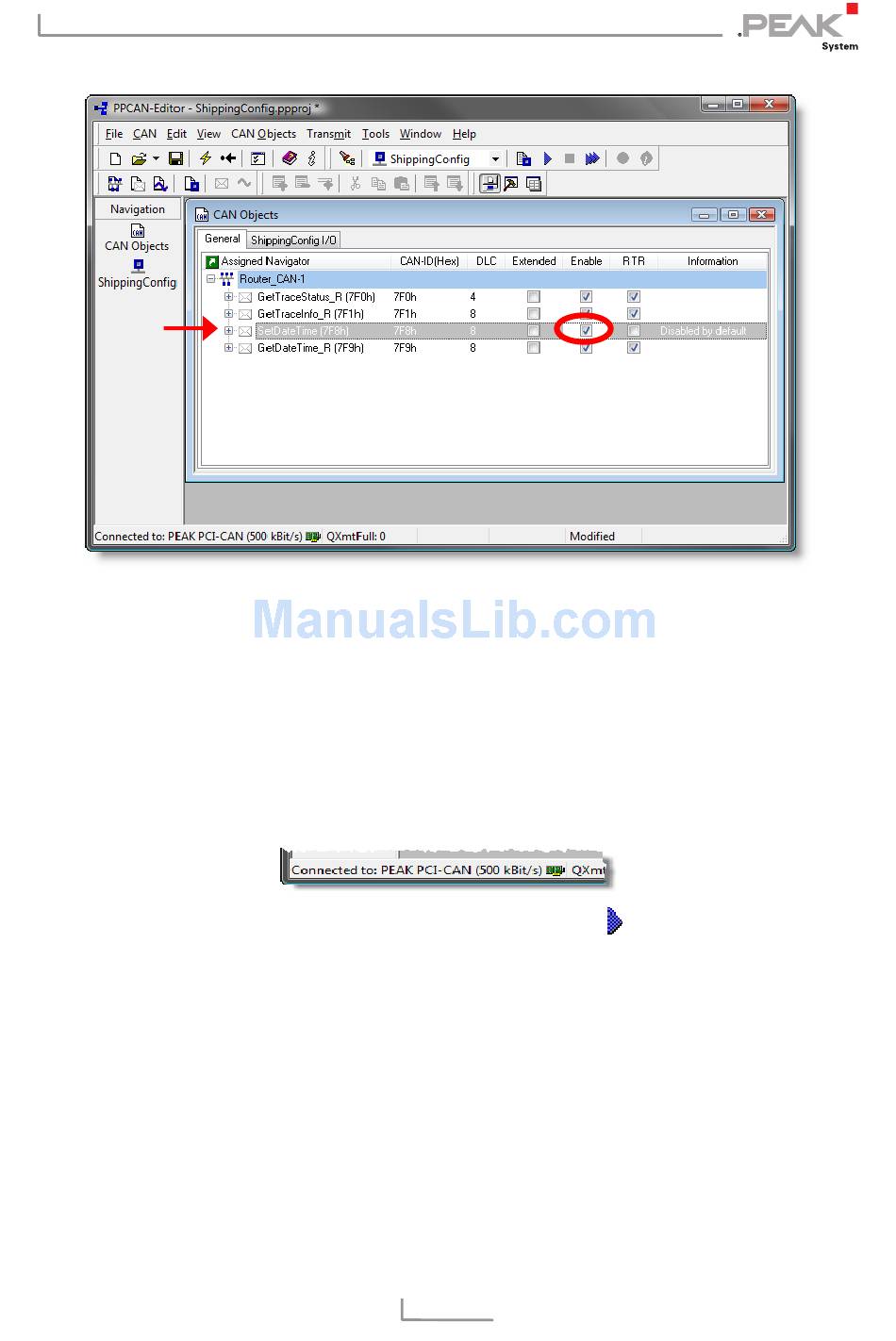

4. If desired, you can change the CAN ID of the symbol entry.
5. Enable the symbol entry by checking the corresponding
field Enable.
6. Make sure that a CAN connection exists between the com-
puter and the PCAN-Router Pro, and furthermore, that the
PPCAN-Editor has access to this connection (display in the
status bar).
7. With Transmit > Send Configuration or
configuration to the PCAN-Router Pro.
During transfer the LED μC Status blinks green with short
light phase.
23
send the altered
