Appendix C Contents of a

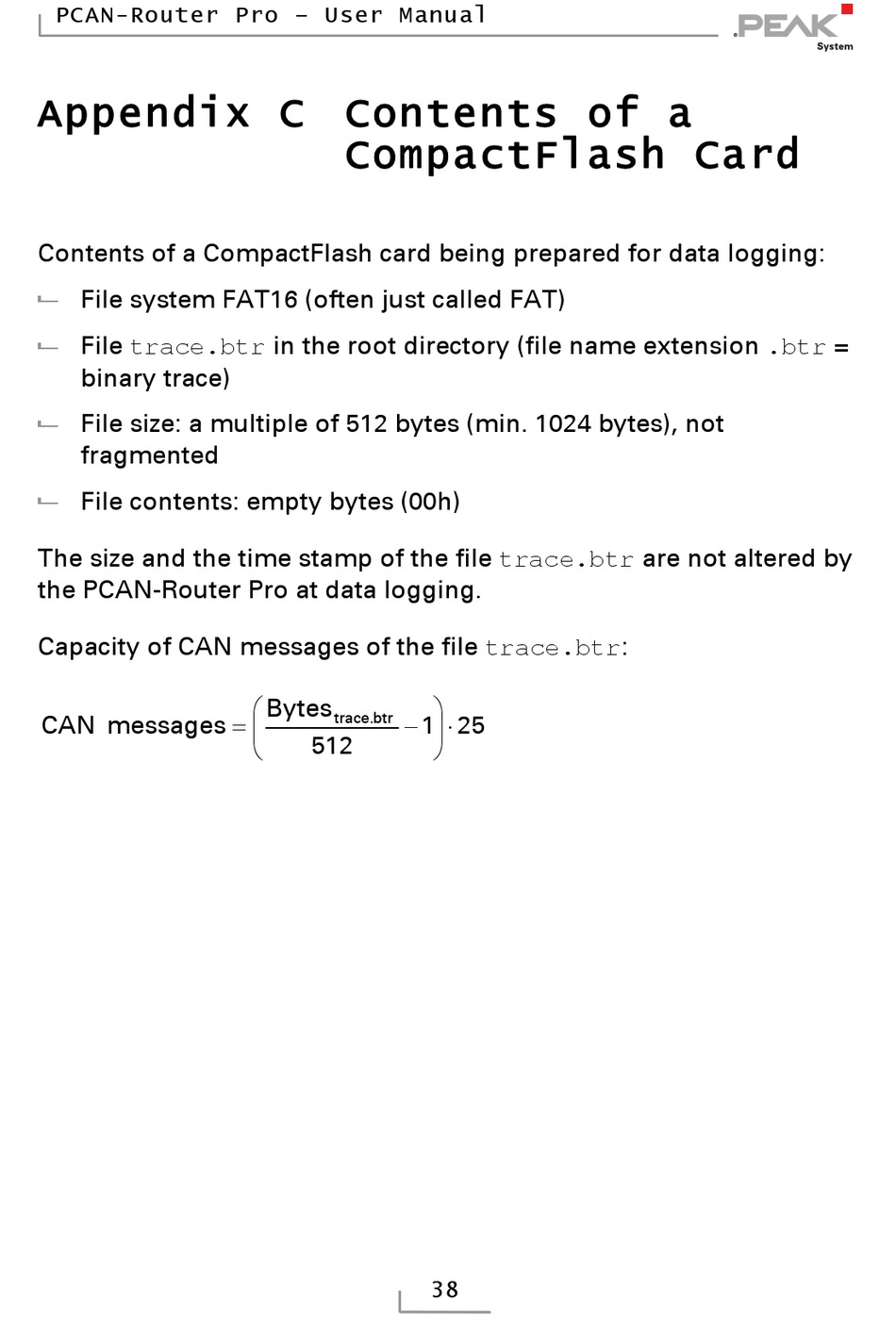

Contents of a CompactFlash card being prepared for data logging:
File system FAT16 (often just called FAT)
File trace.btr in the root directory (file name extension .btr =
binary trace)
File size: a multiple of 512 bytes (min. 1024 bytes), not
fragmented
File contents: empty bytes (00h)
The size and the time stamp of the file trace.btr are not altered by
the PCAN-Router Pro at data logging.
Capacity of CAN messages of the file trace.btr:
CAN messages
CompactFlash Card
⎛ Bytes
=
trace . btr
⎜
512
⎝
⎞
− ⋅ ⎟
1 25
⎠
38
