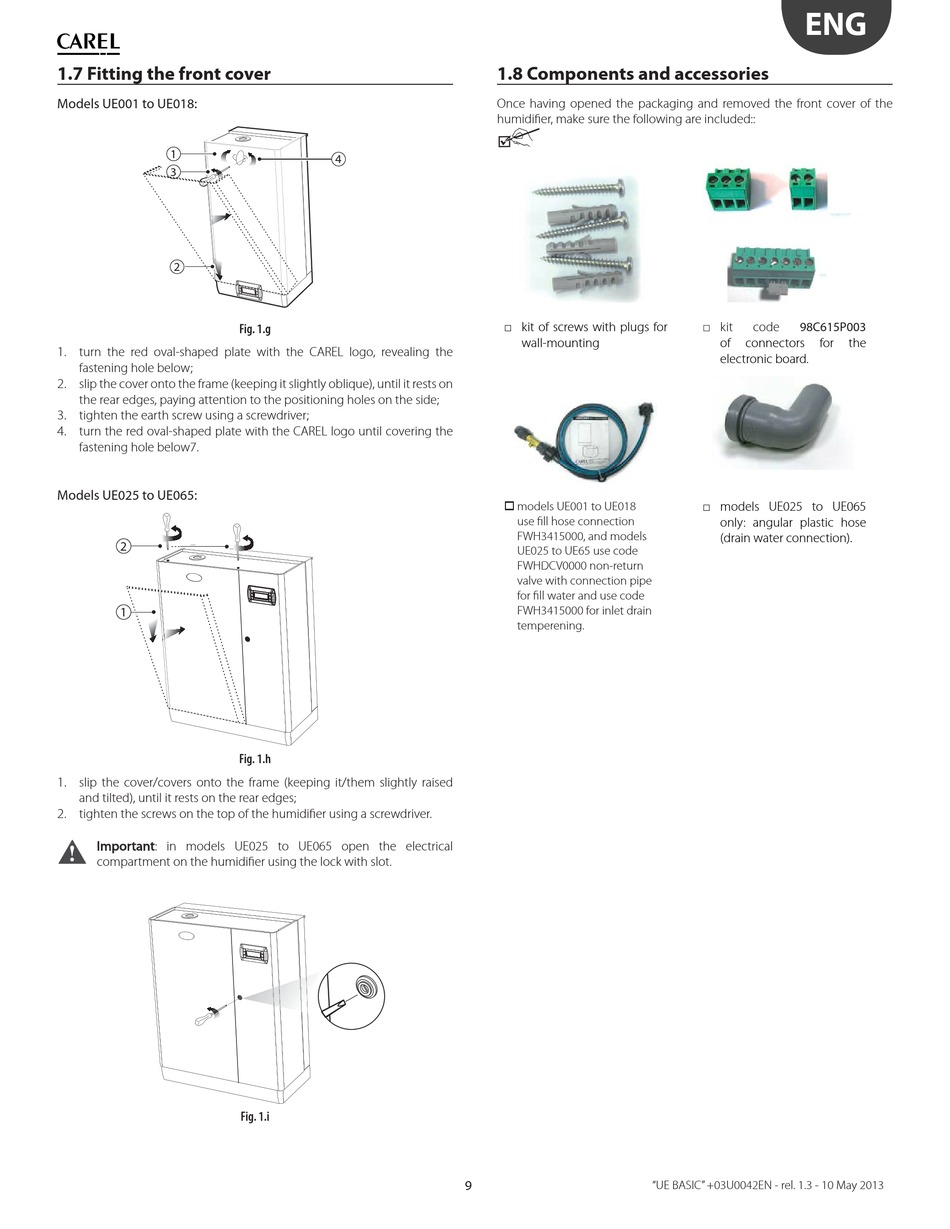

1.7 Fitting the front cover
Models UE001 to UE018:
1
3
2
1.
turn the red oval-shaped plate with the CAREL logo, revealing the
fastening hole below;
2. slip the cover onto the frame (keeping it slightly oblique), until it rests on
the rear edges, paying attention to the positioning holes on the side;
3. tighten the earth screw using a screwdriver;
4.
turn the red oval-shaped plate with the CAREL logo until covering the
fastening hole below7.
Models UE025 to UE065:
2
1
1.
slip the cover/covers onto the frame (keeping it/them slightly raised
and tilted), until it rests on the rear edges;
2.
tighten the screws on the top of the humidifi er using a screwdriver.
Important : in models UE025 to UE065 open the electrical Important
compartment on the humidifi er using the lock with slot.
4
Fig. 1.g
Fig. 1.h
Fig. 1.i

1.8 Components and accessories

Once having opened the packaging and removed the front cover of the
humidifi er, make sure the following are included::
□ kit of screws with plugs for
wall-mounting
 models UE001 to UE018
use fi ll hose connection
FWH3415000, and models
UE025 to UE65 use code
FWHDCV0000 non-return
valve with connection pipe
for fi ll water and use code
FWH3415000 for inlet drain
temperening.
9
ENG
□ kit
code 98C615P003
of connectors for
electronic board.
□ models UE025 to UE065
only: angular plastic hose
(drain water connection).
"UE BASIC" +03U0042EN - rel. 1.3 - 10 May 2013
