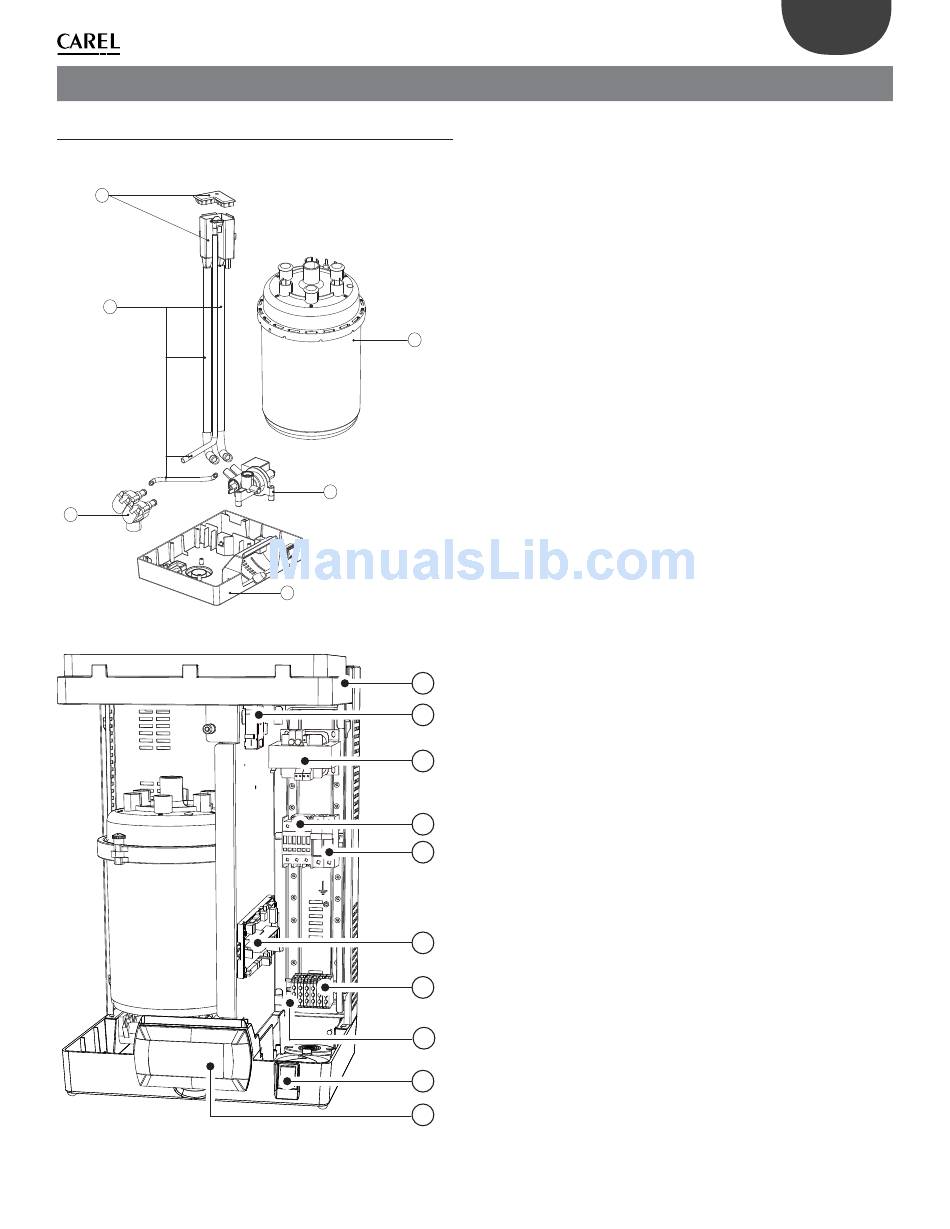

9.1 Spare parts for models UE001 to UE018

1
2
3

9. MAINTENANCE AND SPARE PART

4
5
6
Fig. 9.a
10
11
12
13
14
15
16
Fig. 9.b
Key to Figs. 9a & 9.b:
1
fi ll tank
2
internal tubing kit
3
fi ll solenoid and drain tempering valve kit
4
cylinder
5
manifold with drain pump
6
plastic base
7
plastic humidifi er top
8
TAM (transformer for measuring the current)
9
transformer
10
contactor
11
fuse holder F1-F2
12
electronic controller
13
power terminals
14
fuse holder F3
15
switch
16
terminal with display
7
8
9
23
ENG
"UE BASIC" +03U0042EN - rel. 1.3 - 10 May 2013
