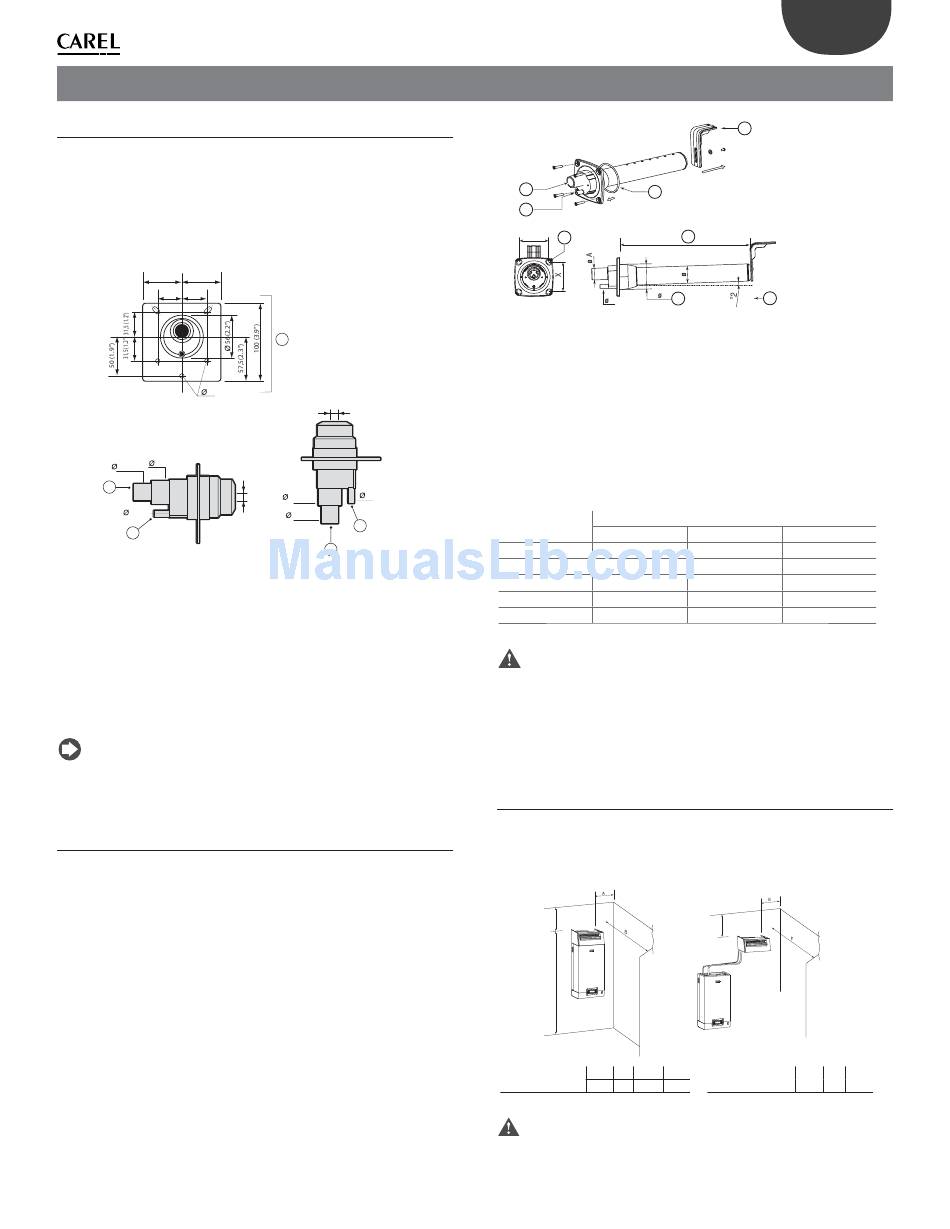

3.1 CAREL jet distributors (SDPOEM00**)
These can be fi tted horizontally or vertically (hole facing upwards).
See page 31 for the models of distributors.
Assembly instructions (see Fig.3.a ):
•
make a series of holes on the wall according to the distributor drilling
template;
•
insert the distributor;
•
fasten the fl ange using 4 screws.
50 (1.9")
50 (1.9")
31,5 (1.2")
31,5 (1.2")
5(0.2")
30 (1.2")
22 (0.9")
A
8(0.3")
B
Key:
A. steam inlet
B. condensate drain
C. steam outlet.
the dimensions of the hole vary depending on the models of
distributor:
model SDPOEM0000: hole made manually, up to 30 mm (1.2") in
diameter);
D
drilling template
Note: if steam hoses with an inside diameter of 30 mm (1.2") are
used, remove the 22 mm (0.9") steam inlet section.
3.2 CAREL linear distributors for air ducts
(DP***DRU)
Install away from obstacles (curves, branches, changes in cross-section, grills,
fi lters, fans).
Minimum distance between the distributor and the obstacle: 1/1.5 m
(3.3/4.9 ft). Increase the distance if:
•
the air speed increases in the duct,
•
the relative humidity of the air increases before and after humidifi cation,
•
the turbulence decreases.
See page 33 for installation examples.
Assembly instructions (see Fig.3.b ):
•
make a series of holes on the wall according to the distributor drilling
template (included in the packaging with the distributor);
•
insert the distributor with the steam holes facing upward;
•
fasten the fl ange using 4 screws.
3. STEAM DISTRIBUTION
D
C
8(0.3")
C
30 (1.2")
22 (0.9")
B
A
Fig. 3.a
3
4
5
X
B
Key:
1 "L"-shaped mounting support (where featured)
2 fl ange gasket
3 steam inlet (ØA)
4 condensate drain (ØB)
5 screw diameter (see the instruction sheet supplied with the distributor)
6 length (depending on the model of distributor, see par. "10.5" page 38)
7 angle (around 2°) for draining the condensate.
8 diameter of the hole on the wall (ØY)
Dimensions in mm (in)
DP***D22RU
ØA
22 (0.9")
ØB
10 (0.4")
ØY
58 (2.3")
Ø
35 (1.4")
X
68 (2.7")
Important:
Important:
1.
fi t the distributor at a slight incline (at least 2°, to prevent the return of
condensate);
2.
the "L"-shaped mounting support (see part 1 Fig. 3.c) is supplied with
steam distributor models from DP085* to DP205*. For shorter lengths,
the support can be supplied as an option (code 18C478A088).
3.3 CAREL steam blowers (VSDU0A*, models
UE001 to UE018 only)
Steam distributors for humidifi ers with fl ow rates up to 18 kg/h (39.7 lb/h).
Can be connected on top of the humidifi er, or separately in another location
(see the fi gure below).
D
C
DIMENSIONS (m) A
B
C
>0,5 >5 ≥2,1 >1
Important:
Important: For correct distribution of the steam, observe
For correct distribution of the steam, observe the distance
shown in the fi gure above.
13
ENG
1
A
22
30
B
10
10
Y
58
68
35
45
2
X
68
77
dimensioni in mm
6
7
8
Y
Fig. 3.b
CAREL linear distributors
DP***D30RU
DP***D40RU
30 (1.18")
40 (1.57")
10 (0.4")
10 (0.4")
68 (2.7")
89 (3.5")
45 (1.8")
60 (2.4")
77 (3.0")
99 (3.9")
G
D
DIMENSIONS (m) E
F
>0,5 >5 >1
Fig. 3.c
"UE BASIC" +03U0042EN - rel. 1.3 - 10 May 2013
40
10
89
60
99
Tab. 3.a
G
