ENG
Before starting the humidifi er, check:
□ water connections: chap. 2. In the event of water leaks do not start the
humidifi er before having resolved the problem;
□ steam distribution: chap. 3 and electrical connections chap. 4 .

6.1 Starting

1
ON
2 if the cylinder is new, run a pre-wash cycle by pressing ENTER +
DOWN for 5 sec. (the cylinder is fi lled and emptied three times,
cleaning the inside walls from impurities).
A display shows the symbol PRE Cln

6.2 Stopping

1
empty the water in the cylinder to avoid stagnation (see paragraph 6.6
"Manually drain the water in the cylinder").
2
OFF

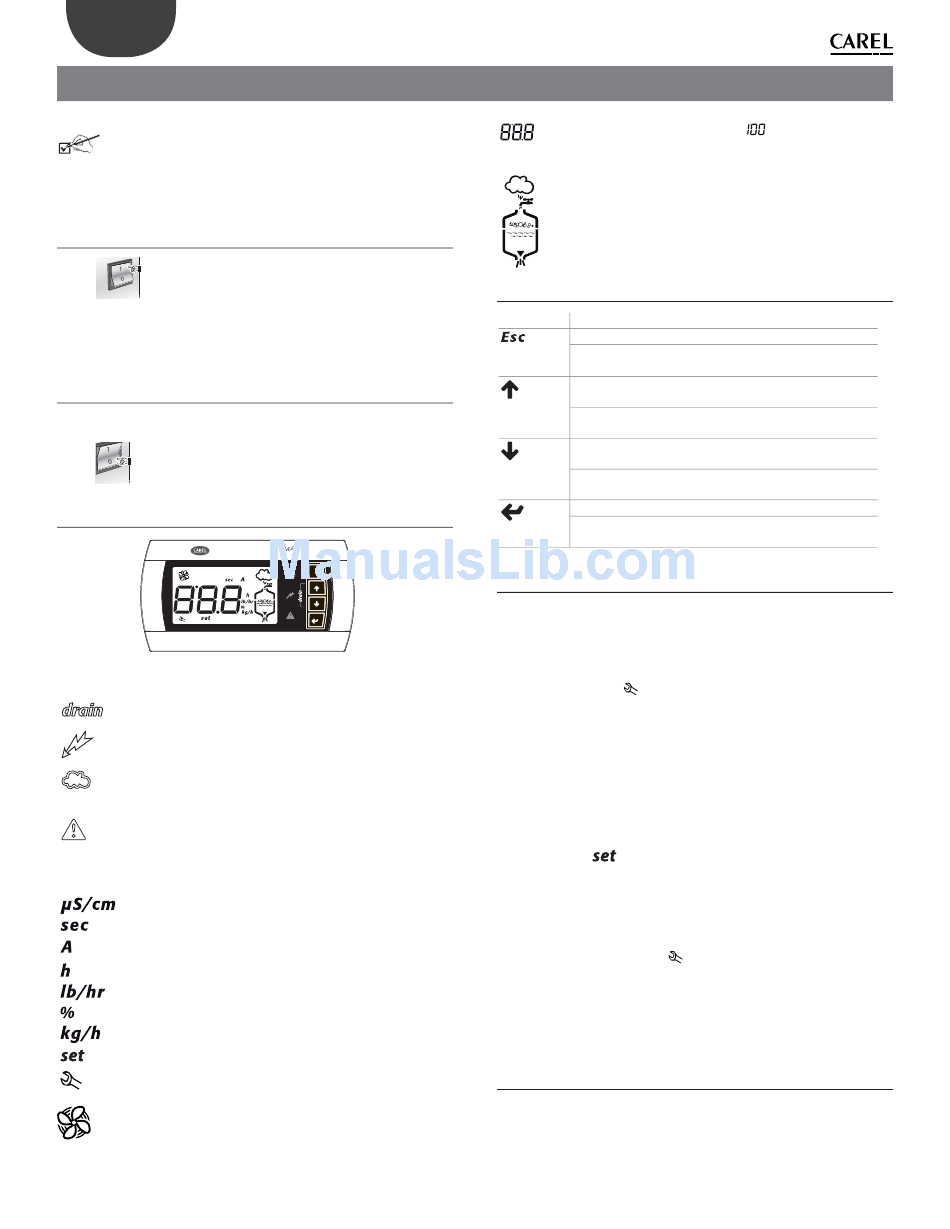

6.3 Display

humiSteam
μS/cm
Key:
manually drain the cylinder (see paragraph 6.6)
power supply (green LED)
humidifi er operating (yellow LED)
Flashing: steam production not yet in steady operation
Steady: steam production in steady operation
alarm (red LED, not fl ashing)
Alarm activated: LED fl ashing and buzzer active
If an alarm is active pressing ESC mutes the buzzer and the
LED comes on steady, pressing ESC again resets the alarms
(see Chap. 8)
conductivity value
time in seconds
instant current value in Amperes
real hour counter
steam fl ow-rate (Imperial system)
steam production as a percentage of rated capacity
steam fl ow-rate (international system, default)
parameter programming in progress (parameter setup)
maintenance request (alarm active) or display alarm log (HYS)
on steady: external fan or steam production active.
Flashing: external fan or steam production awaiting start/
stop
"UE BASIC" +03U0042EN - rel. 1.3 - 10 May 2013

6. STARTING AND USER INTERFACE

esc
Fig. 6.a
3 digits, after 999 the display shows
three digits plus point - between the fi rst and the second
digit- are displayed
steam production in progress
cylinder fi lling in progress
foam in the cylinder
presence water in the cylinder
cylinder water drain in progress

6.4 Keypad

key function
return to the previous display
from the main screen: pressed for 5 seconds disables/
enables the humidifi er
UP from the main screen: display the humidifi cation values
(current, conductivity,....), see the following paragraph
from the list of parameters: circular navigation of the
parameters and set the values
DOWN from the main screen: display the humidifi cation values
(current, conductivity,....)
from the list of parameters: circular navigation of the
parameters and set the values
ENTER for 2 seconds: access the list of parameters
(PRG)
from the list of parameters: select and confi rm (like the
"Enter" key on a computer keyboard)

6.5 Main display

The display on the humidifi er normally shows the current steam production
(kg/h, basic display).
To display other values, press UP or DOWN and scroll the following list:
•
input signal (0-100%, or ON/OFF if A0=0)
•
access alarm log (HYS ) (**)
•
set maximum steam production (parameter P0) (*)
•
current (A)
•
conductivity (μS/cm)
•
cylinder hour counter (h)
To return to the basic display, press ESC.
Parameter C0 (see chap. 7) can be used to change the value of the basic
display (default: current steam production).
(*) To modify the maximum steam output (P0) press:
•
ENTER (display: )
•
UP or DOWN to set the value percentage of production (from 20 to
100%)
•
ENTER to confi rm the new value
Press ESC to return to the main screen
Parameter P0 can also be accessed from the list of parameters (see chap. 7).
(**) To display the alarm log (HYS ) press:
•
ENTER (the most recent alarm is shown)
•
UP or DOWN to scroll the list of alarms in chronological order
press ESC to return to the main screen
To delete the list of alarms press UP and DOWN for 5 seconds (inside the
alarm log), when the list has been reset the display will show 'res' .

6.6 Disabling

The humidifi er can be disabled in 3 diff erent ways:
•
Opening contact M2.4 and M2.5 (enable) : the display shows C--
•
From serial (see Chap. 7 Digital 2) : the display shows S--
•
From terminal (see ESC button) : the display shows t--
18
to indicate 1000 (only
).
