3. To remove VLAN, click the Delete button for the one you want to remove and click OK
to save the results.

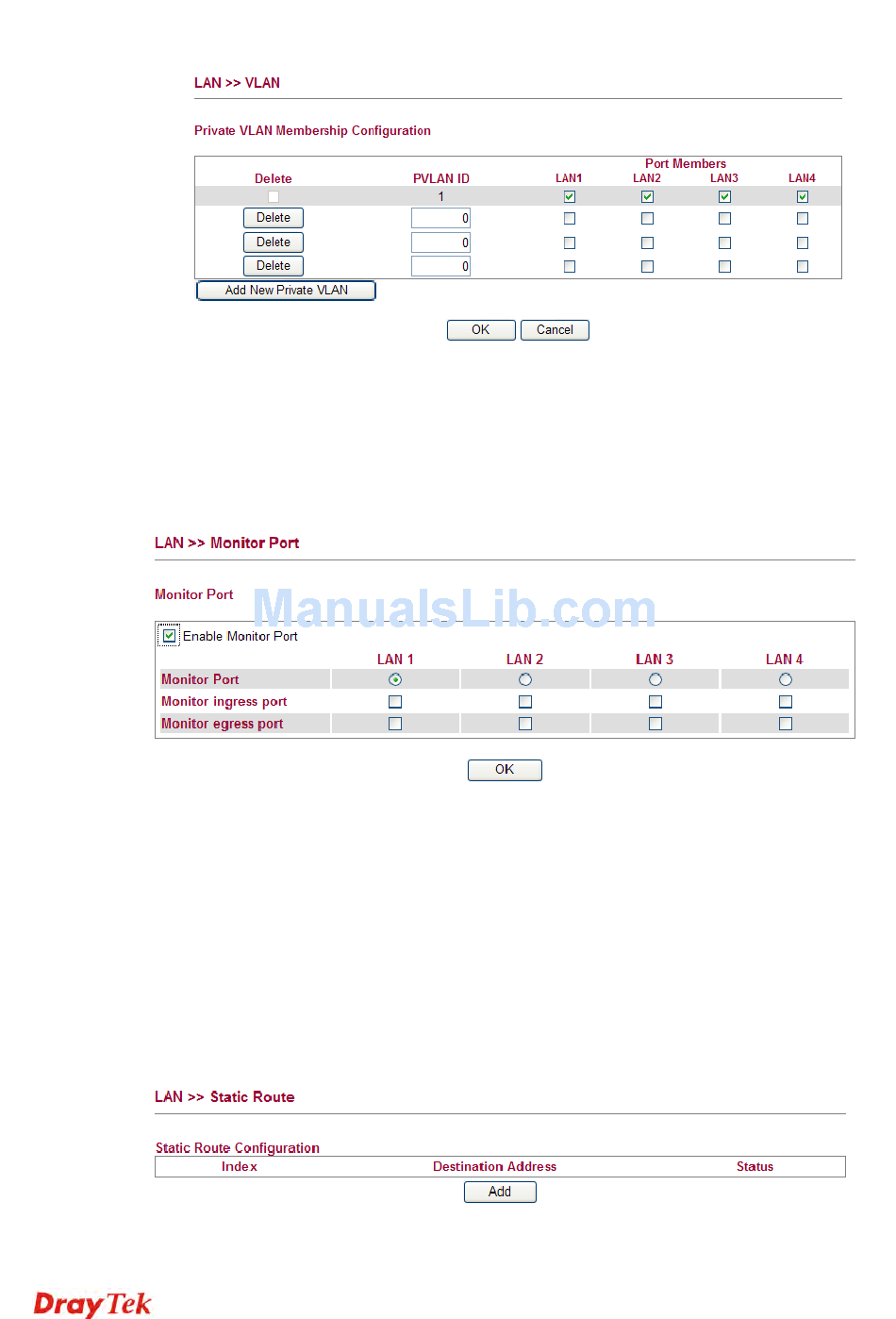

3 . 2 . 5 M o n i t o r P o
3 . 2 . 5 M o n i t o r P o
It is used to monitor the traffic of the network. For example, we assume that LAN1 and LAN2
are Monitor Port and Monitor ingress Port respectively, thus, the traffic received by LAN2
will be copied to LAN1 for monitoring.
Enable Monitor Port

Monitor Port

Monitor ingress port
Monitor egress port
3 . 2 . 6 S t a t i c R o u t
3 . 2 . 6 S t a t i c R o u t
Go to LAN to open setting page and choose Static Route.
r t
r t
Check to enable this function.
Click the one of the LAN ports to specify it for monitoring.
Check to set up the port(s) for being monitored. It only
monitors the packets received by the port you set up.
Check to set up the port(s) for being monitored. It only
monitors the packets transmitted by the port you set up.
e
e
48
Vigor2130 Series User's Guide
