Remote Authentication Dial-In User Service (RADIUS) is a security authentication
client/server protocol that supports authentication, authorization and accounting, which is
widely used by Internet service providers. It is the most common method of authenticating and
authorizing dial-up and tunneled network users.
The built-in RADIUS client feature enables the router to assist the remote dial-in user or a
wireless station and the RADIUS server in performing mutual authentication. It enables
centralized remote access authentication for network management.

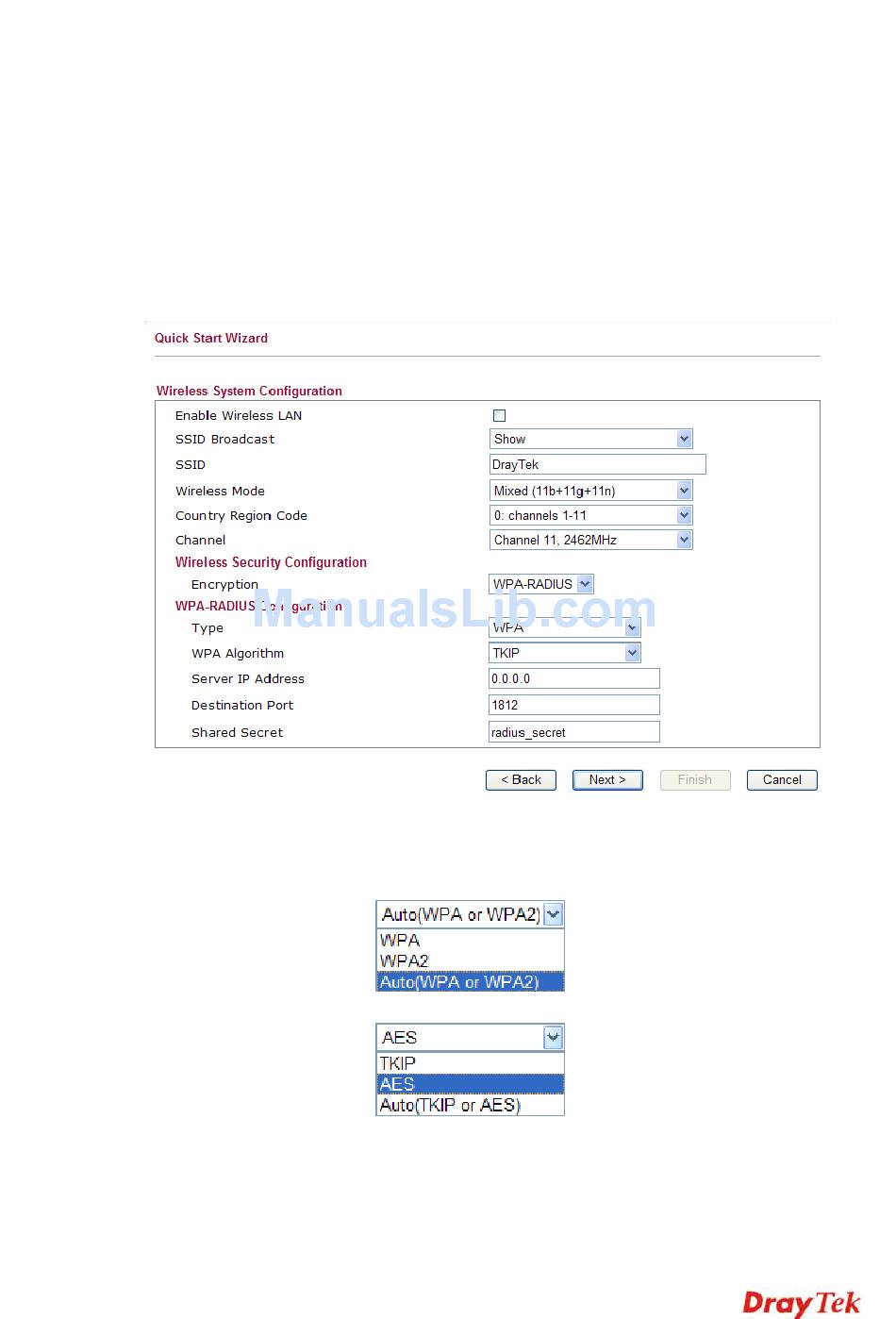

If you choose WPA-Radius as the security configuration, you have to specify WPA mode,
algorithm, Radius server, Radius server port and Radius server secret respectively.
Type
WPA Algorithm
Server IP Address
Destination Port
Vigor2130 Series User's Guide
R A D I U S
R A D I U S
The WPA encrypts each frame transmitted from the radio using
the key, which either PSK (Pre-Shared Key) entered manually
in this field below or automatically negotiated via 802.1x
authentication. Select WPA, WPA2 or Auto as WPA mode.
Choose the WPA algorithm, TKIP, AES or Auto.
Enter the IP address of RADIUS server.
The UDP port number that the RADIUS server is using. The
default value is 1812, based on RFC 2138.
