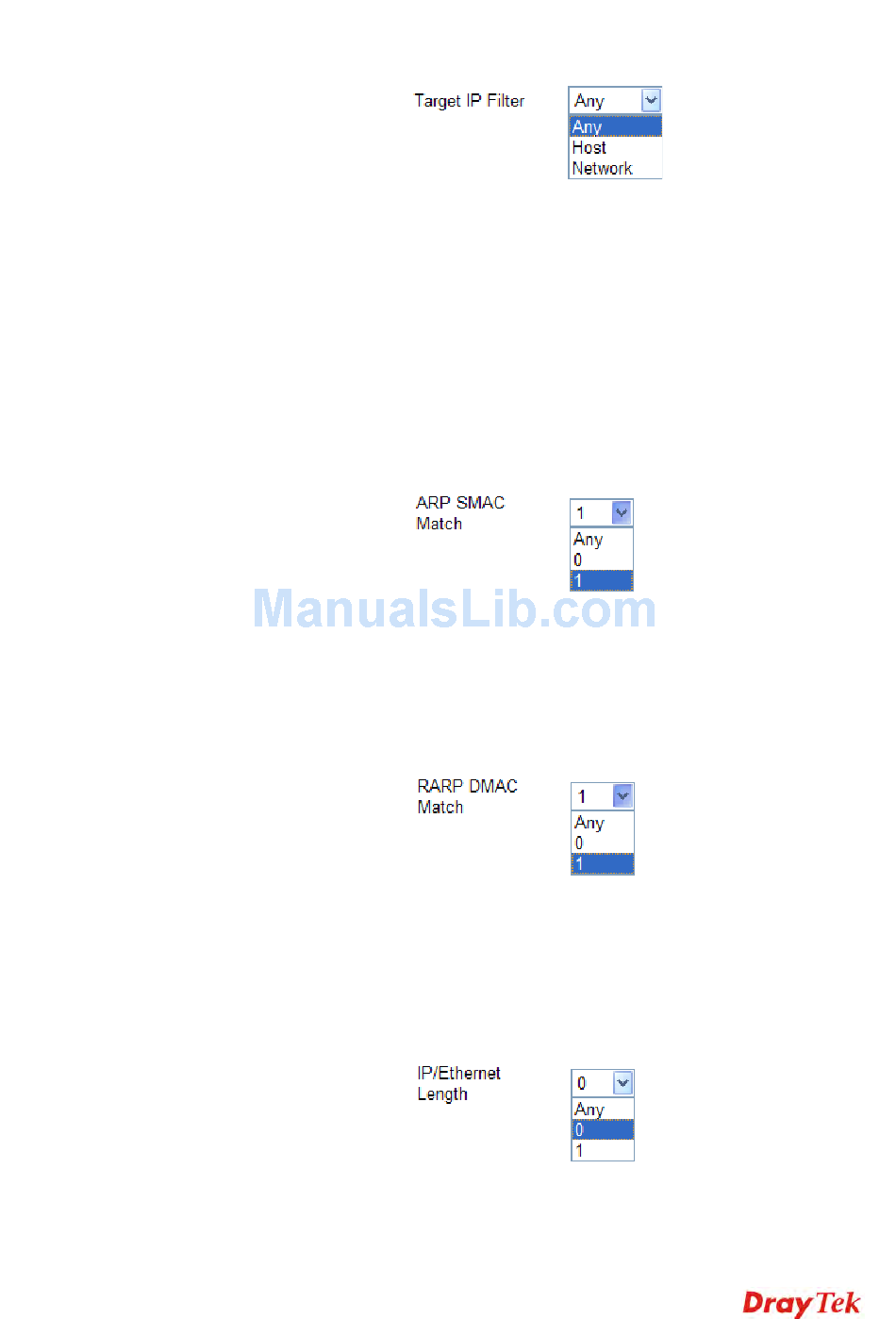

Target IP Filter
Target IP Address
Target IP Mask
ARP SMAC Match
RARP DMAC Match
IP/Ethernet Length
Vigor2130 Series User's Guide
Specify the target IP filter for this specific ACE.
Choose Any to filter all of the packets.
Choose Host to filter the packets from the host with the
address typed in Target IP Address filed.
Choose Network to filter the packets within the network
defined in Target IP Address and Target IP Mask fields.
Type the Target IP Address here. This option is available
when you choose Host or Network as Target IP Filter.
Type the Target IP Mask here. This option is available
only when you choose Network as Target IP Filter.
Specify whether frames/packets can meet the action
according to the sender hardware address field (SHA)
settings.
0: means sender hardware address is not equal to the
SMAC address.
1: means sender hardware address is equal to the SMAC
address.
Any: means any value is allowed.
Specify whether frames can hit the action according to
their target hardware address field (THA) settings.
0: means target hardware address is not equal to the
SMAC address.
1: means s target hardware address is equal to the SMAC
address.
Any: means any value is allowed.
Specify whether frames/packets can meet the action
according to the ARP/RARP hardware address length
(HLN) and protocol address length (PLN) settings.
0: means ARP/RARP frames/packets where the hardware
address length is equal to Ethernet (0x06) and the protocol
address length is equal to IPv4 (0x04) must not match this
entry.
