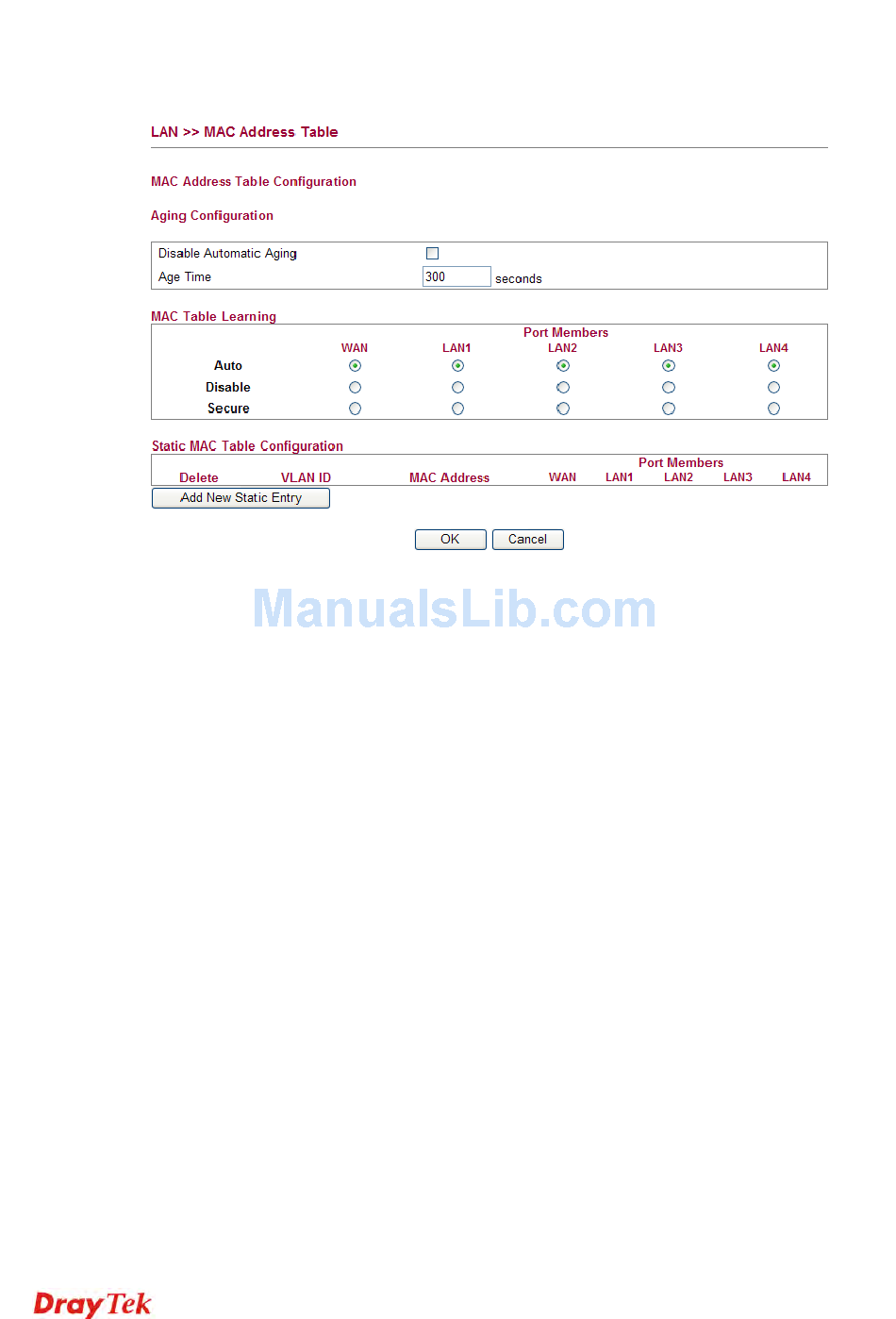

This page allows you to set timeouts for entries in dynamic MAC Table and configure the
static MAC table here.
Disable Automatic Aging
Age Time
MAC Table Learning
Static MAC Table Config.. Specify static MAC address with VLAN ID to apply aging
To add a new static MAC entry, click Add new static entry. A new entry will be shown as
follows. Choose VLAN ID and type a new MAC address. Next, specify port member for this
table. Finally, click OK to save the changes.
Stop the MAC table aging timer, the learned MAC address will
not age out automatically. The default setting is enabled. Check
the box to disable this function if required.
Delete a MAC address idling for a period of time from the
following MAC Table, which will not affect static MAC
address. Range of MAC Address Aging Time is 10-1000000
seconds. The default Aging Time is 300 seconds.
List the port members which apply dynamic learning
mechanism or not.
Auto - Enable this port MAC address dynamic learning
mechanism.
Disable - Disable this port MAC address dynamic learning
mechanism, only support static MAC address setting.
Secure - Disable this port MAC address dynamic learning
mechanism and copy the dynamic learning packets to CPU.
configuration.
Delete - Click the button to remove the VLAN setting.
VLAN ID - Specify the interface for the port members.
MAC Address - It is a six-byte long Ethernet hardware address
and usually expressed by hex and separated by hyphens. For
example, 00 – 40 - C7 - D6 – 00 – 02.
WAN/LAN1~4 - Check the port to apply this VLAN setting.
