Draytek Vigor2130 Series User Manual page 175

A d d i n g
A d d i n g

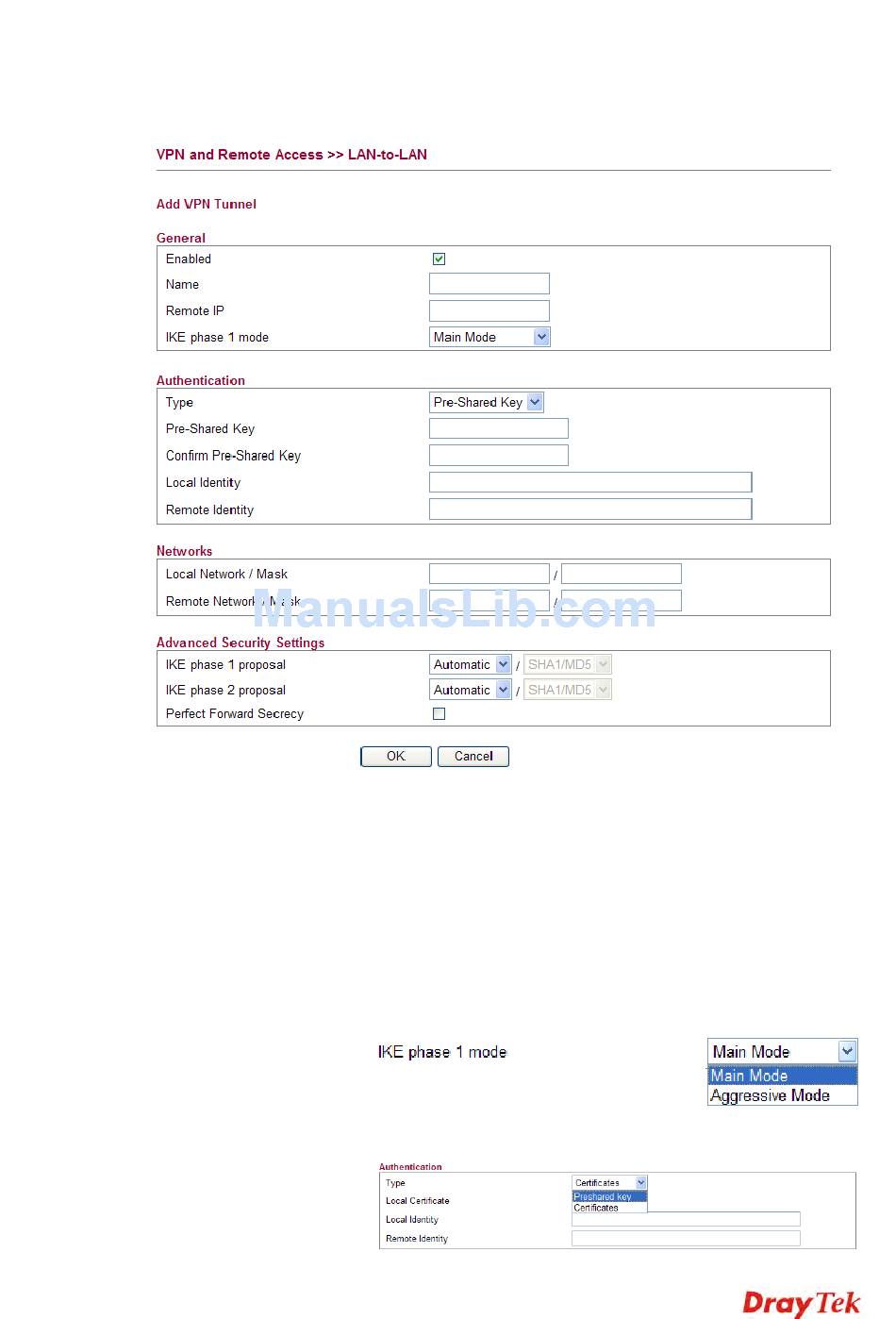

Click Add Tunnel to open the following page.
Enabled
Name
Remote IP
IKE phase 1 mode
Type
Vigor2130 Series User's Guide
a V P N T u n n e l
a V P N T u n n e l
Check here to activate this tunnel.
Specify a name for this tunnel.
Enter the IP address of the remote host that located at the
other-end of the VPN tunnel.
Select from Main mode and Aggressive mode. The ultimate
outcome is to exchange security proposals to create a protected
secure channel. Main mode is more secure than Aggressive
mode since more exchanges are done in a secure channel to set
up the IPSec session. However, the Aggressive mode is faster.
The default value in Vigor router is Main mode.
This group of fields is applicable for IPSec Tunnels. Different
type will bring out different requirement of information.
167
