Source IP Address
Source IP Mask
Dest IP Filter
Dest IP Address
Dest IP Mask
ICMP Type Filter
ICMP Type Value
ICMP Code Filter
ICMP Code Value
Vigor2130 Series User's Guide
source IP address and source IP mask in the Source IP
Address and Source IP Mask fields that appear.
Type the Source IP Address here. This option is available
when you choose Host or Network as Source IP.
Type the Source IP Mask here. This option is available
only when you choose Network as source Source IP.

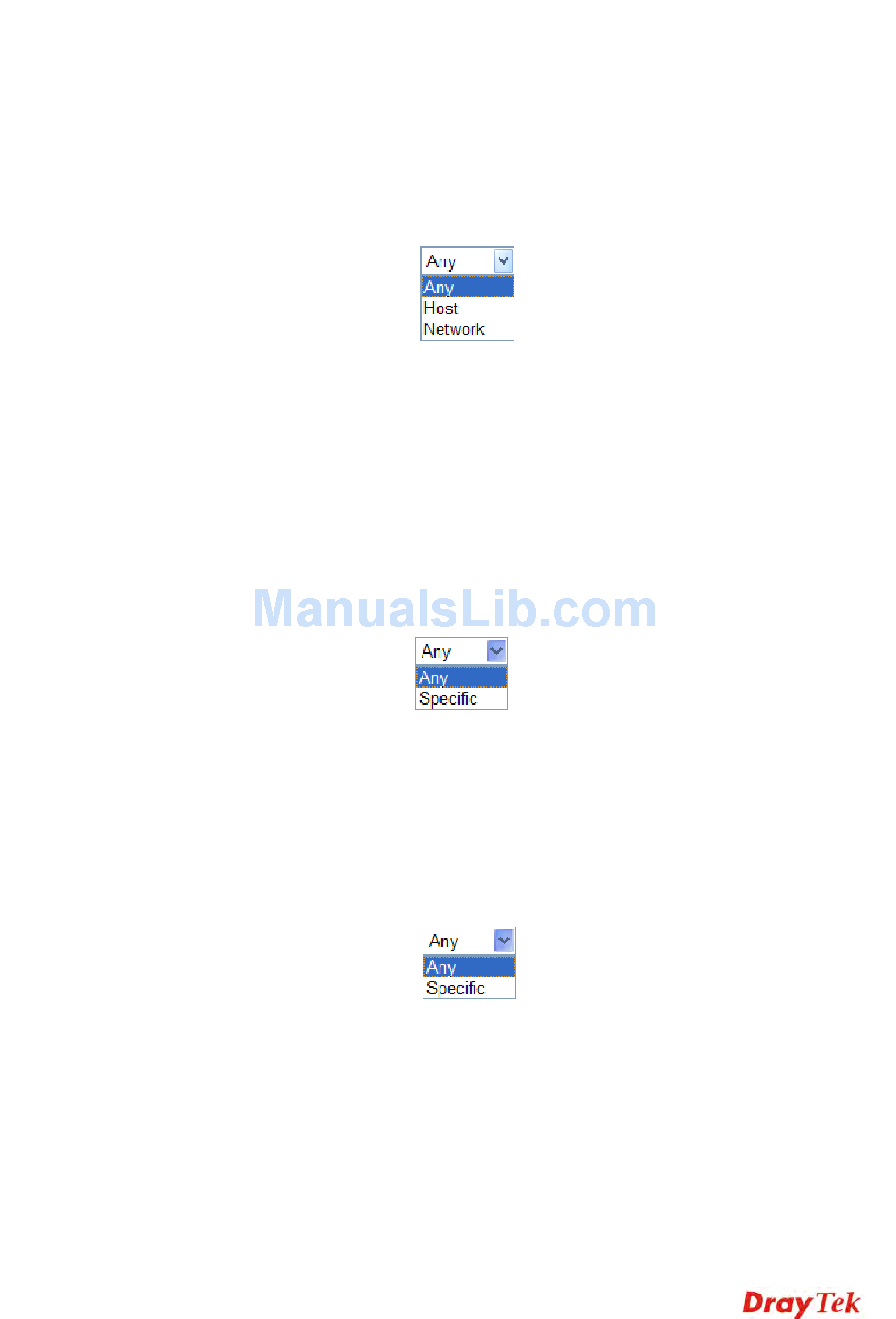

Specify the destination IP filter for this ACE.
Any: No destination IP filter is specified.
Host: Destination IP filter is set to Host. Specify the
destination IP address in the Dest IP Address field that
appears.
Network: Destination IP filter is set to Network. Specify
the destination IP address and destination IP mask in the
DIP Address and Dest IP Mask fields that appear.
Type the Dest IP Address here. This option is available
when you choose Host or Network as destination Dest IP.
Type the Dest IP Mask here. This option is available only
when you choose Network as destination Dest IP.
Specify the ICMP filter for this ACE.
Any: No ICMP filter is specified.
Specific: If you want to filter a specific ICMP filter with
this ACE, you can enter a specific ICMP value. A field for
entering an ICMP value appears.
If you choose Specific as ICMP Type Filter, you have to
type the ICMP Type Value manually. The allowed range is
0 to 255. A frame meeting this ACE matches this ICMP
value.
Specify the ICMP code filter for this ACE.
Any: No ICMP code filter is specified (ICMP code filter
status is "don't-care").
Specific: If you want to filter a specific ICMP code filter
with this ACE, you can enter a specific ICMP code value.
A field for entering an ICMP code value appears.
If you choose Specific as ICMP Code Filter, you have to
type the ICMP Type Value manually. The allowed range is
0 to 255. A frame meeting this ACE matches this ICMP
value.
