4 Replacement Procedures

4.21 DC-IN harness

Removing the DC-IN harness

To remove the DC-IN harness, follow the steps below and refer to Figure 4-44.
1. Take out the DC-IN harness from the slot of the cover assembly.
Installing the DC-IN harness
To install the DC-IN harness, follow the steps below and refer to Figure 4-44.
1. Set the DC-IN harness into the slot of the cover assembly.
NOTE: When replacing a DC-IN harness with a new one, stick a DC-IN insulator to the
DC-IN harness in place.
4-72 [CONFIDENTIAL]

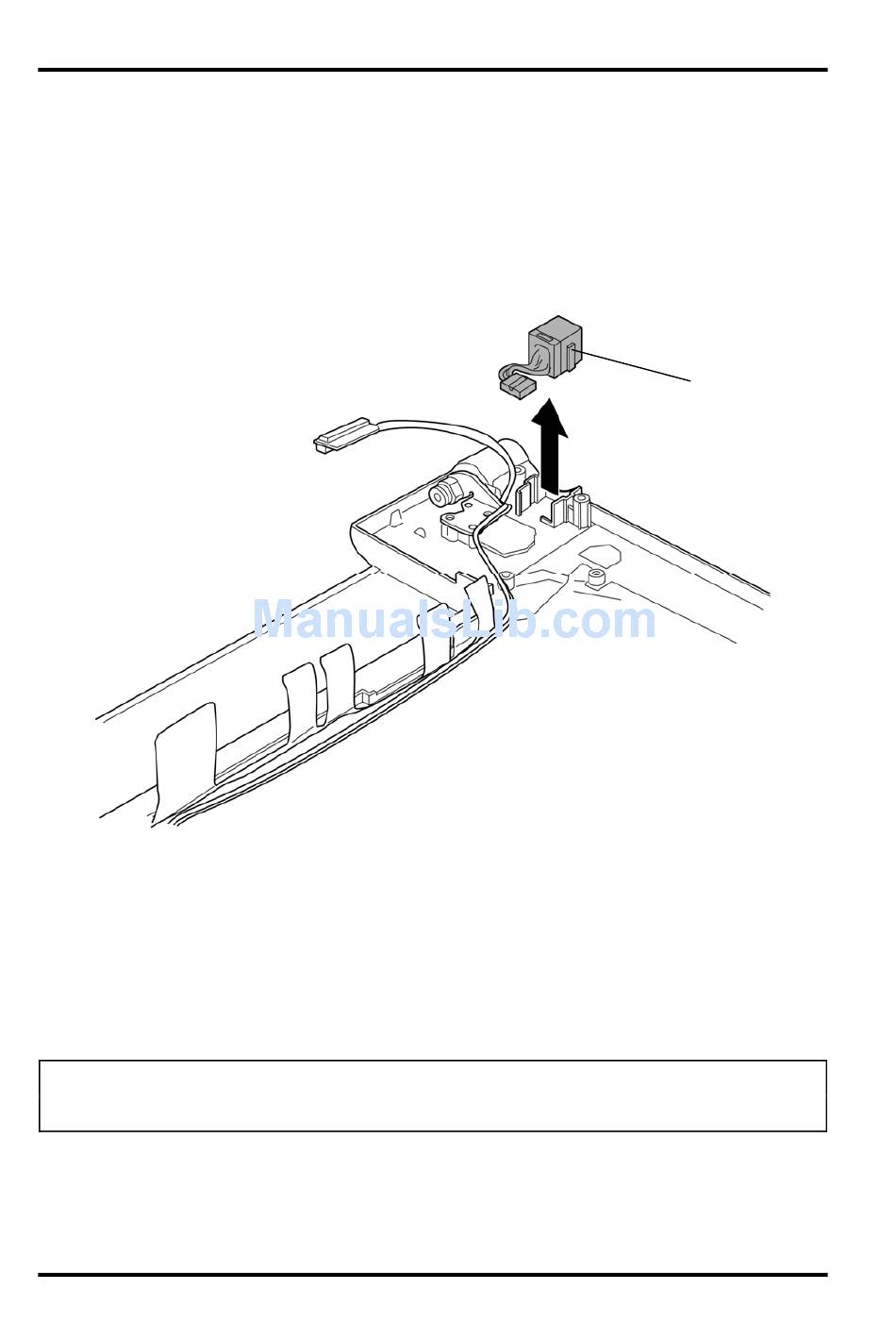

Figure 4-44 Removing the DC-IN harness
PORTÉGÉ R830/Satellite R830 Maintenance Manual (960-880)
4.21 DC-IN harness
DC-IN harness
