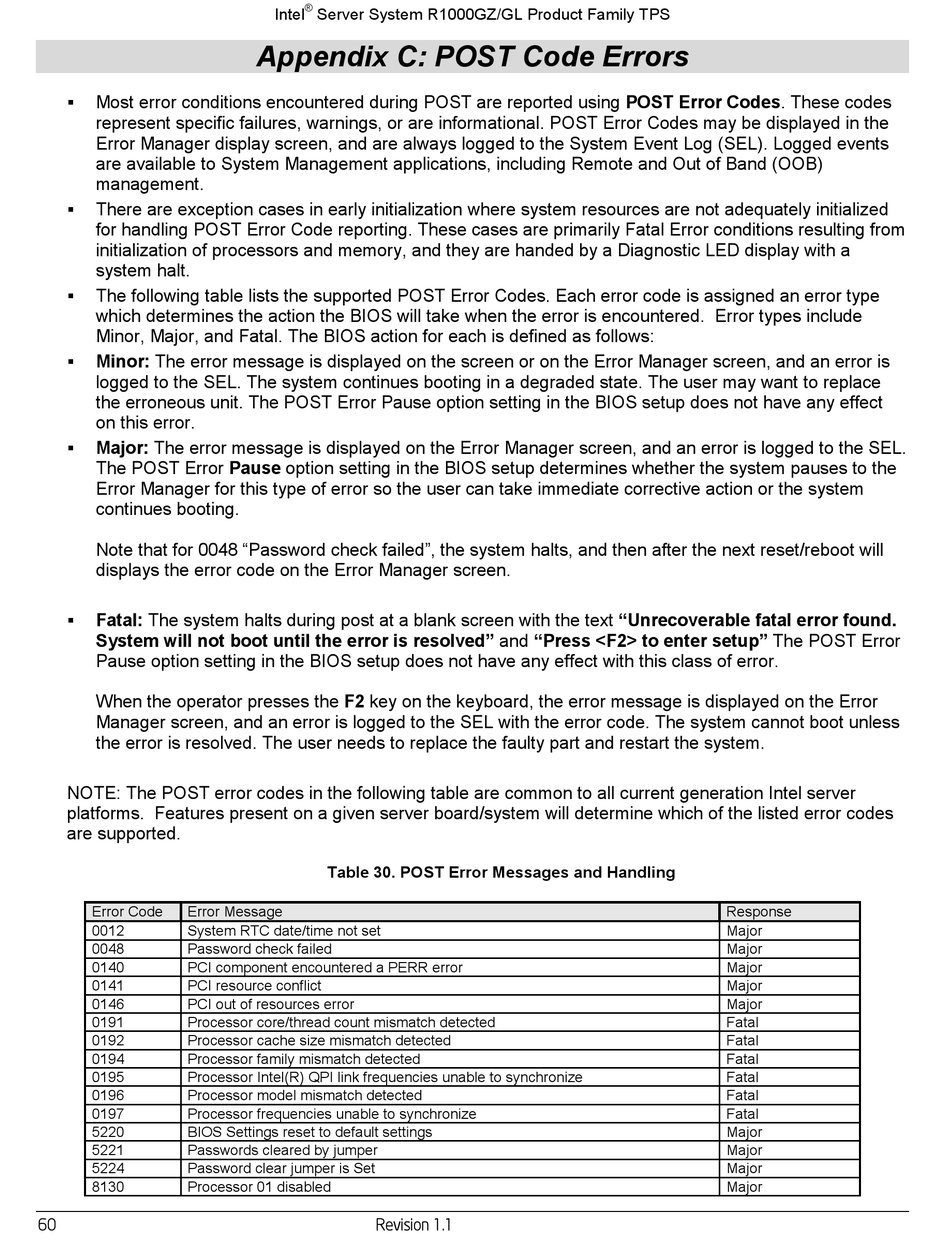

Appendix C: Post Code Errors; Table 30. Post Error Messages And Handling - Intel R1000GZ Technical Product Specification

Most error conditions encountered during POST are reported using POST Error Codes. These codes

represent specific failures, warnings, or are informational. POST Error Codes may be displayed in the
Error Manager display screen, and are always logged to the System Event Log (SEL). Logged events
are available to System Management applications, including Remote and Out of Band (OOB)
management.
There are exception cases in early initialization where system resources are not adequately initialized

for handling POST Error Code reporting. These cases are primarily Fatal Error conditions resulting from
initialization of processors and memory, and they are handed by a Diagnostic LED display with a
system halt.
The following table lists the supported POST Error Codes. Each error code is assigned an error type

which determines the action the BIOS will take when the error is encountered. Error types include
Minor, Major, and Fatal. The BIOS action for each is defined as follows:
Minor: The error message is displayed on the screen or on the Error Manager screen, and an error is

logged to the SEL. The system continues booting in a degraded state. The user may want to replace
the erroneous unit. The POST Error Pause option setting in the BIOS setup does not have any effect
on this error.
Major: The error message is displayed on the Error Manager screen, and an error is logged to the SEL.

The POST Error Pause option setting in the BIOS setup determines whether the system pauses to the
Error Manager for this type of error so the user can take immediate corrective action or the system
continues booting.
Note that for 0048 "Password check failed", the system halts, and then after the next reset/reboot will
displays the error code on the Error Manager screen.
Fatal: The system halts during post at a blank screen with the text "Unrecoverable fatal error found.

System will not boot until the error is resolved" and "Press <F2> to enter setup" The POST Error
Pause option setting in the BIOS setup does not have any effect with this class of error.
When the operator presses the F2 key on the keyboard, the error message is displayed on the Error
Manager screen, and an error is logged to the SEL with the error code. The system cannot boot unless
the error is resolved. The user needs to replace the faulty part and restart the system.
NOTE: The POST error codes in the following table are common to all current generation Intel server
platforms. Features present on a given server board/system will determine which of the listed error codes
are supported.
Error Code Error Message
0012 System RTC date/time not set
0048 Password check failed
0140 PCI component encountered a PERR error
0141 PCI resource conflict
0146 PCI out of resources error
0191 Processor core/thread count mismatch detected
0192 Processor cache size mismatch detected
0194 Processor family mismatch detected
0195 Processor Intel(R) QPI link frequencies unable to synchronize
0196 Processor model mismatch detected
0197 Processor frequencies unable to synchronize
5220 BIOS Settings reset to default settings
5221 Passwords cleared by jumper
5224 Password clear jumper is Set
8130 Processor 01 disabled
60
®
Intel Server System R1000GZ/GL Product Family TPS

Appendix C: POST Code Errors

Table 30. POST Error Messages and Handling

Revision 1.1
Response
Major
Major
Major
Major
Major
Fatal
Fatal
Fatal
Fatal
Fatal
Fatal
Major
Major
Major
Major
