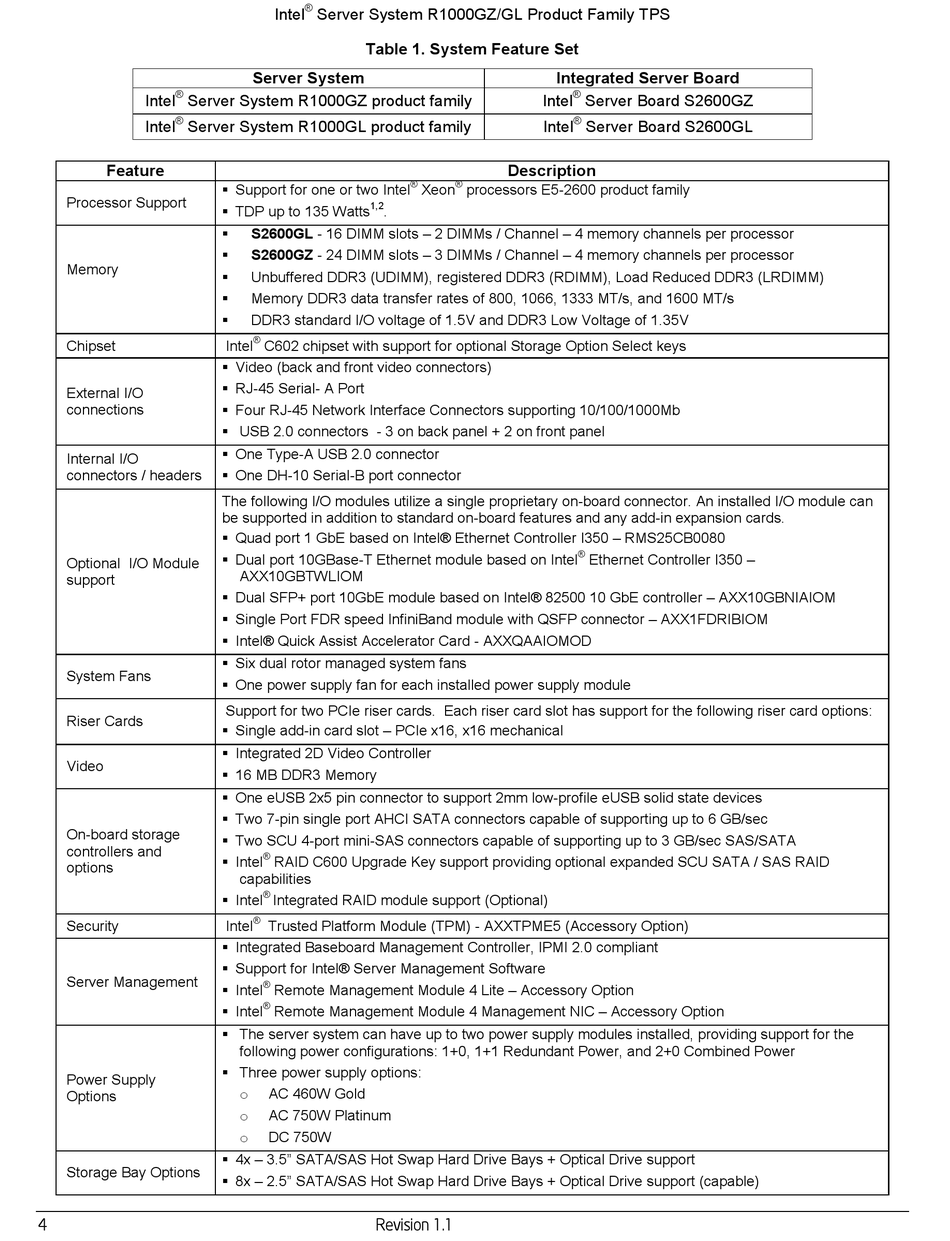

Table 1. System Feature Set - Intel R1000GZ Technical Product Specification

®
Intel Server System R1000GZ product family
®
Intel Server System R1000GL product family
Feature
Processor Support
Memory
Chipset
External I/O
connections
Internal I/O
connectors / headers
Optional I/O Module
support
System Fans
Riser Cards
Video
On-board storage
controllers and
options
Security
Server Management
Power Supply
Options
Storage Bay Options
4
®
Intel Server System R1000GZ/GL Product Family TPS

Table 1. System Feature Set

Server System
 Support for one or two Intel
1,2
 TDP up to 135 Watts .
S2600GL - 16 DIMM slots – 2 DIMMs / Channel – 4 memory channels per processor

S2600GZ - 24 DIMM slots – 3 DIMMs / Channel – 4 memory channels per processor

Unbuffered DDR3 (UDIMM), registered DDR3 (RDIMM), Load Reduced DDR3 (LRDIMM)

Memory DDR3 data transfer rates of 800, 1066, 1333 MT/s, and 1600 MT/s

DDR3 standard I/O voltage of 1.5V and DDR3 Low Voltage of 1.35V

®
Intel C602 chipset with support for optional Storage Option Select keys
 Video (back and front video connectors)
 RJ-45 Serial- A Port
 Four RJ-45 Network Interface Connectors supporting 10/100/1000Mb
 USB 2.0 connectors - 3 on back panel + 2 on front panel
 One Type-A USB 2.0 connector
 One DH-10 Serial-B port connector
The following I/O modules utilize a single proprietary on-board connector. An installed I/O module can
be supported in addition to standard on-board features and any add-in expansion cards.
 Quad port 1 GbE based on Intel® Ethernet Controller I350 – RMS25CB0080
 Dual port 10GBase-T Ethernet module based on Intel
AXX10GBTWLIOM
 Dual SFP+ port 10GbE module based on Intel® 82500 10 GbE controller – AXX10GBNIAIOM
 Single Port FDR speed InfiniBand module with QSFP connector – AXX1FDRIBIOM
 Intel® Quick Assist Accelerator Card - AXXQAAIOMOD
 Six dual rotor managed system fans
 One power supply fan for each installed power supply module
Support for two PCIe riser cards. Each riser card slot has support for the following riser card options:
 Single add-in card slot – PCIe x16, x16 mechanical
 Integrated 2D Video Controller
 16 MB DDR3 Memory
 One eUSB 2x5 pin connector to support 2mm low-profile eUSB solid state devices
 Two 7-pin single port AHCI SATA connectors capable of supporting up to 6 GB/sec
 Two SCU 4-port mini-SAS connectors capable of supporting up to 3 GB/sec SAS/SATA
®
 Intel RAID C600 Upgrade Key support providing optional expanded SCU SATA / SAS RAID
capabilities
®
 Intel Integrated RAID module support (Optional)
®
Intel Trusted Platform Module (TPM) - AXXTPME5 (Accessory Option)
 Integrated Baseboard Management Controller, IPMI 2.0 compliant
 Support for Intel® Server Management Software
®
 Intel Remote Management Module 4 Lite – Accessory Option
®
 Intel Remote Management Module 4 Management NIC – Accessory Option
 The server system can have up to two power supply modules installed, providing support for the
following power configurations: 1+0, 1+1 Redundant Power, and 2+0 Combined Power
 Three power supply options:
o AC 460W Gold
o
AC 750W Platinum
o DC 750W
 4x – 3.5" SATA/SAS Hot Swap Hard Drive Bays + Optical Drive support
 8x – 2.5" SATA/SAS Hot Swap Hard Drive Bays + Optical Drive support (capable)
Revision 1.1
Integrated Server Board
®
Intel Server Board S2600GZ
®
Intel Server Board S2600GL
Description
® ®
Xeon processors E5-2600 product family
®
Ethernet Controller I350 –
