5.4

eUSB SSD Support

The system provides support for a low profile eUSB SSD storage device. A 2mm 2x5-pin connector labeled
"eUSB SSD" near the rear I/O section of the server board is used to plug this small flash storage device into.
Bottom View
eUSB features include:
• 2 wire small form factor Universal Serial Bus 2.0 (Hi-Speed USB) interface to host
Read Speed up to 35 MB/s and write Speed up to 24 MB/s
•
• Capacity range from 256GB to 32GB
• Support USB Mass Storage Class requirements for Boot capability
5.5

SATA DOM Support

The system has support for up to two vertical low profile Innodisk* SATA Disk-on-Module (DOM) devices.
Each installed SATA DOM plugs directly into one of the white 7-pin AHCI SATA ports on the server board,
which provide both power and I/O signals.
SATA DOM features include:
• Ultra Low Profile
• High speed and capacity
• Built-in VCC at pin 7
Note: Visit Intel.com for a list of supported InnoDisk SATA DOM parts.
®
Intel Server System R1000GZ/GL Product Family TPS
Top View

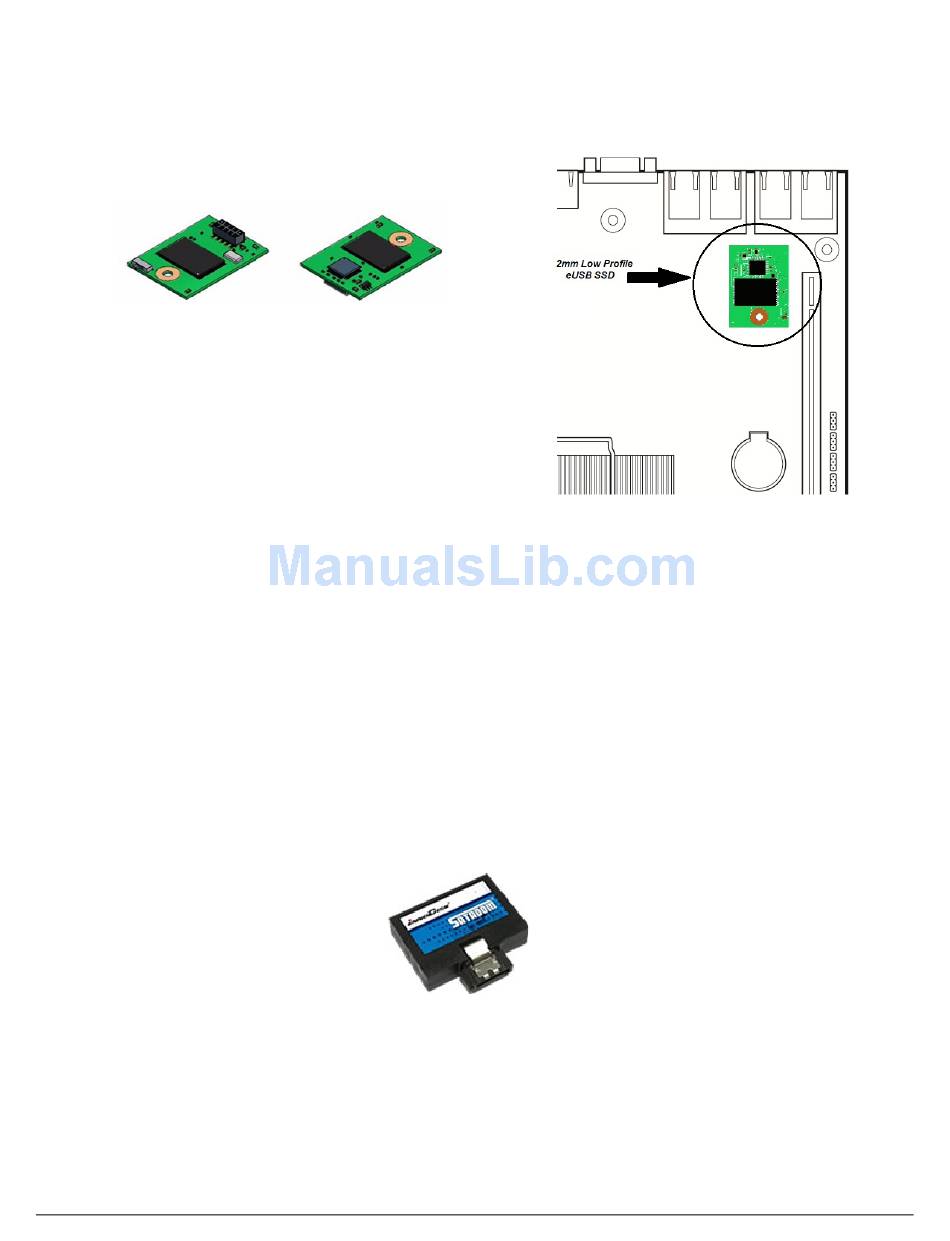

Figure 21. Low Profile eUSB SSD Support

Figure 22. InnoDisk* Low Profile SATA DOM

Revision 1.1
35
