5.2

3.5" Hard Disk Drive Support

The server is available with support for four 3.5" hard disk drives as illustrated below.
The drive bay can support either SATA or SAS hard disk drives. Mixing of drive types within the hard drive bay
is not supported. Hard disk drive type is dependent on the type of host bus controller used, SATA only or SAS.
Each 3.5" hard disk drive is mounted to a drive tray, allowing for hot swap extraction and insertion. Drive trays
have a latching mechanism that is used to extract and insert drives from the chassis, and lock the tray in place.
Light pipes integrated into the drive tray assembly direct light emitted from Amber drive status and Green
activity LEDs located next to each drive connector on the backplane, to the drive tray faceplate, making them
visible from the front of the system.
Amber Status LED
Green Activity LED
Power on with no drive activity
Power on with drive activity
Green
Power on and drive spun down
Power on and drive spinning up
32
®
Intel Server System R1000GZ/GL Product Family TPS

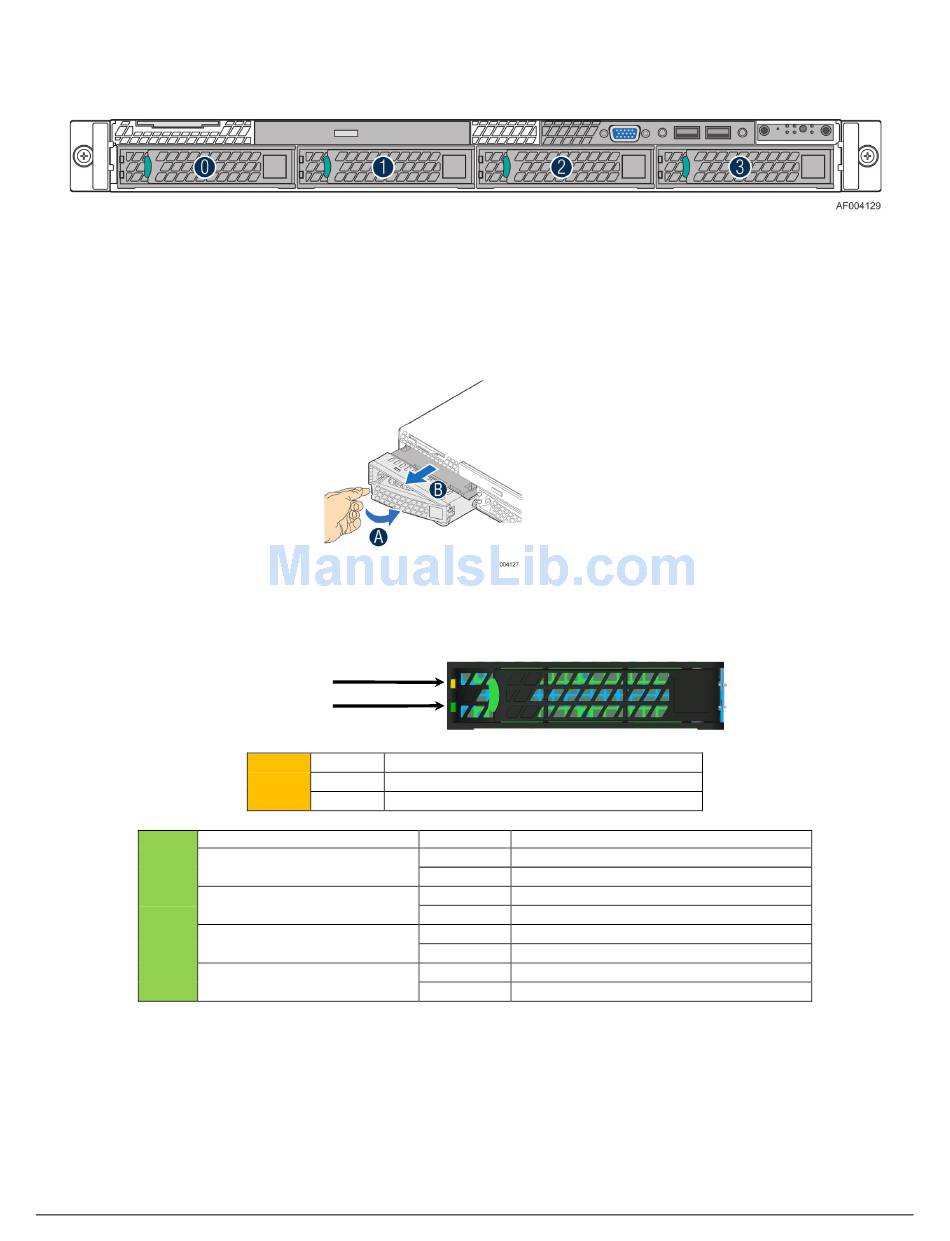

Figure 19. 3.5" Hard Drive Bay Configuration

Off No access and no fault
Amber Solid On Hard Drive Fault has occured
Blink RAID rebuild in progress (1 Hz), Identify (2 Hz)
Condition Drive Type
SAS
SATA
SAS
SATA
SAS
SATA
SAS
SATA
Revision 1.1
Behavior
LED stays on
LED stays off
LED blinks off when processing a command
LED blinks on when processing a command
LED stays off
LED stays off
LED blinks
LED stays off
