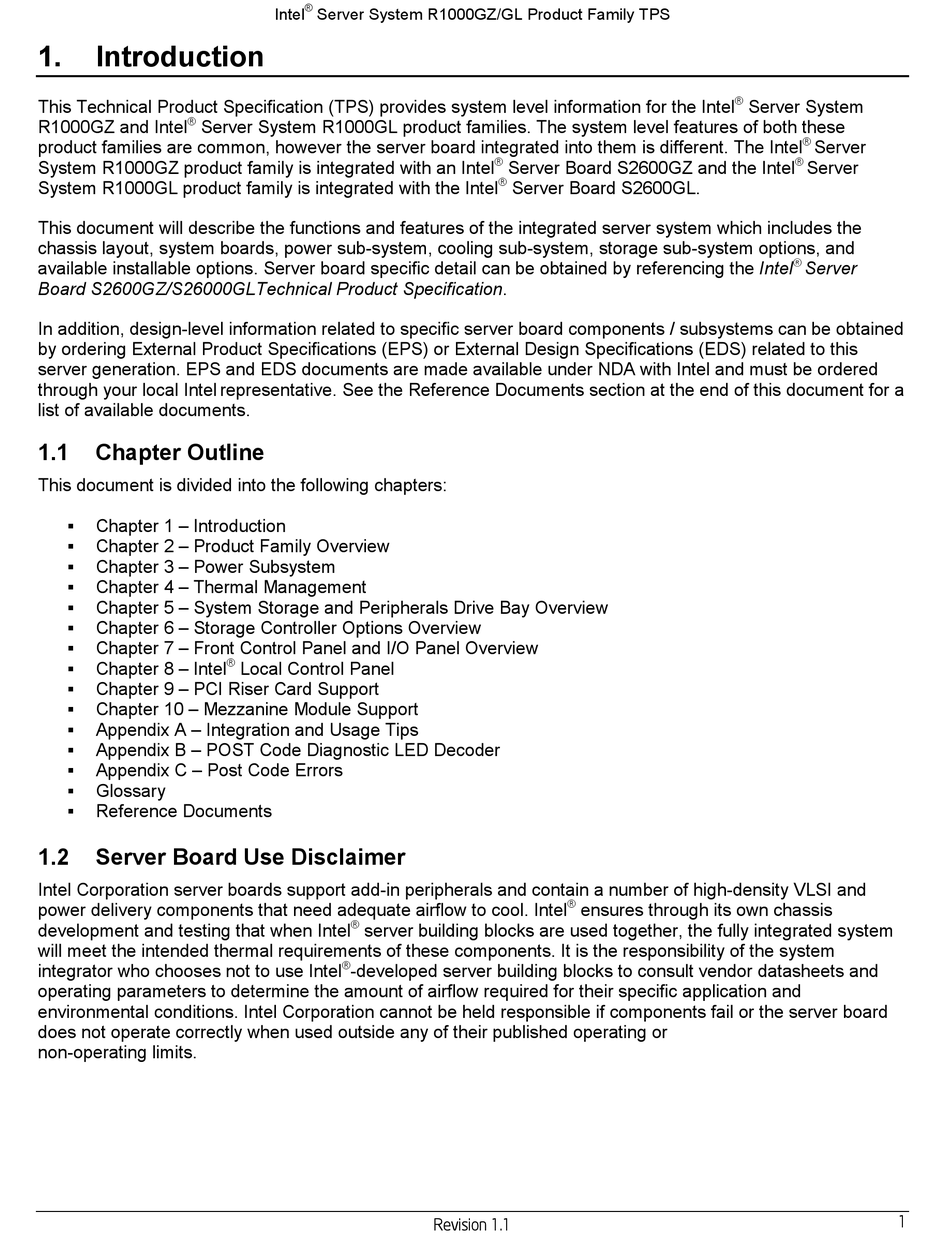

1.

Introduction

This Technical Product Specification (TPS) provides system level information for the Intel
®
R1000GZ and Intel Server System R1000GL product families. The system level features of both these
product families are common, however the server board integrated into them is different. The Intel
System R1000GZ product family is integrated with an Intel
System R1000GL product family is integrated with the Intel
This document will describe the functions and features of the integrated server system which includes the
chassis layout, system boards, power sub-system, cooling sub-system, storage sub-system options, and
available installable options. Server board specific detail can be obtained by referencing the Intel
Board S2600GZ/S26000GLTechnical Product Specification.
In addition, design-level information related to specific server board components / subsystems can be obtained
by ordering External Product Specifications (EPS) or External Design Specifications (EDS) related to this
server generation. EPS and EDS documents are made available under NDA with Intel and must be ordered
through your local Intel representative. See the Reference Documents section at the end of this document for a
list of available documents.
1.1

Chapter Outline

This document is divided into the following chapters:
Chapter 1 – Introduction

Chapter 2 – Product Family Overview

Chapter 3 – Power Subsystem

Chapter 4 – Thermal Management

Chapter 5 – System Storage and Peripherals Drive Bay Overview

Chapter 6 – Storage Controller Options Overview

Chapter 7 – Front Control Panel and I/O Panel Overview

Chapter 8 – Intel

Chapter 9 – PCI Riser Card Support

Chapter 10 – Mezzanine Module Support

Appendix A – Integration and Usage Tips

Appendix B – POST Code Diagnostic LED Decoder

Appendix C – Post Code Errors

Glossary

Reference Documents

1.2

Server Board Use Disclaimer

Intel Corporation server boards support add-in peripherals and contain a number of high-density VLSI and
power delivery components that need adequate airflow to cool. Intel
development and testing that when Intel
will meet the intended thermal requirements of these components. It is the responsibility of the system
integrator who chooses not to use Intel
operating parameters to determine the amount of airflow required for their specific application and
environmental conditions. Intel Corporation cannot be held responsible if components fail or the server board
does not operate correctly when used outside any of their published operating or
non-operating limits.
®
Intel Server System R1000GZ/GL Product Family TPS
®
Local Control Panel
®
server building blocks are used together, the fully integrated system
®
-developed server building blocks to consult vendor datasheets and
®
Server Board S2600GZ and the Intel
®
Server Board S2600GL.
®
ensures through its own chassis
Revision 1.1
®
Server System
®
Server
®
Server
®
Server
1
