Chassis Dimensions; Figure 1. Chassis Dimensions - Intel R1000GZ Technical Product Specification

Supported Rack
Mount Kit Accessory
Options
Notes:
1) With a system fan failure, processor throttling may occur
2) Processor throttling may occur with systems configured using the following Intel
E5-2690 , E5-2643
2.1

Chassis Dimensions

®
Intel Server System R1000GZ/GL Product Family TPS
 Tool-less rack mount rail kit – Intel Product Code – AXXPRAIL
 Value rack mount rail kit – Intel Product Code – AXXVRAIL
 Cable Management Arm – Intel Product Code – AXX1U2UCMA (*supported with AXXPRAIL only)
 2-post fixed mount bracket kit – Intel Product Code – AXX2POSTBRCKT

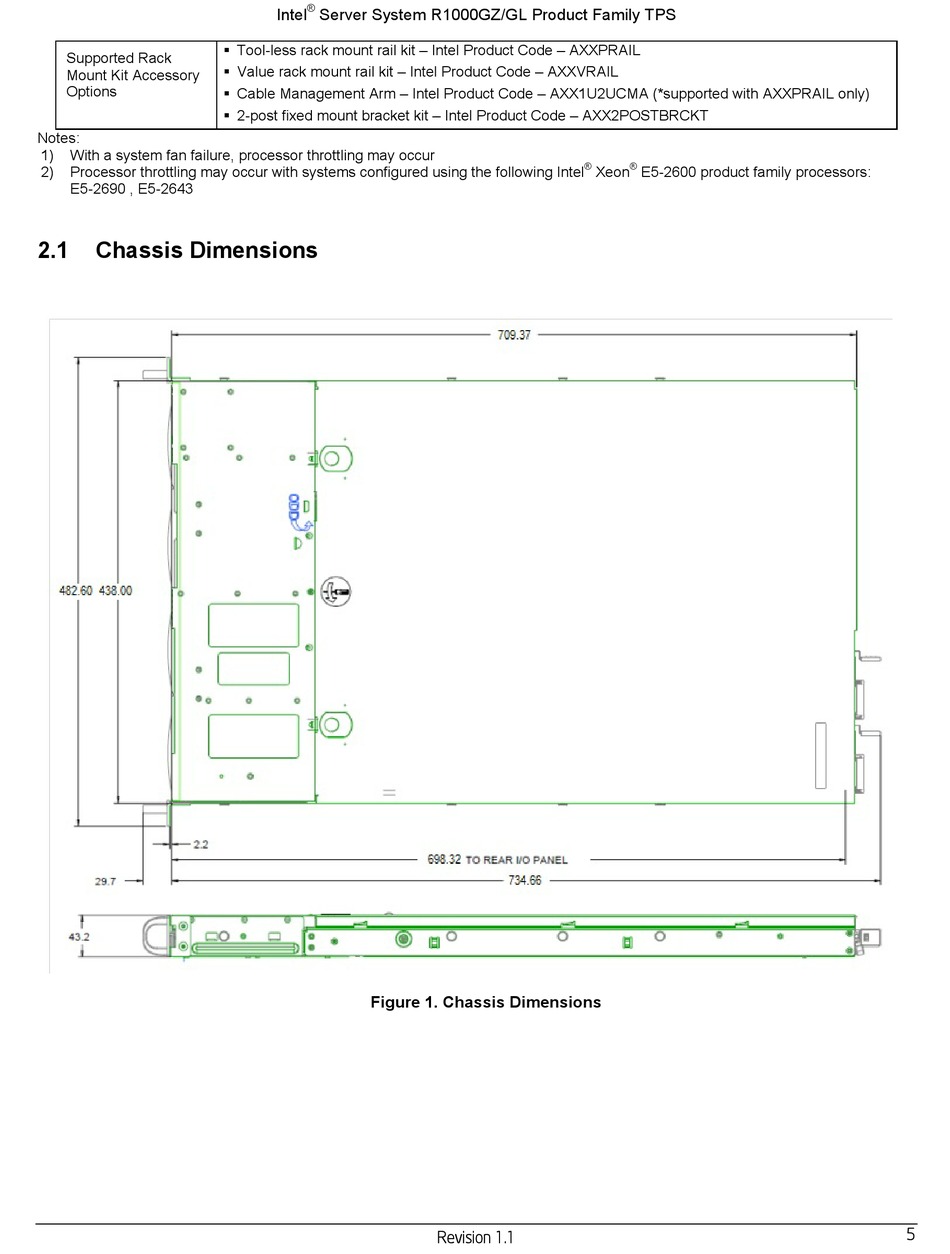

Figure 1. Chassis Dimensions

®
Xeon
Revision 1.1
®
E5-2600 product family processors:
5
