Server Board Features Overview
The following illustration provides a general overview of the server board, identifying key feature and
®
component locations. The majority of the items identified are common between the Intel
Server Board
S2600GL and S2600GZ.
®

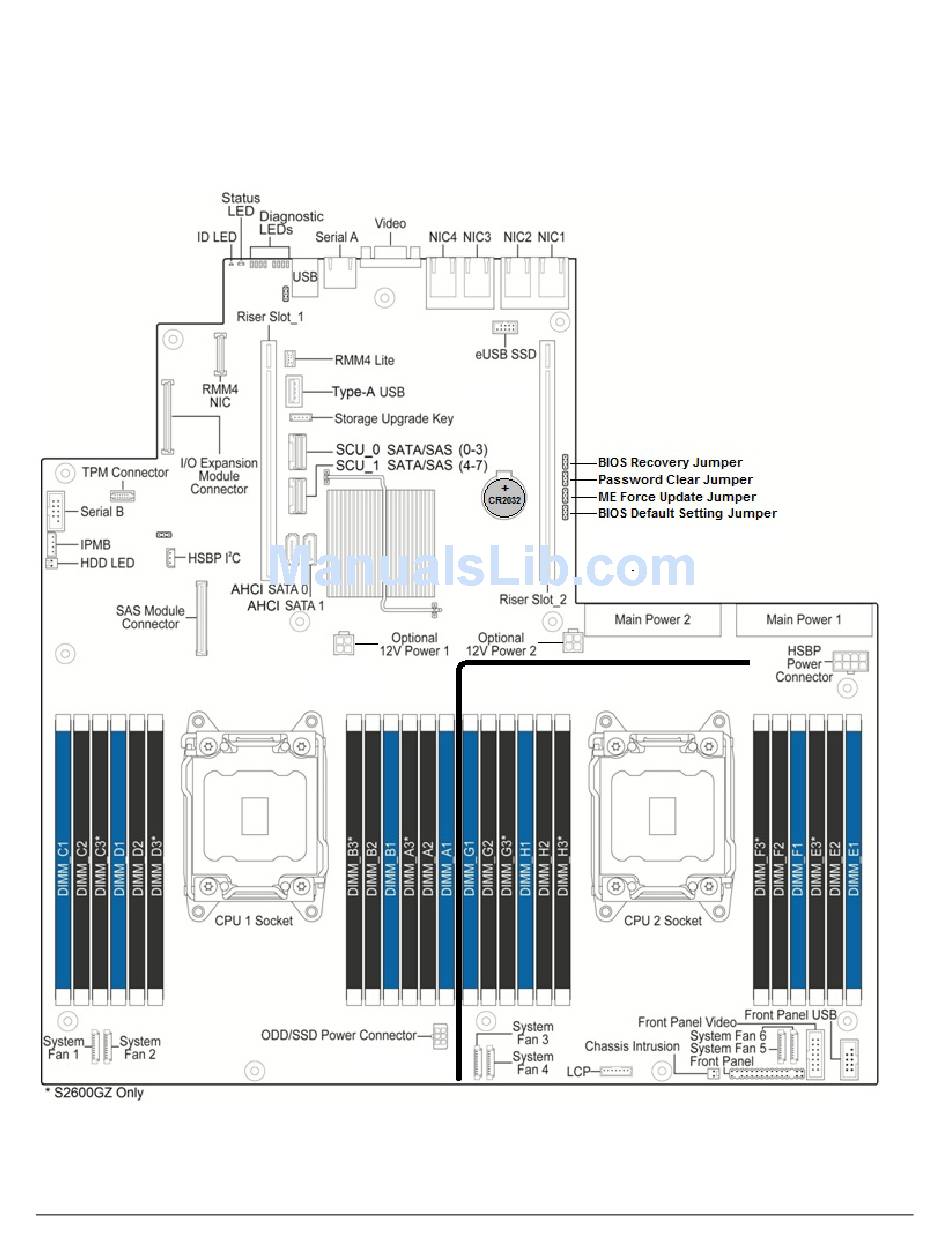

Figure 7. Intel
Server Board S2600GZ
