Figure 8. Intel ® Light-Guided Diagnostic Leds - Server Board - Intel R1000GZ Technical Product Specification

10
®
Intel Server System R1000GZ/GL Product Family TPS
Label Description
A System ID
B System Status
C POST Code Diagnostics
D 12V Stand-by Power Present
E CPU-2 Fault
F System Fan #6 Fan Fault
G System Fan #5 Fan Fault
H System Fan #4 Fan Fault
®

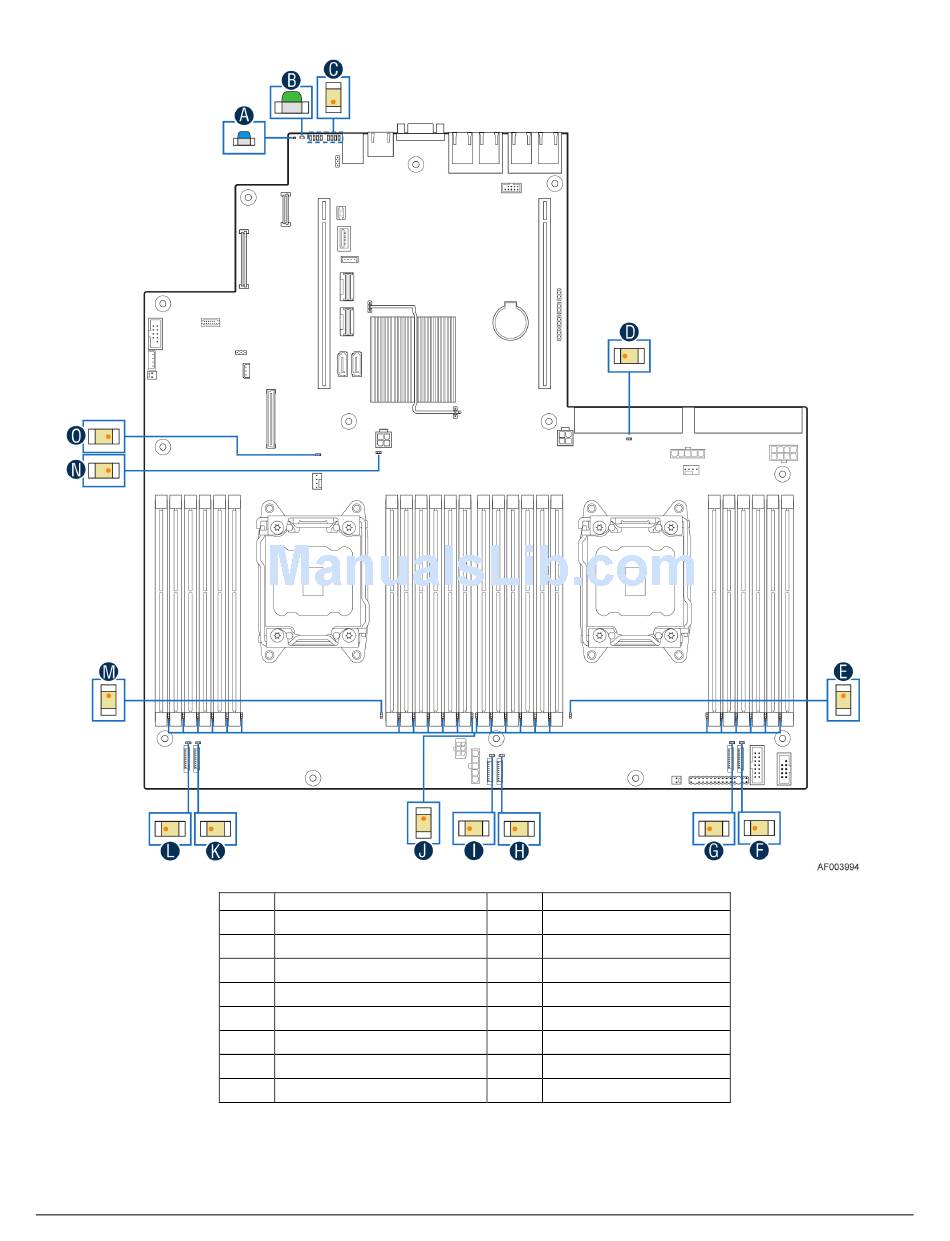

Figure 8. Intel Light-Guided Diagnostic LEDs - Server Board
Revision 1.1
Label Description
I System Fan #3 Fan Fault
J Memory Fault
K System Fan #2 Fan Fault
L System Fan #1 Fan Fault
M CPU-1 Fault
N CATERR
O System Power Good
