Navigating in
Setup Mode
Note!
An external keyboard cannot be
used inside the Setup Mode.
Intermec EasyCoder 501 E – Installation & Operation Ed. 1

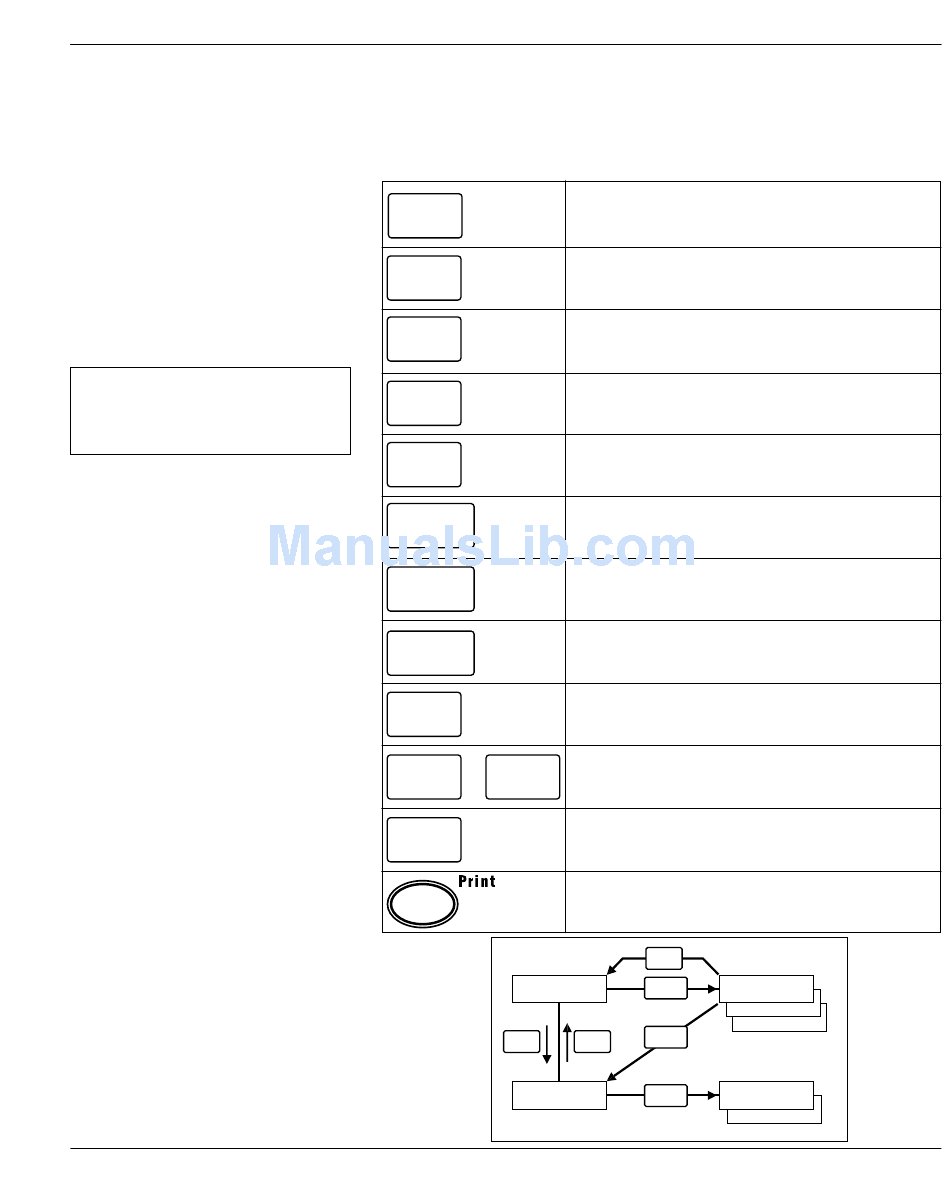

While going through the setup procedure, you are guided by texts
in the printer's display. You can navigate between setup menus,
acknowledge displayed values, select or type new values, etc. by
using the keys on the printer's keyboard.
F1
F 2
F 3
F 4
F 5
Setup
F eed
Enter
,
0 9
-
C
HEADLINE A:
STACK A
F 5
HEADLINE B:
STACK B
View the current level of the LSS setup.
Decrease the LSS setup value 1 step.
Increase the LSS setup value 1 step.
Move up one level, scroll back in a stack of options,
decrease the contrast 1 step, or decrease the LSS value
10 steps.
Move down one level, scroll forward in a stack of options,
increase the contrast value 1 step, or increase the LSS
value 10 steps.
Exit the Setup Mode and save parameter values.
(Can be used anywhere in the Setup Mode.)
Auto-adjust the label stop sensor and produce a form-
feed.
Acknowledge and move to next menu.
Specify negative values (leading position).
Enter numeric values.
Return to the previous menu or clear erroneously entered
values.
Print test labels.
C
STACK A:
Enter
OPTION 1
OPTION 2
OPTION 3
Enter
F 4
• Press F4 to browse back.
• Press F5 to browse forward.
• Press Enter to select an option.
STACK B:
Enter
ENABLE
DISABLE
