Setup Parameters, cont.
Service, cont.
Intermec EasyCoder 501 E – Installation & Operation Ed. 1

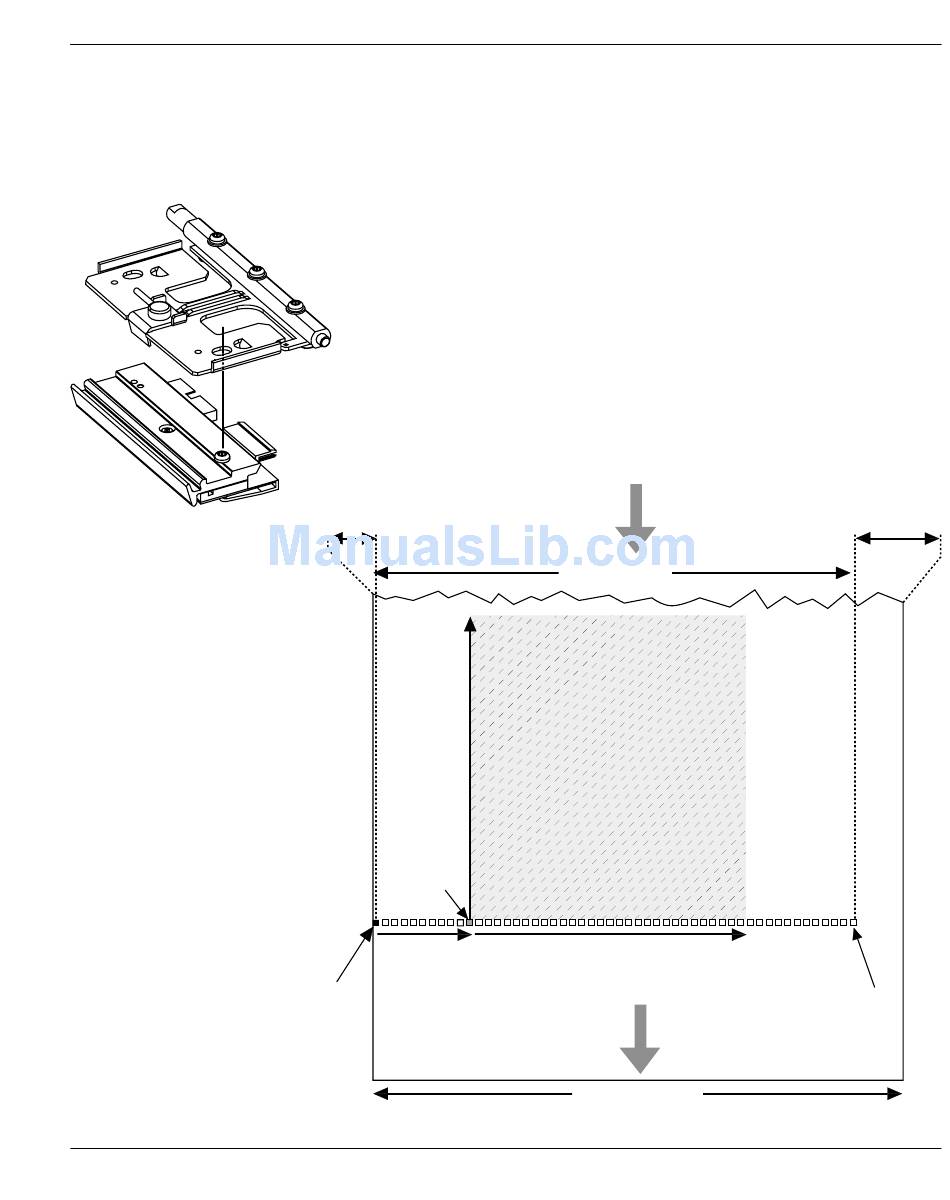

Print Window
11.81 dots/mm (300 dpi) printhead in right-hand position
The 11.81 dots/mm printhead should only be fi tted in the right-hand
position (see illustration). Dot No. 0 is situated 0.8 mm (0.03 in)
inwards of the inner edge of the media. Since the maximum print
width is 108.3 mm (4.26 in) and the maximum media width is
120 mm (4.7 in), this leaves a margin of at least 10.9 mm (0.43
in) along the outer edge of the media, where no printing can be
performed.
0.8 mm (0.03 in)
Length
Origin
Dot-line
on printhead
X-start
Dot 0
From
media supply
108.3 mm (4.26 in)
PRINT
WINDOW
Width
FEED
DIRECTION
max. 120 mm (4.7 in)
Chapter 7 Setting Up the Printer
10.9 mm (0.43 in)
Dot 1279
