Intermec EasyCoder 501 E Installation & Operation Manual page 69

Chapter 7 Setting Up the Printer
Setup Parameters, cont.
Service, cont.
68
Testprint

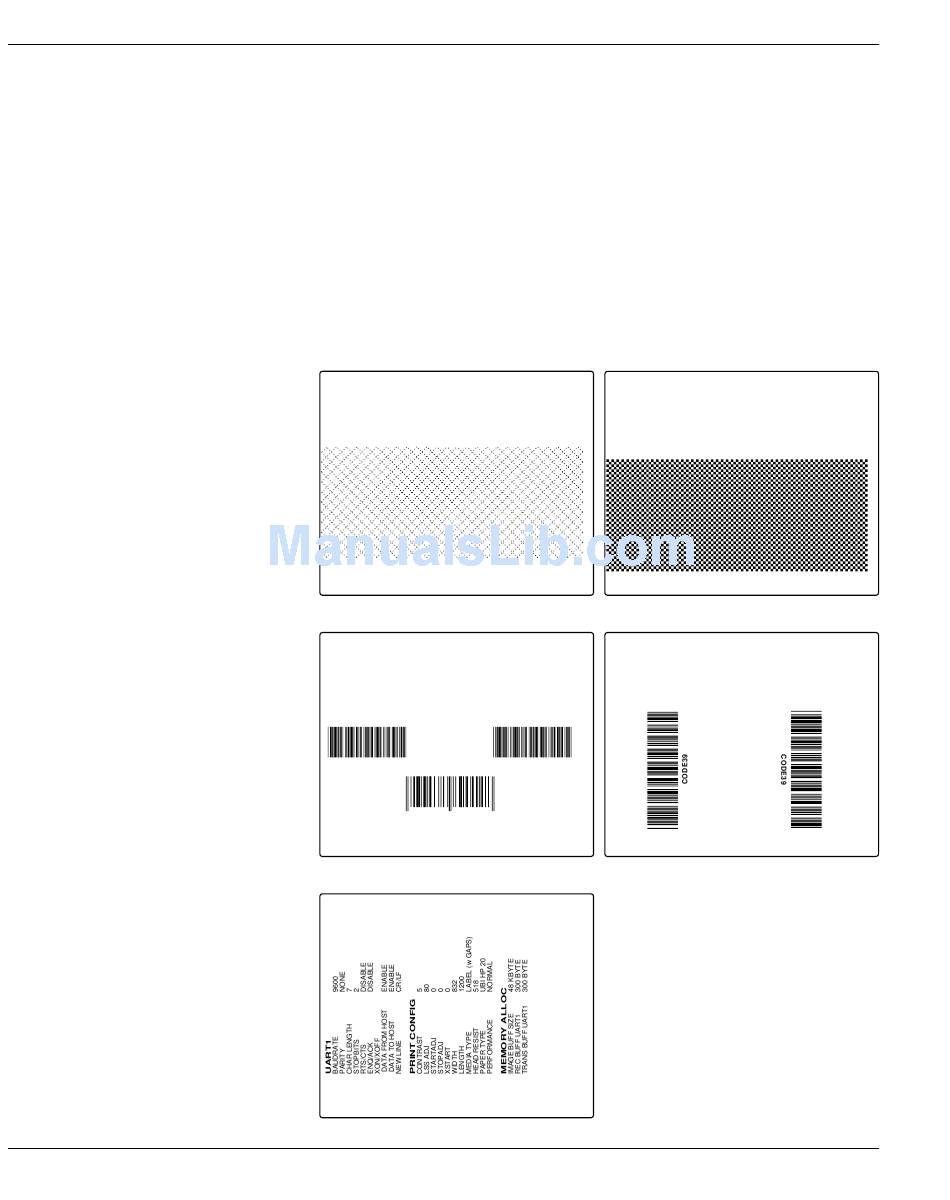

This option allows you to print a series of test labels as illustrated
below. The labels are the same as in the "Test Label" option in the
Intermec Shell program, see Chapter 9.
First, four test labels intended to facilitate adjustment of the
printhead pressure and alignment are printed. Then comes one or
more labels showing the printer's current setup, before the loop
starts all over again.
618 ohms / 8 dots
Test Label 1
CODE39
1 23 45 67 890 12 8
Test Label 3
Test Label 5...
Intermec EasyCoder 501 E – Installation & Operation Ed. 1
Test Label 2
CODE39
Test Label 4
