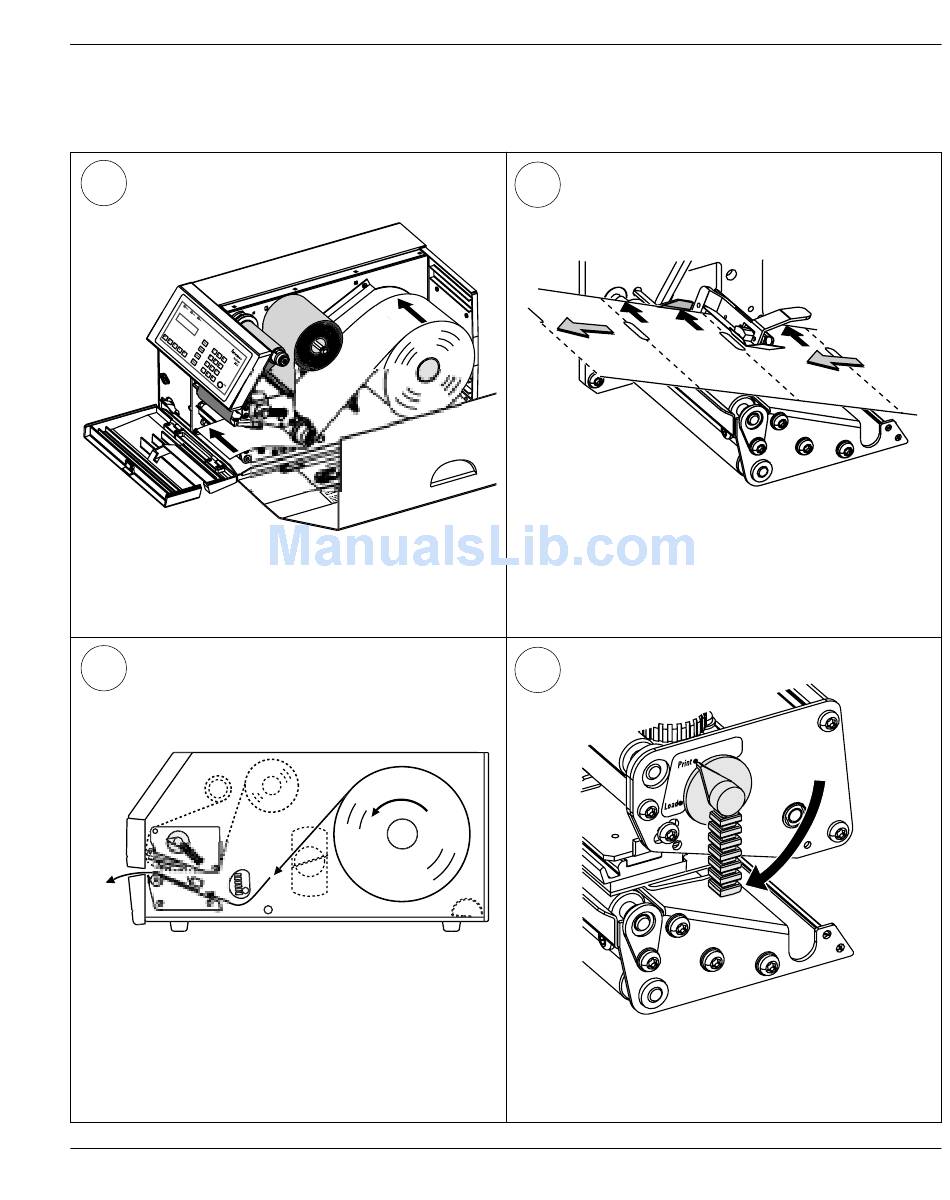

Tear-Off, cont.
6
Pull out the media and route it under the slack
absorber and through the print unit as illus-
trated. Then push the roll inward on the hub.
8
This diagram shows the media path.
Intermec EasyCoder 501 E – Installation & Operation Ed. 1
7
Route the media under the guide plate of the
label stop sensor and push it inwards towards
the center section as far as it will go.
9
Turn the printhead lift lever to "Print" posi-
Chapter 5 Media Load
tion.
