Internal Batch Takeup, cont.

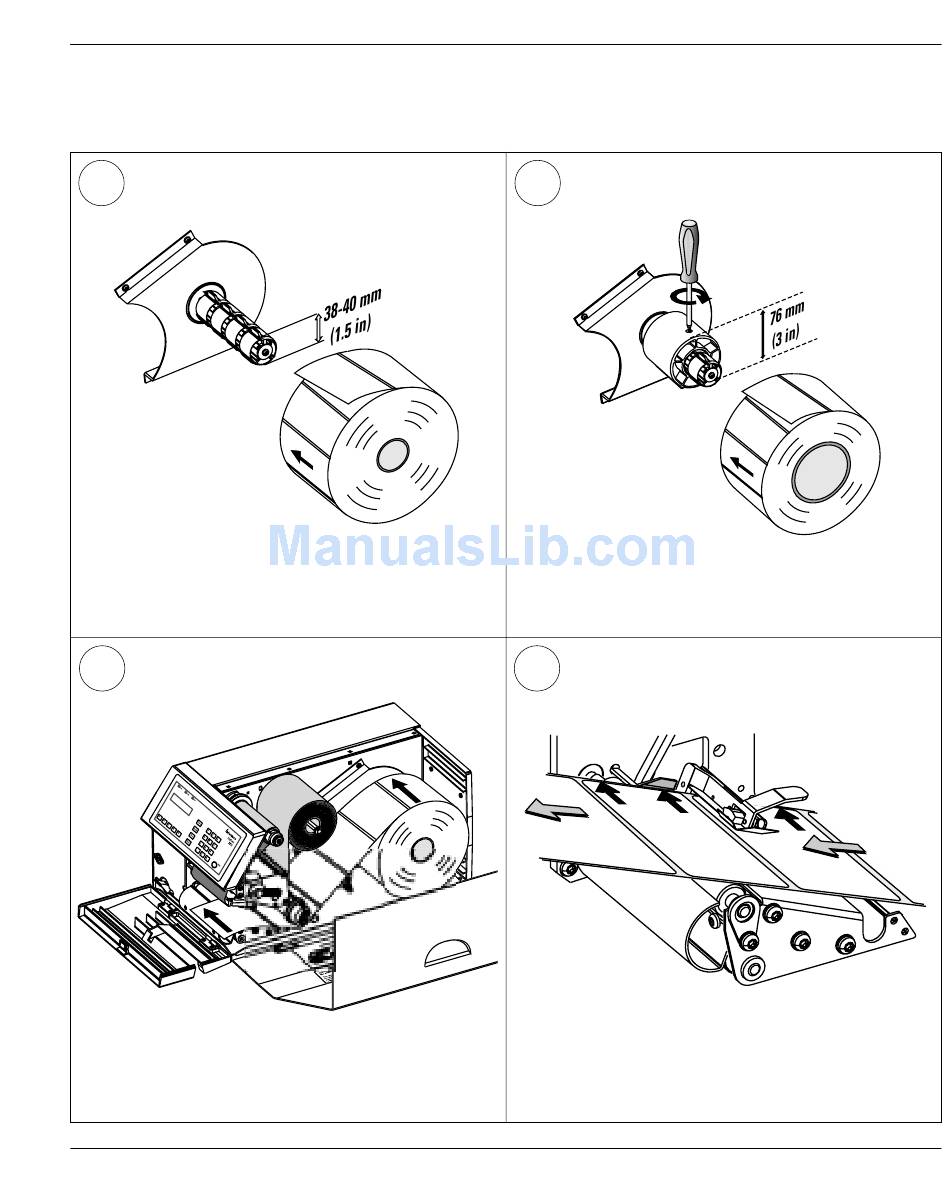

7a
Fit a new roll of media on the supply hub and
push the roll inwards as far as it will go.
8
Pull out the media and route it under the slack
absorber and through the print unit as illus-
trated. Then push the roll inward on the hub.
Intermec EasyCoder 501 E – Installation & Operation Ed. 1
7b
In case of a media roll with a 76.2 mm (3
inches) core, fi rst fi t the adapter on the media
supply hub.
9
Route the media under the guide plate of the
label stop sensor and push it inwards towards
the center section as far as it will go.
Chapter 5 Media Load
43
