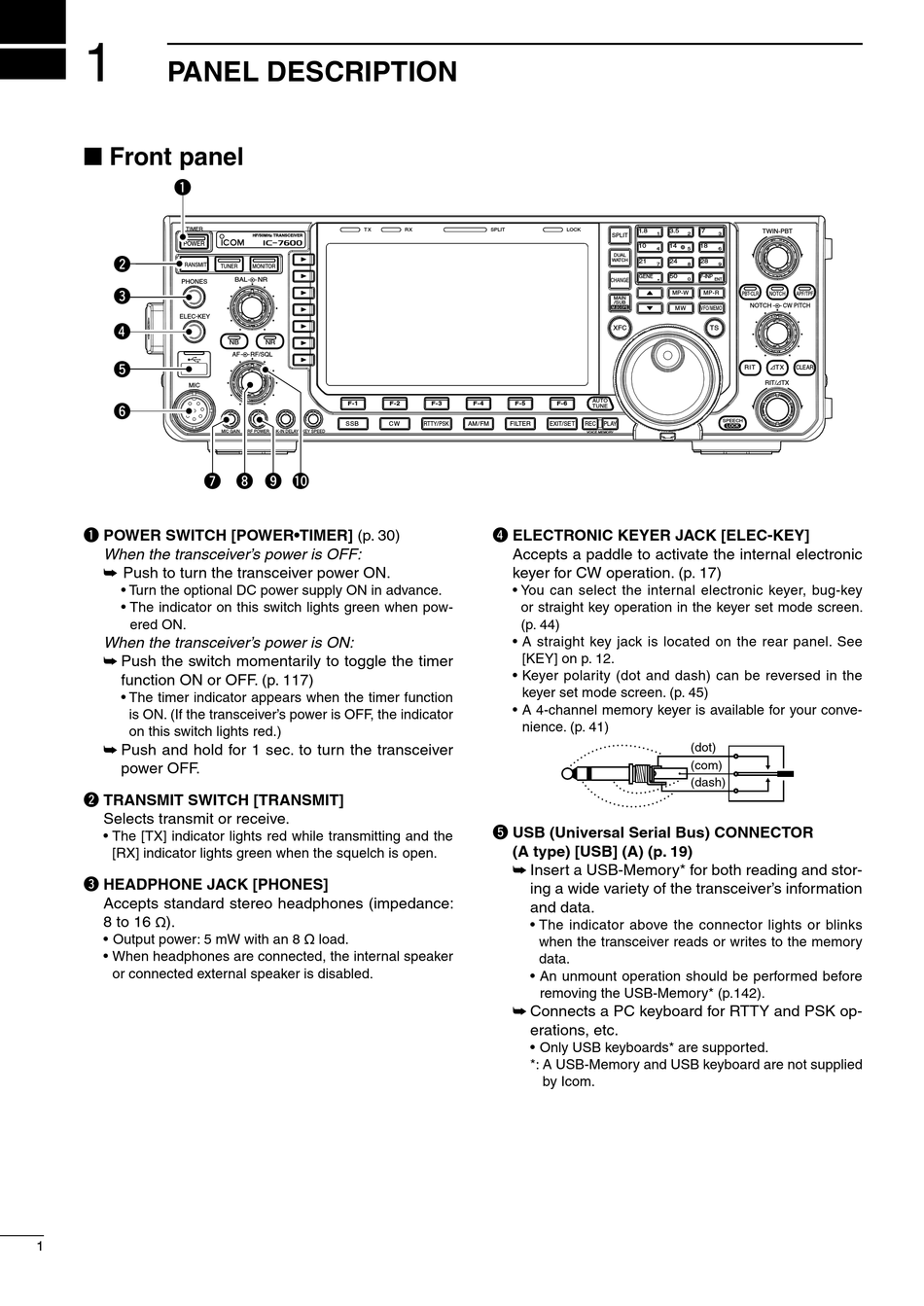

PANEL DESCRIPTION

■ Front panel

q
TIMER
POWER
w
TRANSMIT
PHONES
e
ELEC-KEY
r
t
MIC
y
u i o !0
q POWER SWITCH [POWER•TIMER] (p. 30)
  When the transceiver's power is OFF:
➥ Push to turn the transcever power ON.
• Turn the optonal DC power supply ON n advance.
• The ndcator on ths swtch lghts green when pow-
ered ON.
  When the transceiver's power is ON:
➥ Push the swtch momentarly to toggle the tmer
functon ON or OFF. (p. 117)
• The tmer ndcator appears when the tmer functon
s ON. (If the transcever's power s OFF, the ndcator
on ths swtch lghts red.)
➥ Push and hold for 1 sec. to turn the transcever
power OFF.
w TRANSMIT SWITCH [TRANSMIT]
Selects transmt or receve.
• The [TX] ndcator lghts red whle transmttng and the
[RX] ndcator lghts green when the squelch s open.
e HEADPHONE JACK [PHONES]
Accepts standard stereo headphones (mpedance:
8 to 16
).
ø
• Output power: 5 mW wth an 8 ø load.
• When headphones are connected, the nternal speaker
or connected external speaker s dsabled.
1
T X
HF/50MHz TRANSCEIVER
TUNER
MONITOR
BAL
NR
NB
NR
AF
RF/SQL
F- 1
F- 2
SSB
CW
MIC GAIN
RF POWER BK-IN DELAY KEY SPEED
RX
SPLIT
LOCK
F- 3
F- 4
F- 5
F- 6
RTTY/PSK
AM/FM
FILTER
EXIT/SET
r ELECTRONIC KEYER JACK [ELEC-KEY]
Accepts a paddle to actvate the nternal electronc
keyer for CW operaton. (p. 17)
• You can select the nternal electronc keyer, bug-key
or straght key operaton n the keyer set mode screen.
(p. 44)
• A straght key jack s located on the rear panel. See
[KEY] on p. 12.
• Keyer polarty (dot and dash) can be reversed n the
keyer set mode screen. (p. 45)
• A 4-channel memory keyer s avalable for your conve-
nence. (p. 41)
t USB (Universal Serial Bus) CONNECTOR
(A type) [USB] (A) (p. 19)
➥ Insert a USB-Memory* for both readng and stor-
ng a wde varety of the transcever's nformaton
and data.
• The ndcator above the connector lghts or blnks
when the transcever reads or wrtes to the memory
data.
• An unmount operaton should be performed before
removng the USB-Memory* (p.142).
➥ Connects a PC keyboard for RTTY and PSK op-
eratons, etc.
• Only USB keyboards* are supported.
*: A USB-Memory and USB keyboard are not suppled
by Icom.
