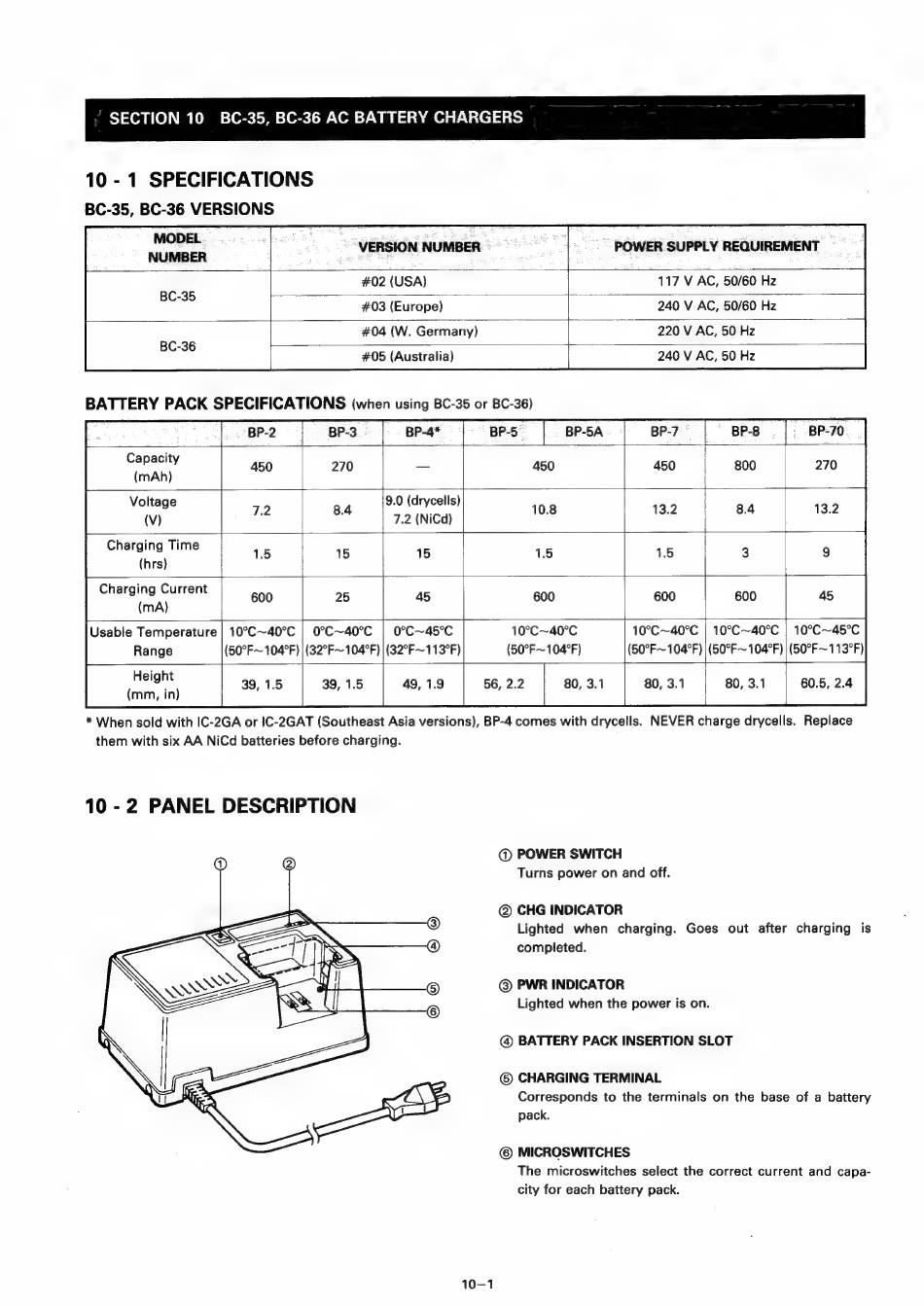

SECTION 10 ВС-35, BC-36 AC BATTERY CHARGERS
10-1 SPECIFICATIONS
BC-35, BC-36 VERSIONS
VERSION NUMBER POWER SUPPLY REQUIREMENT
#02 (USA)
#03 (Europe)
3:04 (W. Germany)
#05 (Australia)
117 V AC, 50/60 Hz
240 V AC, 50/60 Hz
220 V AC, 50 Hz
240 V AC, 50 Hz
BATTERY PACK SPECIFICATIONS (when using BC-35 or BC-36)
Capacity
(mAh)
Voltage
(V)
Charging Time
(hrs)
9.0 (drycells)
fe 7.2 (NiCd)
8.4
1.5 15 15
Charging Current
(mA) 600 25
600
Usable Temperature
Range
(50°F—104°F)
10°C~40°C | 0°C~40°C
(32°F~104°F)
0°C~45°C
(32°F~113°F)
10°C~40°C
(50°F~104°F)
10°C~40°C
(50°F~104°F)
10°C~40°C
(50°F ~ 104°F)
ï
10°C—45°C
(50°F—113°F)
|}
39, 1.5 39, 1.5 80, 3.1 80, 3.1 60.5, 2.4
* When sold with IC-2GA or IC-2GAT (Southeast Asia versions), BP-4 comes with drycells. NEVER charge drycells. Replace
them with six AA NiCd batteries before charging.
10 - 2 PANEL DESCRIPTION
@ POWER SWITCH
Turns power on and off.
@ CHG INDICATOR
Lighted when charging. Goes out after charging is
completed.
@ PWR INDICATOR
Lighted when the power is on.
@ BATTERY PACK INSERTION SLOT
© CHARGING TERMINAL
Corresponds to the terminals on the base of a battery
pack.
© MICROSWITCHES
The microswitches select the correct current and capa-
city for each battery pack.
