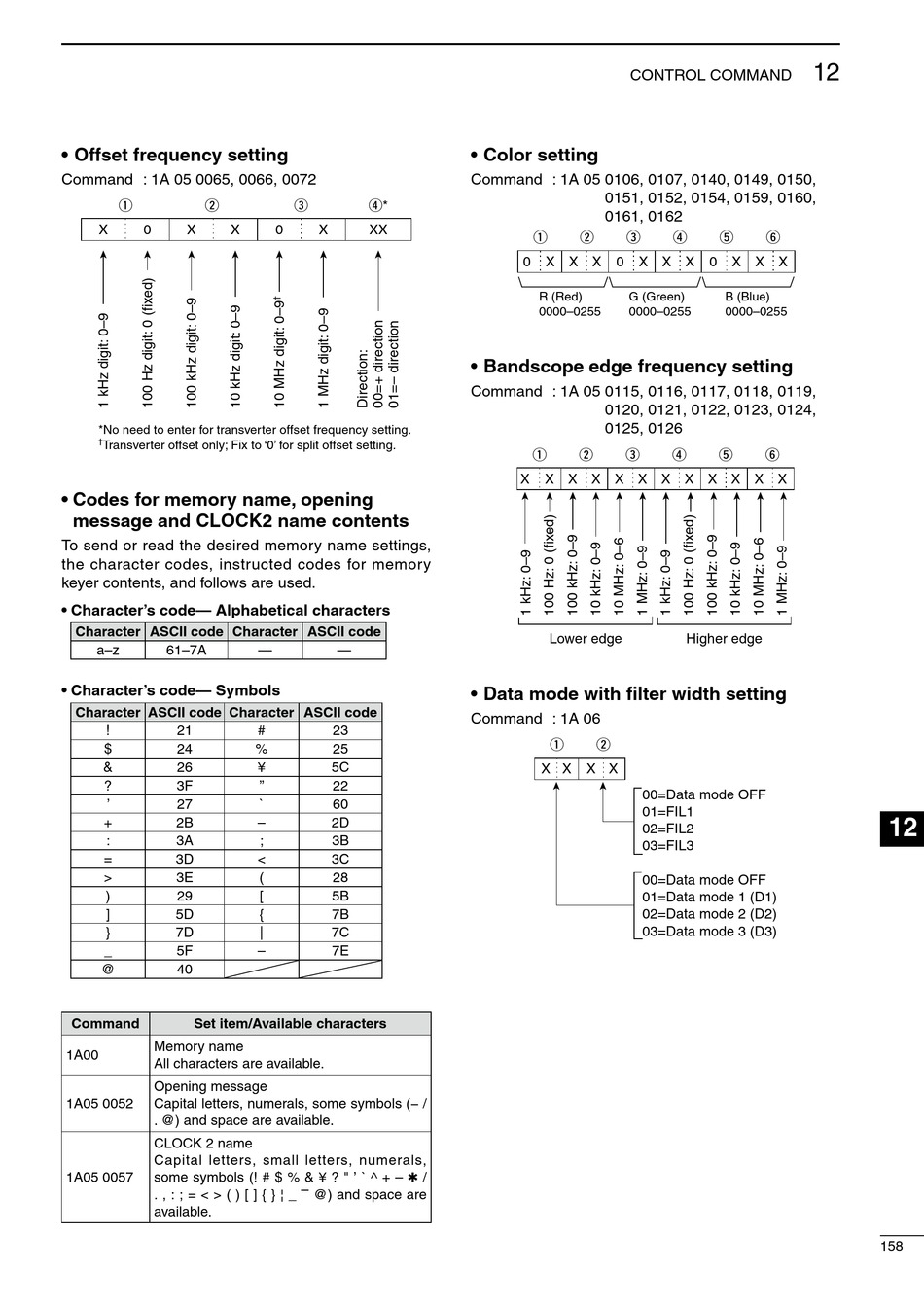

• Offset frequency setting
Command : 1A 05 0065, 0066, 0072
q w
X 0 X X
*No need to enter for transverter offset frequency setting.
† Transverter offset only; Fix to '0' for split offset setting.
• Codes for memory name, opening
message and CLOCK2 name contents
To send or read the desred memory name settngs,
the character codes, nstructed codes for memory
keyer contents, and follows are used.
• Character's code— Alphabetical characters
Character ASCII code Character ASCII code
a–z 61–7A
• Character's code— Symbols
Character ASCII code Character ASCII code
! 21
$ 24
& 26
? 3F
' 27
+ 2B
: 3A
= 3D
> 3E
) 29
] 5D
} 7D
_ 5F
@ 40
Command Set item/Available characters
Memory name
1A00
All characters are avalable.
Openng message
1A05 0052 Captal letters, numerals, some symbols (− /
. @) and space are avalable.
CLOCK 2 name
Captal letters, small letters, numerals,
1A05 0057 some symbols (! # $ % & ¥ ? " ' ` ^ + – ✱ /
. , : ; = < > ( ) [ ] { } ¦ _ – @) and space are
avalable.
e r*
0 X XX
— —
# 23
% 25
¥ 5C
" 22
` 60
– 2D
; 3B
< 3C
( 28
[ 5B
{ 7B
| 7C
– 7E
