D Data SavNg - Icom IC-7600 Instruction Manual

4
RECEIVE AND TRANSMIT

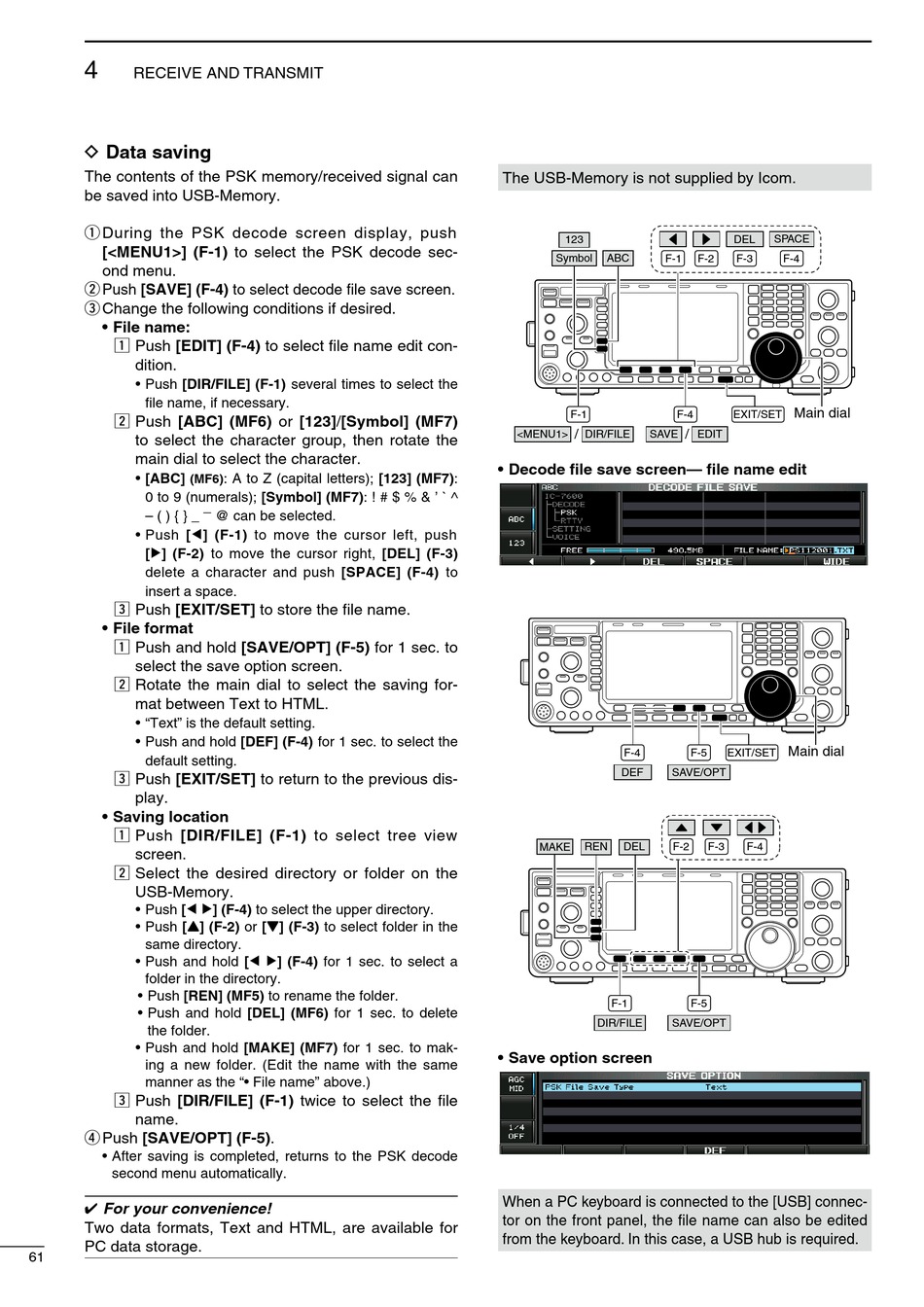

D Data saving
The contents of the PSK memory/receved sgnal can
be saved nto USB-Memory.
q Durng the PSK decode screen dsplay, push
[<MENU1>] (F-1) to select the PSK decode sec-
ond menu.
w Push [SAVE] (F-4) to select decode fle save screen.
e Change the followng condtons f desred.
• File name:
z Push [EDIT] (F-4) to select fle name edt con-
dton.
• Push [DIR/FILE] (F-1) several tmes to select the
fle name, f necessary.
x Push [ABC] (MF6) or [123]/[Symbol] (MF7)
to select the character group, then rotate the
man dal to select the character.
• [ABC]
(MF6)
0 to 9 (numerals); [Symbol] (MF7): ! # $ % & ' ` ^
_
– ( ) { } _
• Push [Ω] (F-1) to move the cursor left, push
[≈] (F-2) to move the cursor rght, [DEL] (F-3)
delete a character and push [SPACE] (F-4) to
nsert a space.
c Push [EXIT/SET] to store the fle name.
• File format
z Push and hold [SAVE/OPT] (F-5) for 1 sec. to
select the save opton screen.
x Rotate the man dal to select the savng for-
mat between Text to HTML.
• "Text" s the default settng.
• Push and hold [DEF] (F-4) for 1 sec. to select the
default settng.
c Push [EXIT/SET] to return to the prevous ds-
play.
• Saving location
z Push [DIR/FILE] (F-1) to select tree vew
screen.
x Select the desred drectory or folder on the
USB-Memory.
• Push [Ω ≈] (F-4) to select the upper drectory.
• Push [Y] (F-2) or [Z] (F-3) to select folder n the
same drectory.
• Push and hold [Ω ≈] (F-4) for 1 sec. to select a
folder n the drectory.
• Push [REN] (MF5) to rename the folder.
• Push and hold [DEL] (MF6) for 1 sec. to delete
the folder.
• Push and hold [MAKE] (MF7) for 1 sec. to mak-
ng a new folder. (Edt the name wth the same
manner as the "• Fle name" above.)
c Push [DIR/FILE] (F-1) twce to select the fle
name.
r Push [SAVE/OPT] (F-5).
• After savng s completed, returns to the PSK decode
second menu automatcally.
✔ For your convenience!
Two data formats, Text and HTML, are avalable for
PC data storage.
61
: A to Z (captal letters); [123] (MF7):
@ can be selected.
The USB-Memory s not suppled by Icom.
123
Symbol ABC
F-1
F-1
/
<MENU1> DIR/FILE SAVE
• Decode file save screen— file name edit
F-4
DEF SAVE/OPT
F-2
MAKE REN DEL
F-1
DIR/FILE SAVE/OPT
• Save option screen
When a PC keyboard s connected to the [USB] connec-
tor on the front panel, the file name can also be edted
from the keyboard. In ths case, a USB hub s requred.
DEL SPACE
F-2 F-3 F-4
Main dial
F-4 EXIT/SET
/
EDIT
Main dial
F-5 EXIT/SET
F-3 F-4
F-5
