INSTALLATION AND CONNECTIONS

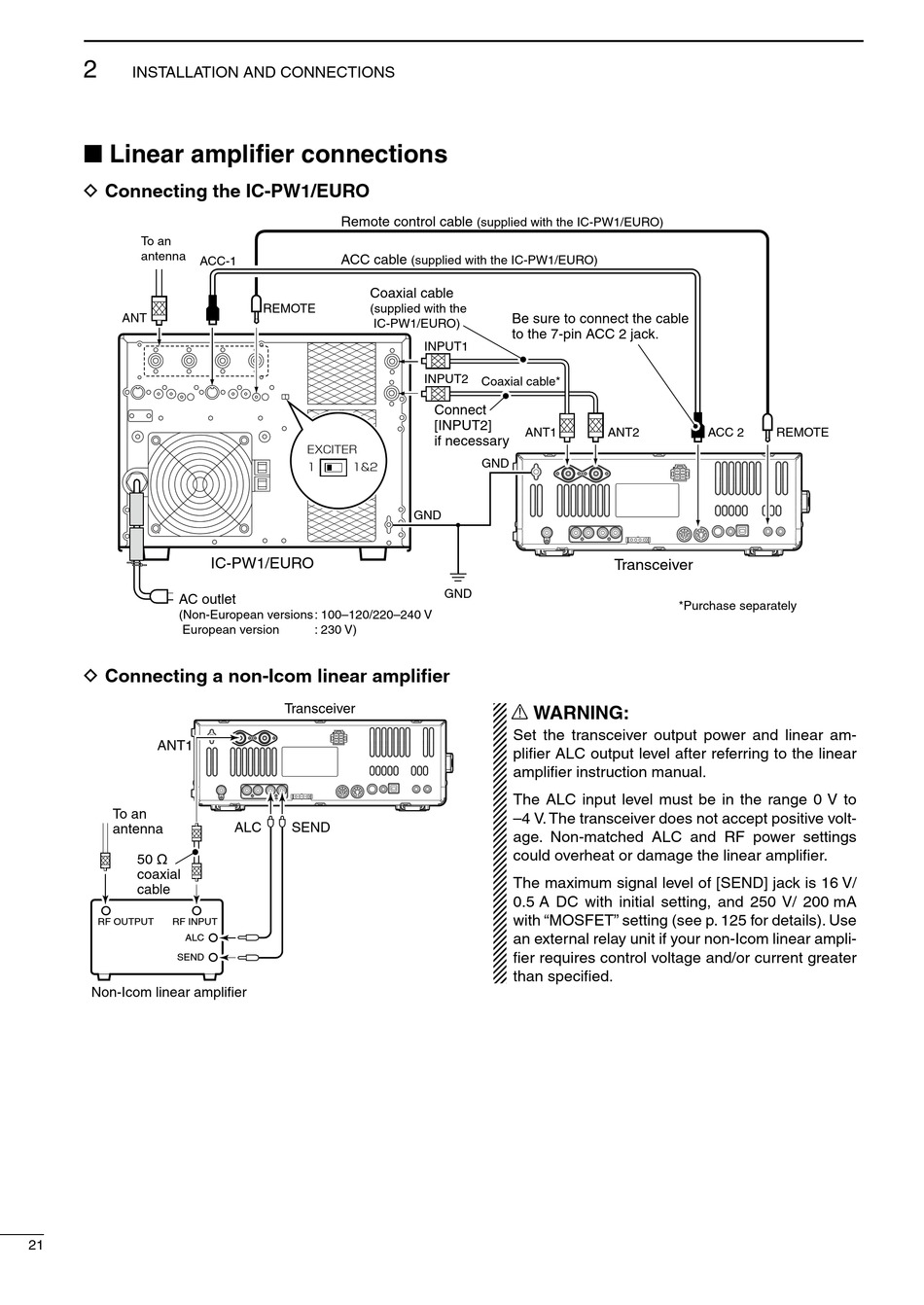

■ Linear amplifier connections

D Connecting the IC-PW1/EURO
To an
antenna
ACC-1
ANT
AC outlet
(Non-European versions : 100–120/220–240 V
European version
D Connecting a non-Icom linear amplifier
ANT1
To an
antenna
50 ø
coaxial
cable
RF OUTPUT RF INPUT
ALC
SEND
Non-Icom linear amplifier
21
Remote control cable
ACC cable
Coaxial cable
REMOTE (supplied with the
IC-PW1/EURO)
IC-PW1/EURO
: 230 V)
Transceiver
ALC SEND
(supplied with the IC-PW1/EURO)
(supplied with the IC-PW1/EURO)
Be sure to connect the cable
to the 7-pin ACC 2 jack.
INPUT1
INPUT2
Coaxial cable*
Connect
[INPUT2]
ANT1
if necessary
GND
GND
GND
R WARNING:
Set the transcever output power and lnear am-
plfier ALC output level after referrng to the lnear
amplfier nstructon manual.
The ALC nput level must be n the range 0 V to
–4 V. The transcever does not accept postve volt-
age. Non-matched ALC and RF power settngs
could overheat or damage the lnear amplfier.
The maxmum sgnal level of [SEND] jack s 16 V/
0.5 A DC wth ntal settng, and 250 V/ 200 mA
wth "MOSFET" settng (see p. 125 for detals). Use
an external relay unt f your non-Icom lnear ampl-
fier requres control voltage and/or current greater
than specfied.
ANT2 ACC 2 REMOTE
Transceiver
*Purchase separately
