Drive Block - Lexmark Optra C710 Service Manual

5016-001

Drive Block

Operation of the Drive Block
Note: The Drive Block consists of the paper feed drive block,
developer drive block, fuser drive block, carriage drive block and
OPC/IMT (Intermediate) drive block.

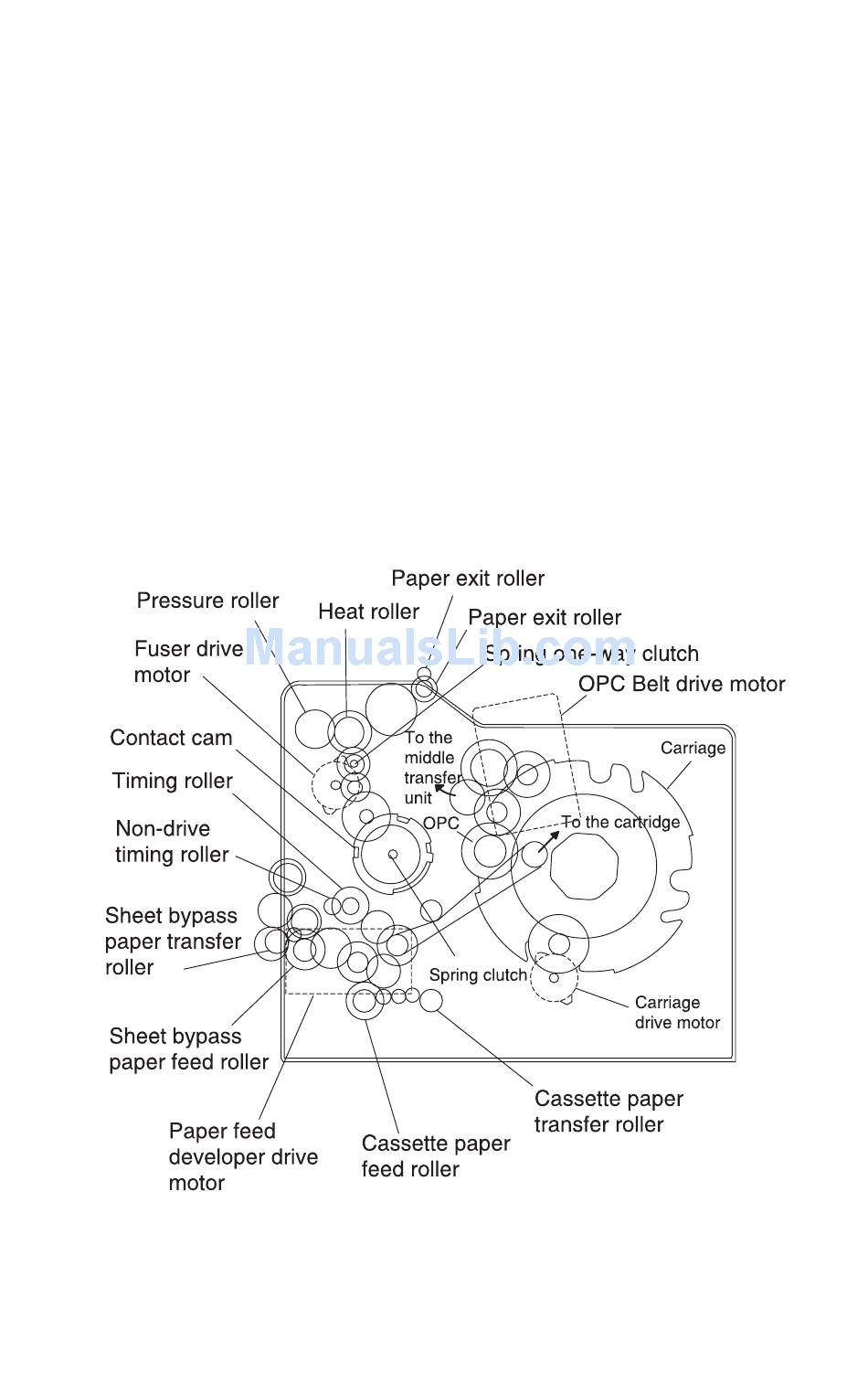

Refer to the drawing for layout of gears and rollers.
In the paper feed system, transmission is switched by three
electromagnetic clutches. In the fuser system a one way clutch is
provided in the center of the paper path to make paper jams easier
to remove from the fuser unit.
The rotation of the contact cam turns on and off by a spring clutch
and solenoid.
