10. To return the fax machine to its initial stand-by mode,
press the key:
11. If you want to move back one function, press the key:
S

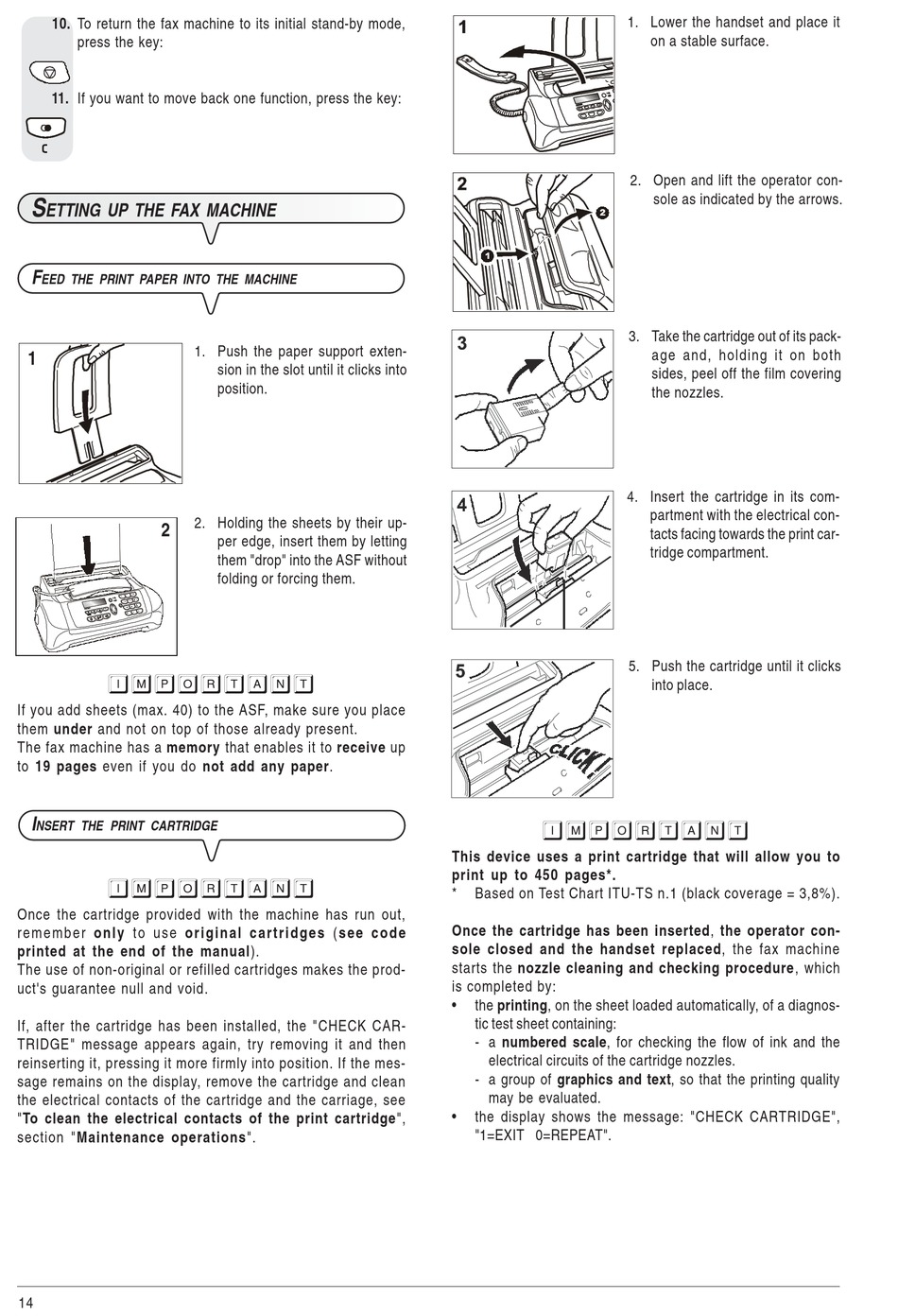

ETTING UP THE FAX MACHINE
F
EED THE PRINT PAPER INTO THE MACHINE
1
2
If you add sheets (max. 40) to the ASF, make sure you place
them under and not on top of those already present.
The fax machine has a memory that enables it to receive up
to 19 pages even if you do not add any paper.
I
NSERT THE PRINT CARTRIDGE
Once the cartridge provided with the machine has run out,
remember only to use original cartridges ( see code
printed at the end of the manual).
The use of non-original or refilled cartridges makes the prod-
uct's guarantee null and void.
If, after the cartridge has been installed, the "CHECK CAR-
TRIDGE" message appears again, try removing it and then
reinserting it, pressing it more firmly into position. If the mes-
sage remains on the display, remove the cartridge and clean
the electrical contacts of the cartridge and the carriage, see
"To clean the electrical contacts of the print cartridge",
section "Maintenance operations".
14
1. Push the paper support exten-
sion in the slot until it clicks into
position.
2. Holding the sheets by their up-
per edge, insert them by letting
them "drop" into the ASF without
folding or forcing them.
This device uses a print cartridge that will allow you to
print up to 450 pages*.
* Based on Test Chart ITU-TS n.1 (black coverage = 3,8%).
Once the cartridge has been inserted, the operator con-
sole closed and the handset replaced, the fax machine
starts the nozzle cleaning and checking procedure, which
is completed by:
• the printing, on the sheet loaded automatically, of a diagnos-
tic test sheet containing:
- a numbered scale, for checking the flow of ink and the
electrical circuits of the cartridge nozzles.
- a group of graphics and text, so that the printing quality
may be evaluated.
• the display shows the message: "CHECK CARTRIDGE",
"1=EXIT 0=REPEAT".
1. Lower the handset and place it
on a stable surface.
2. Open and lift the operator con-
sole as indicated by the arrows.
3. Take the cartridge out of its pack-
age and, holding it on both
sides, peel off the film covering
the nozzles.
4. Insert the cartridge in its com-
partment with the electrical con-
tacts facing towards the print car-
tridge compartment.
5. Push the cartridge until it clicks
into place.
