Storage and media devices

The server supports up to eight hot plug SAS HDDs, and one optical (SATA DVD+RW) drive, with
LEDs that indicate activity and device statuses.

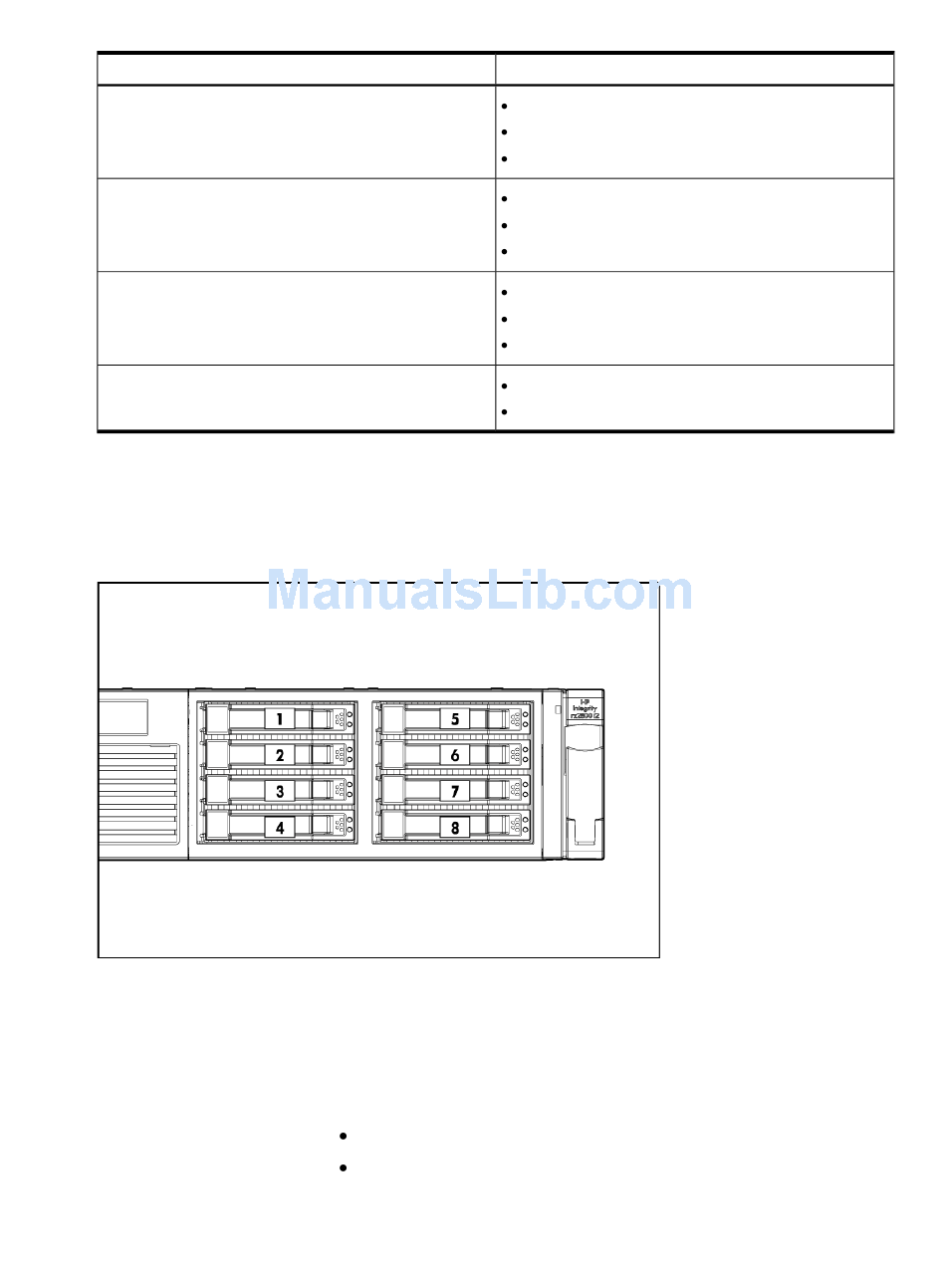

Figure 8 SAS device numbers

Hard drive LEDs

The hard drives have two LEDs per driveSee
Drive activity LED
Drive status LED
18 Overview
State
Figure 9:
The drive activity LED is solid green during normal operation and
flashes green when a drive is accessed.
The drive status LED can display amber or blue.
Amber indicates a warning, or failure condition.
Blue is a locator LED that identifies a particular disk drive.
Various software utilities, such as online diagnostics or SAS disk drive
configuration tools, can activate the locator LED.
Off = Server in standby or power capping disabled
Flashing amber = Power cap exceeded
Green = Power capping configured
Off = No link to network
Flashing green = Network link and activity
Green = Network link
Green = Normal
Amber = System degraded
Red = System critical
Off = Component health is assumed good
Amber = Component health last known to be bad
